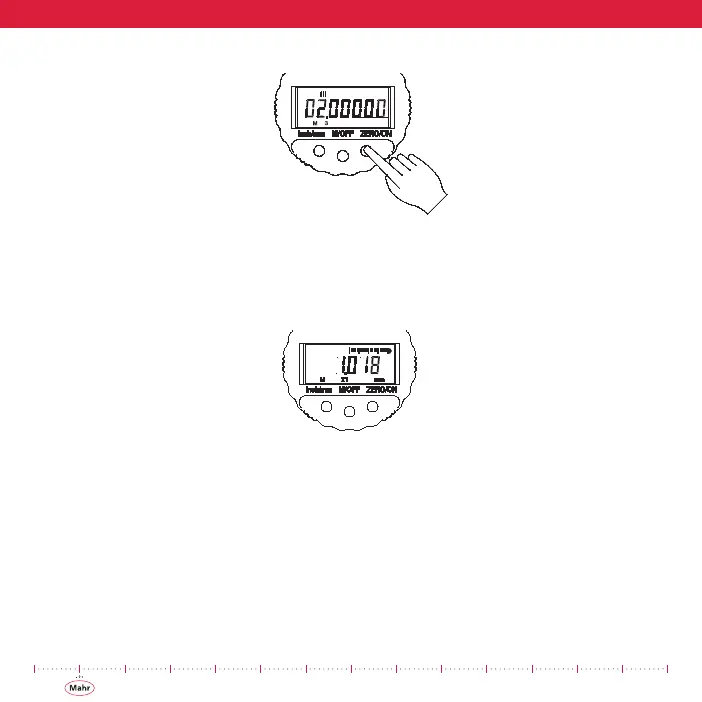

5) Change the selected character by pressing and releasing ZERO/ON
(Figure 12).
Figure 12 - Changing the Digital Character
6) To return to the gaging mode, press and release M/OFF once. If a multiplier
other than 01.000 has been entered, an “M” will be visible in the display
(Figure 13).
Figure 13 - Multiplier Ratio
5.7 Changing Operation to Difference Mode (M1 X1)
1) Simultaneously press and hold M/OFF (1), then quickly press and release inch/
mm (2) once to enable the setup mode. (M1 icon appears in the lower left cor-
ner of the LCD) (Figure 3).
2) Continue to press and release M/OFF until the M13 icon is displayed, signifying
the unit is in the selectable resolution mode.
3) Press and hold M/OFF for 2 seconds until the M3 icon appears signifying that
the unit is in the Multiplier Mode (Default Value 1.000).
To Next Page
