35
6.0 User Operation
6.1 Measurement Direction [S]
The µMaxµm II Series indicator has two measuring directions; normal and reverse. When
set for reverse operation an R icon is displayed on the indicator. The reverse operation is
typically used for ID (internal diameter) type measurements.

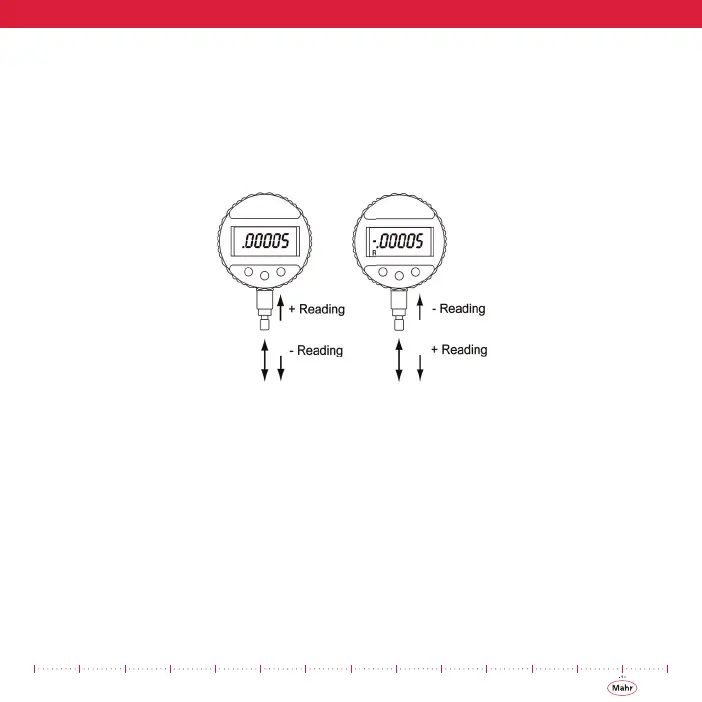

Figure 26 - Measuring Directions
6.2 Analog Magnification [S]
The µMaxµm II Series indicator has five analog magnification settings; X1, X5, X10, X50,
and no bargraph display. The icon on the display indicates which magnification is in use.
