Malaguti XTM 50 - Controls; Start Switch;Keys 2

A
14 02.04
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Getting to know your motorbike
SECTION 2
A - CHASSIS
14
15
17
20
21
22
19
F.5i
F.6i
23
1816
24
25

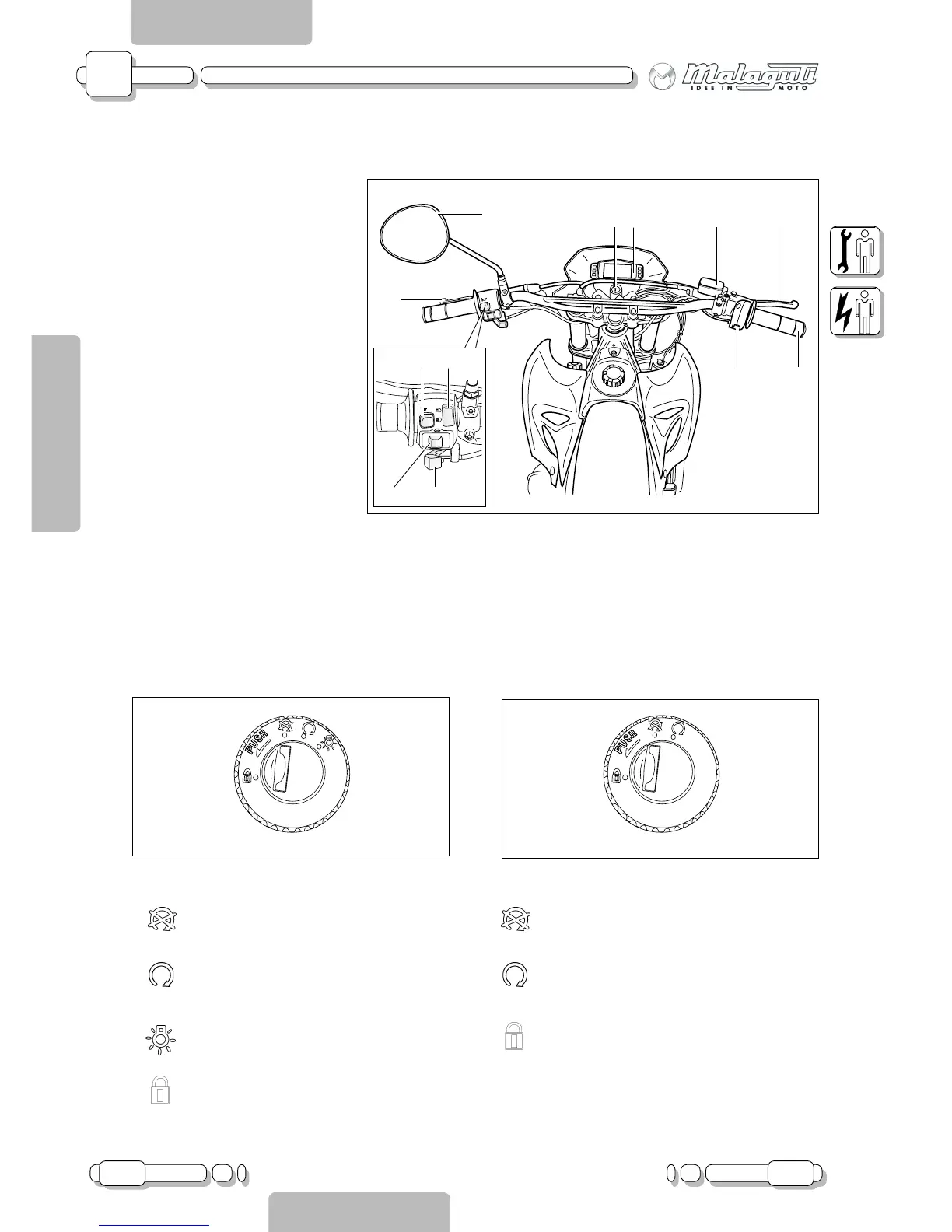

CONTROLS
Controls/Instruments
14. Main switch
15. Clutch lever
16. Turn signal switch
17. Digital, multifunction instrument
board
18. Manual starter lever
19. Front brake pump
20. Mode switch
21. Front brake lever
22. Throttle grip
23. Rear-view mirror (*)
24. Horn switch
25. Low beam/high beam light
switch (**)
(*) GREAT BRITAIN version: the rear view mirror is on the right hand side of the handlebar.
SWITZERLAND version: there are two rear view mirrors, one on the right and one on the left hand side of the handlebar.
(**) SWITZERLAND version only.
START SWITCH/KEYS
• The main switch controls the ignition circuit and steering lock.
Up to chassis n° 7086713:
: all electrical contacts are disconnected.
: the contacts are activated; the engine can
start.
: lights are on
: the steering lock is on.
From chassis n° 7086714:
: all electrical contacts are disconnected.
: the contacts are activated; the engine can
start and the lights come on.
: the steering lock is on.
