Malaguti XTM 50 - DISASSEMBLY: TAIL LIGHT AND REAR WING; TAIL LIGHT DISASSEMBLY; REAR WING REMOVAL

A
24 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.13
A
F.13b
V2
F.15
F.14
V4
V2
F
V3
F.14b

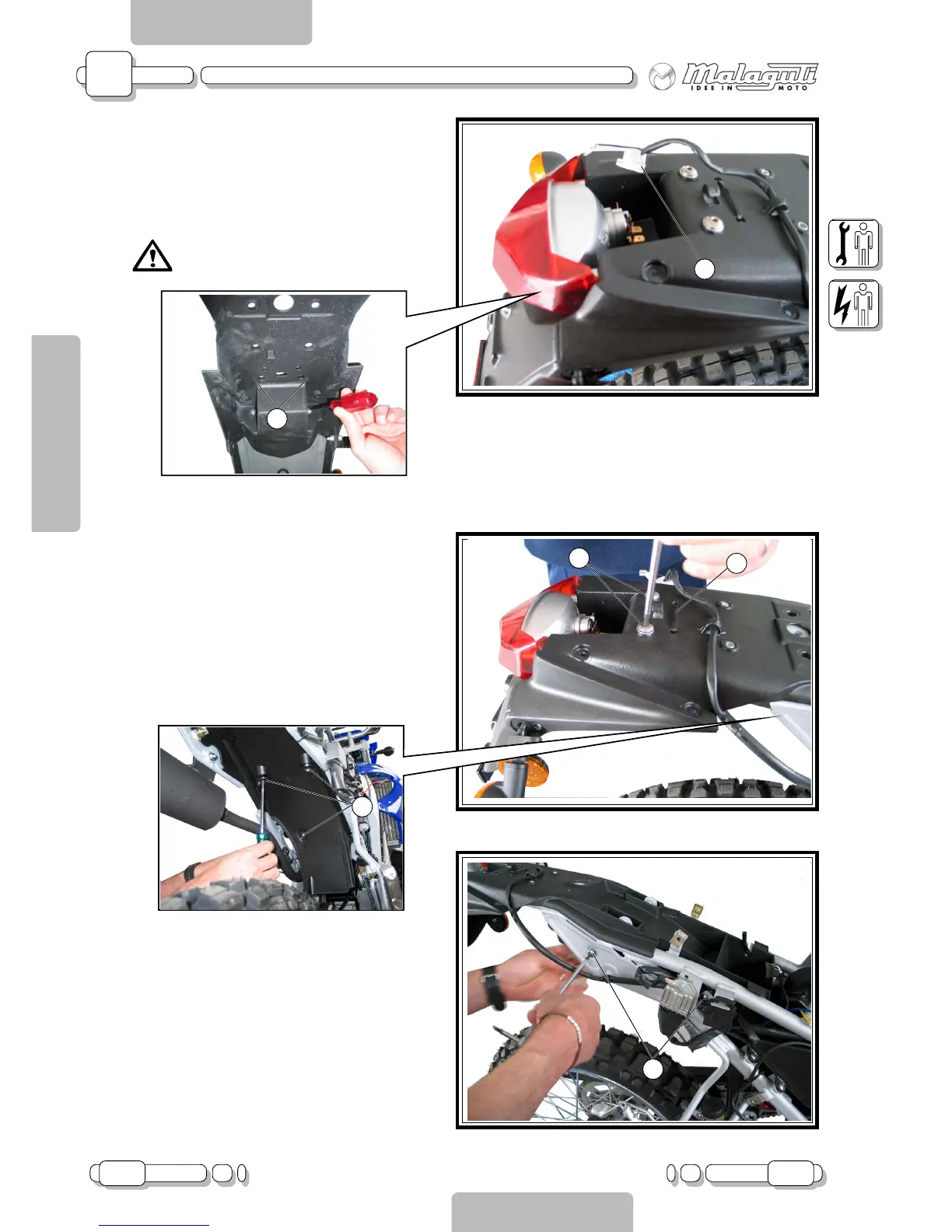

TAIL LIGHT
• (Remove seat and tail section)
Disconnect the cables (A - F.13) and undo the
screws (V2 - F.13b).
Caution!!! When refitting, pay attention
to the Fast-on sequence; (see wiring
diagram).
REAR WING
• (Remove seat, side casings and tail section)
Cut the cable clamp (F - F.14).
Undo the screws (V2 - F.14) and the screws (V4 -
F.15), on both sides.
Undo the screws (V3 - F.14b).
