Malaguti XTM 50 - DISASSEMBLY: CLUTCH AND HANDLEBAR; CLUTCH CONTROL REMOVAL; HANDLEBAR REMOVAL; FRONT BRAKE CALIPER REMOVAL

A
34 02.04
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
V2b
S
F
V2a
F.41
F.42
V4
F.43
V2
V
T
A
L

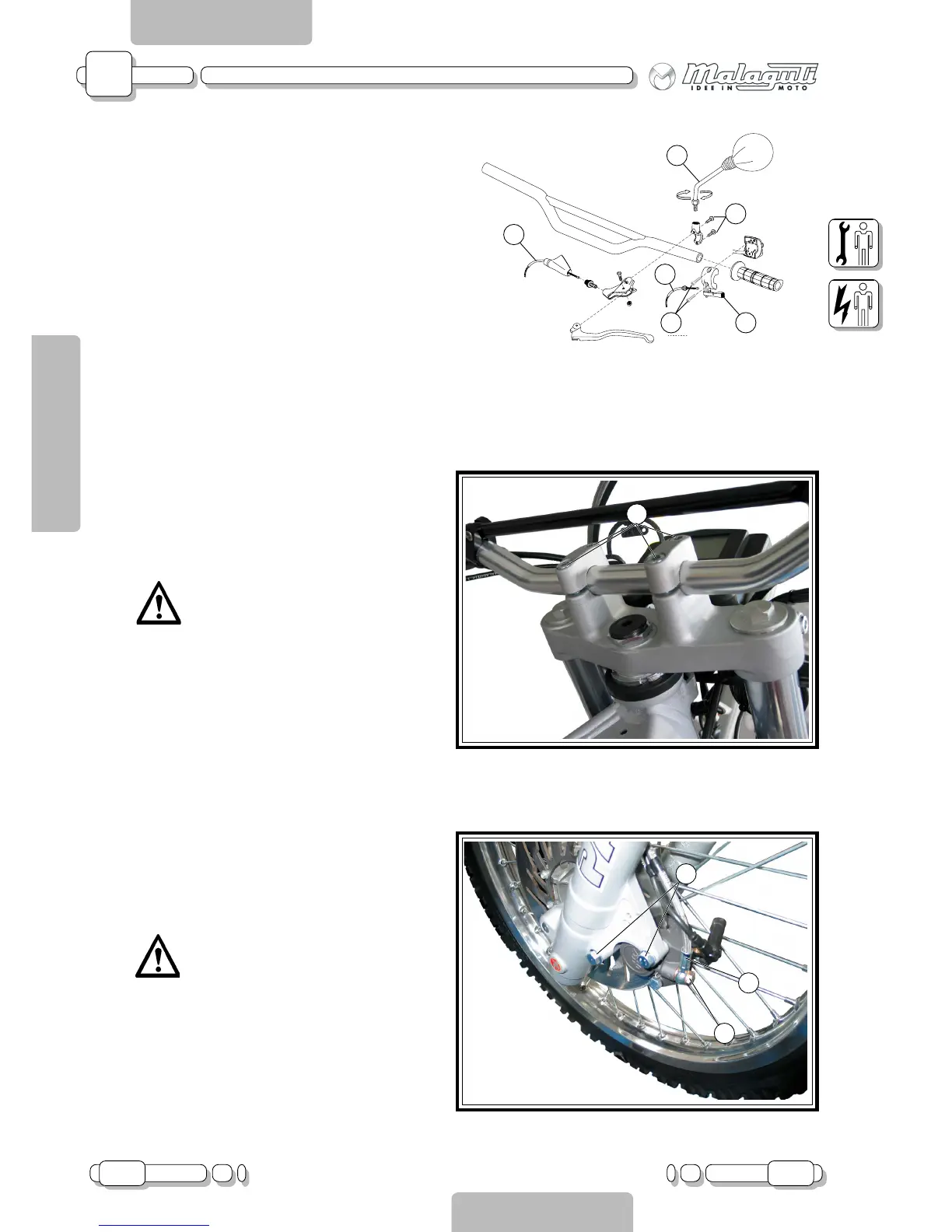

CLUTCH CONTROL
Detach the clutch cable (F - F.41) and the starter
cable (S - F.41) and remove the mirror (A - F.41).
Loosen the screws (V2b - F.41), remove the start-
er lever body (L - F.41) and the left hand knob.
Loosen the screws (V2a - F.41) and remove the
left hand control.
HANDLEBAR
• (Remove right and left controls)
Loosen the screws (V4 - F.42), to remove the U-
bolts holding the handlebar in place.
Caution!!! When refitting, remember
to tighten the front screws first.
FRONT BRAKE CALIPER
Loosen the screws (V2 - F.43) and disconnect the
pipe (T - F.43), after loosening the hydraulic trans-
mission screw (V - F.43).
Caution!!! When refitting, remember to
replace the copper gaskets and bleed
using the relevant equipment.
