Malaguti XTM 50 - DISASSEMBLY: ELECTRICAL COMPONENTS; FILTER CARTRIDGE REMOVAL; REGULATOR REMOVAL; FLASHLIGHT REMOVAL

A
05.03 25
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.16
F.17
F.18
I
V
C
V2
M

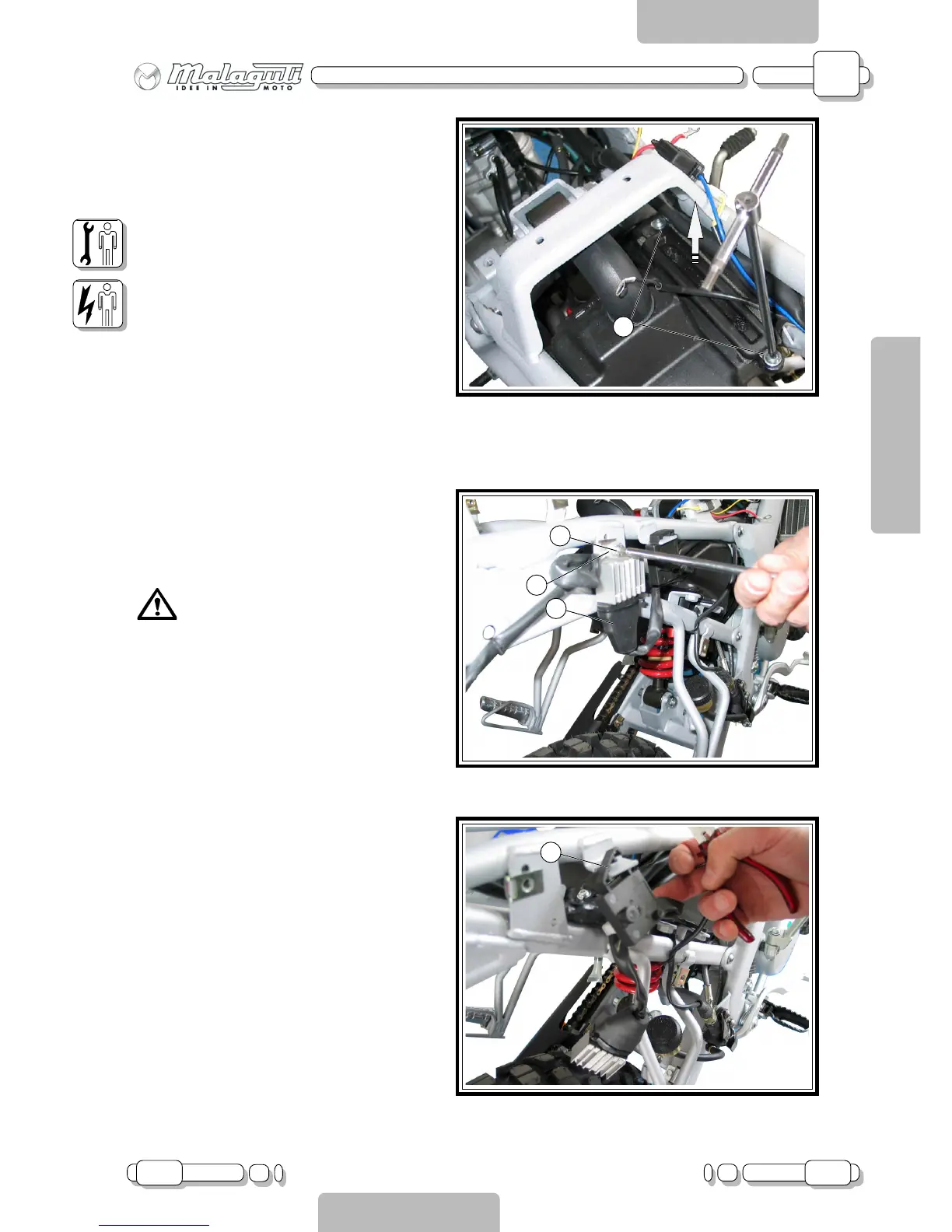

FILTER CARTRIDGE
• (Remove seat and battery)
Undo the screws (V2 - F.16) and remove the filter
cartridge.
REGULATOR
• (Remove seat and rear right hand casing)
Detach the connector (C - F.17) and undo the screw
(V - F.17).
Caution!!! When refitting, remember
to reconnect the earth cables (M -
F.17).
FLASHLIGHT
• (Remove seat and rear right hand casing)
Detach the connector and open the snap lock (I -
F.18).
