A
40 02.04
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.55
D
F.54
V
3

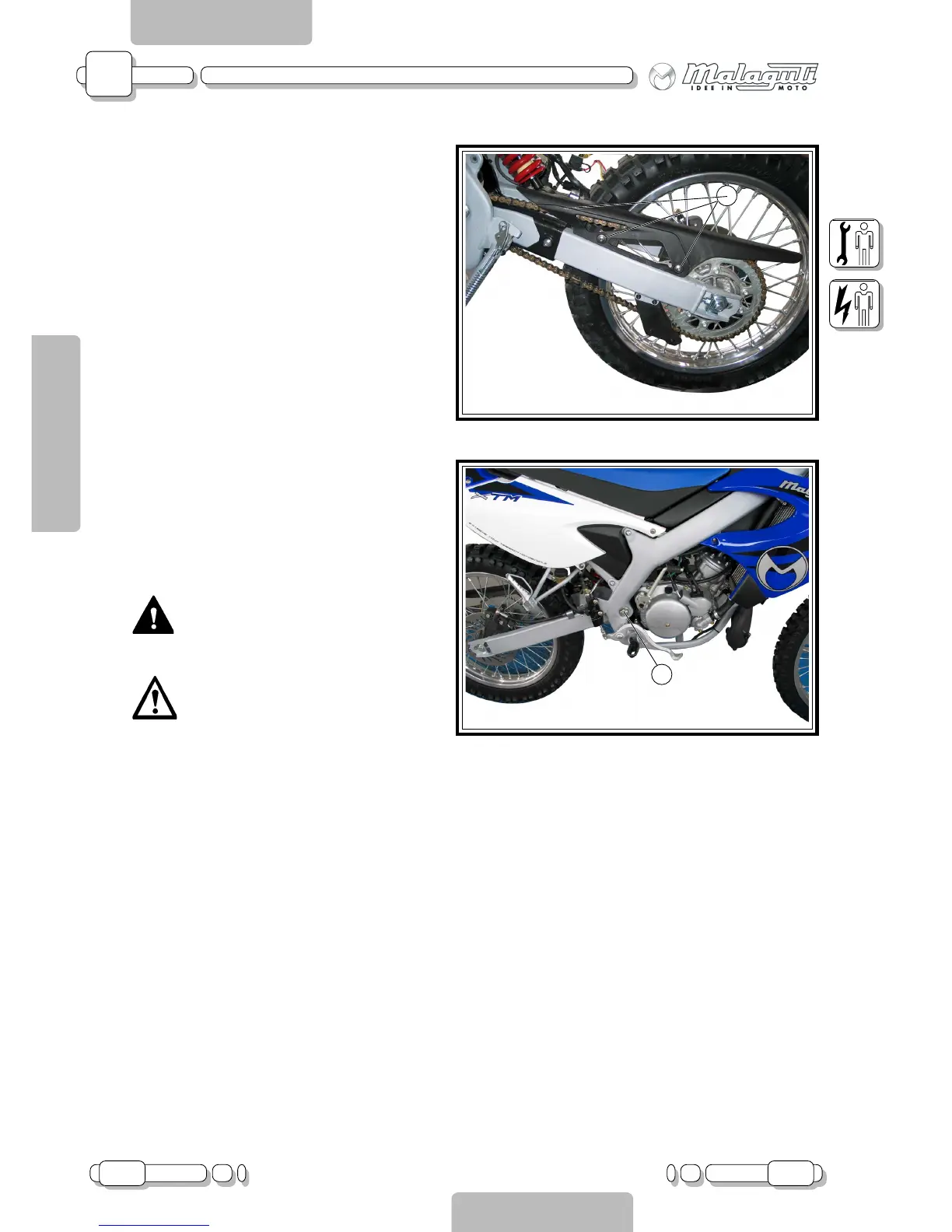

CHAIN CRANKCASE
Undo the screws (V3 - F.54).
FORK
• (Remove rear wheel, rear brake caliber, shock
absorber, chain crankcase)
Unscrew the nut (D - F.55) and remove the pin.
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Caution!!! When refitting, follow the in-
structions provided in section 2, in “AD-
JUSTING TRANSMISSION CHAIN
TIGHTNESS”
