Malaguti XTM 50 - DISASSEMBLY: FRONT WHEEL AND DISC; FRONT WHEEL REMOVAL; FRONT BRAKE DISC REMOVAL

A
36 02.04
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.45
P
F.46
V6
V2
F.45b

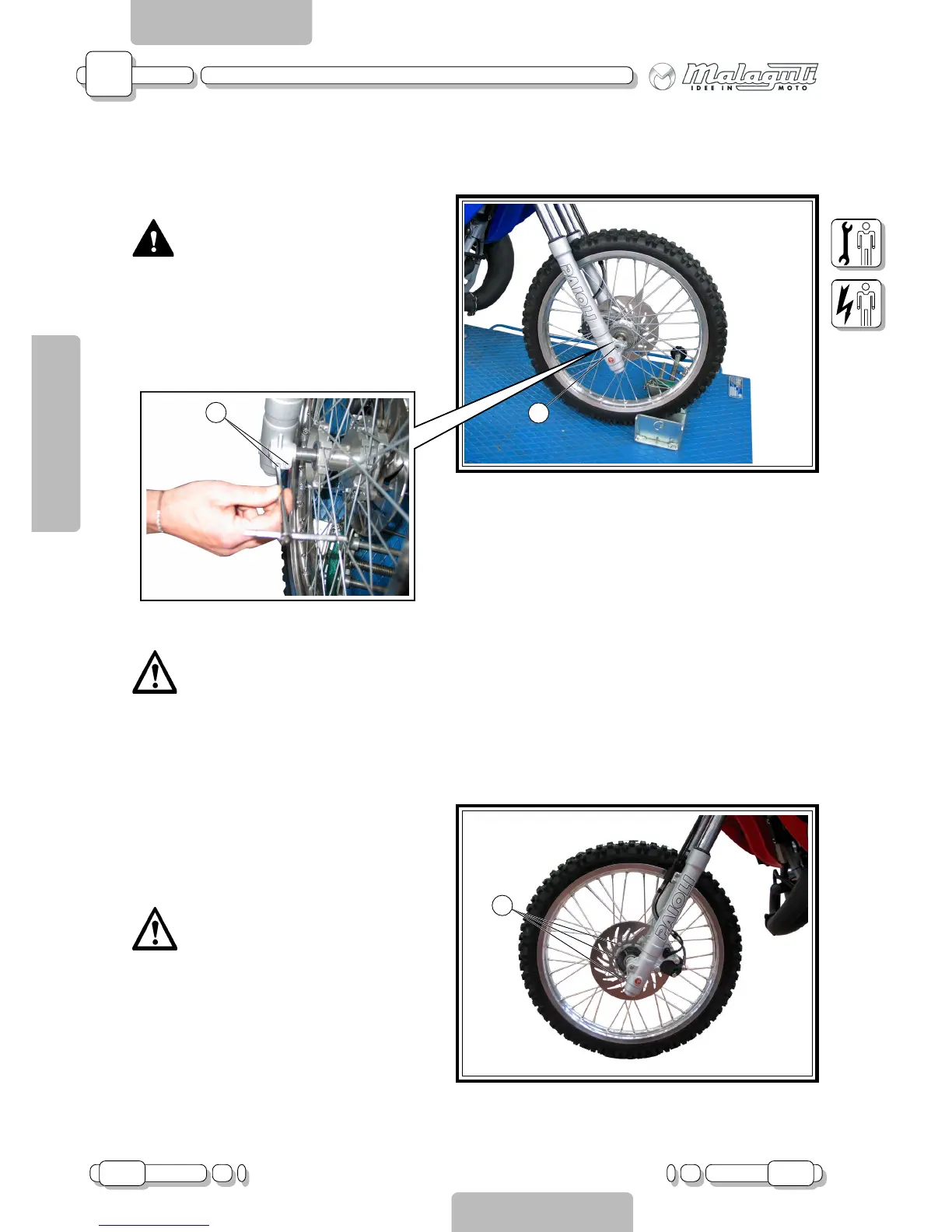

FRONT WHEEL
• (Remove front caliper and speedometer sensor)
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Loosen the screw (V2 - F.45b).
Unscrew the pin (P - F.45) and remove it.
Remove the front wheel.
Caution!!! When refitting, after tighten-
ing the pin (P - F.45), remember to the
tighten the screws (V2 - F.45b).
FRONT BRAKE DISC
• (Remove front wheel)
Loosen the screws (V6 - F.46)
Caution!!! When refitting, use thread-
locker.
