Malaguti XTM 50 - DISASSEMBLY: FORK COMPONENTS; FORK HEAD REMOVAL; FORK REMOVAL; FOOT RESTS REMOVAL

A
02.04 37
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS

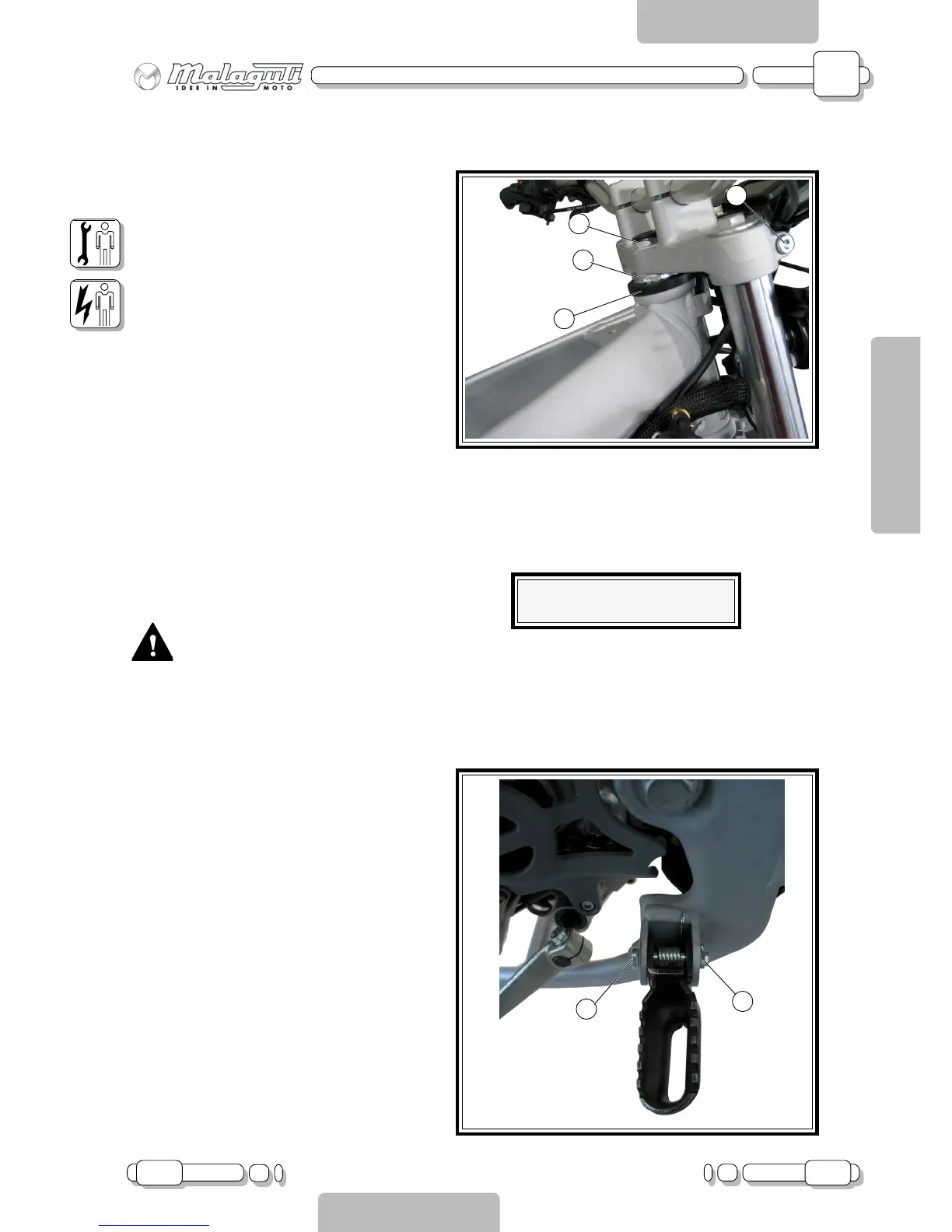

F.47
F.48
G
P
C
D
V2
P
FORK HEAD
• (Remove front indicators, guard, digital instru-
ment board and handlebar)
Unscrew the Allen screws (V2 - F.47)
Unscrew the nut (D - F.47) and remove the fork
head.
FORK
• (Remove front indicators, guard, digital instru-
ment board, front wheel, speedometer sensor, front
caliper, handlebar and fork head)
Unscrew the ring nut (G - F.47), remove the dust
guard (P - F.47) and pull out the fork.
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
FOOT RESTS (right and left)
Remove the split pin (C - F.48), pull out the pin (P
- F.48) and remove the spring.
Amount of oil per stem: 350cc.
