Malaguti XTM 50 - DISASSEMBLY: REAR BRAKE AND WHEEL; REAR BRAKE LEVER REMOVAL; REAR BRAKE PUMP AND OIL TANK; REAR WHEEL REMOVAL

A
38 02.04
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.49
F.50
F.51
V
P
A
A
V
V
2
F
I

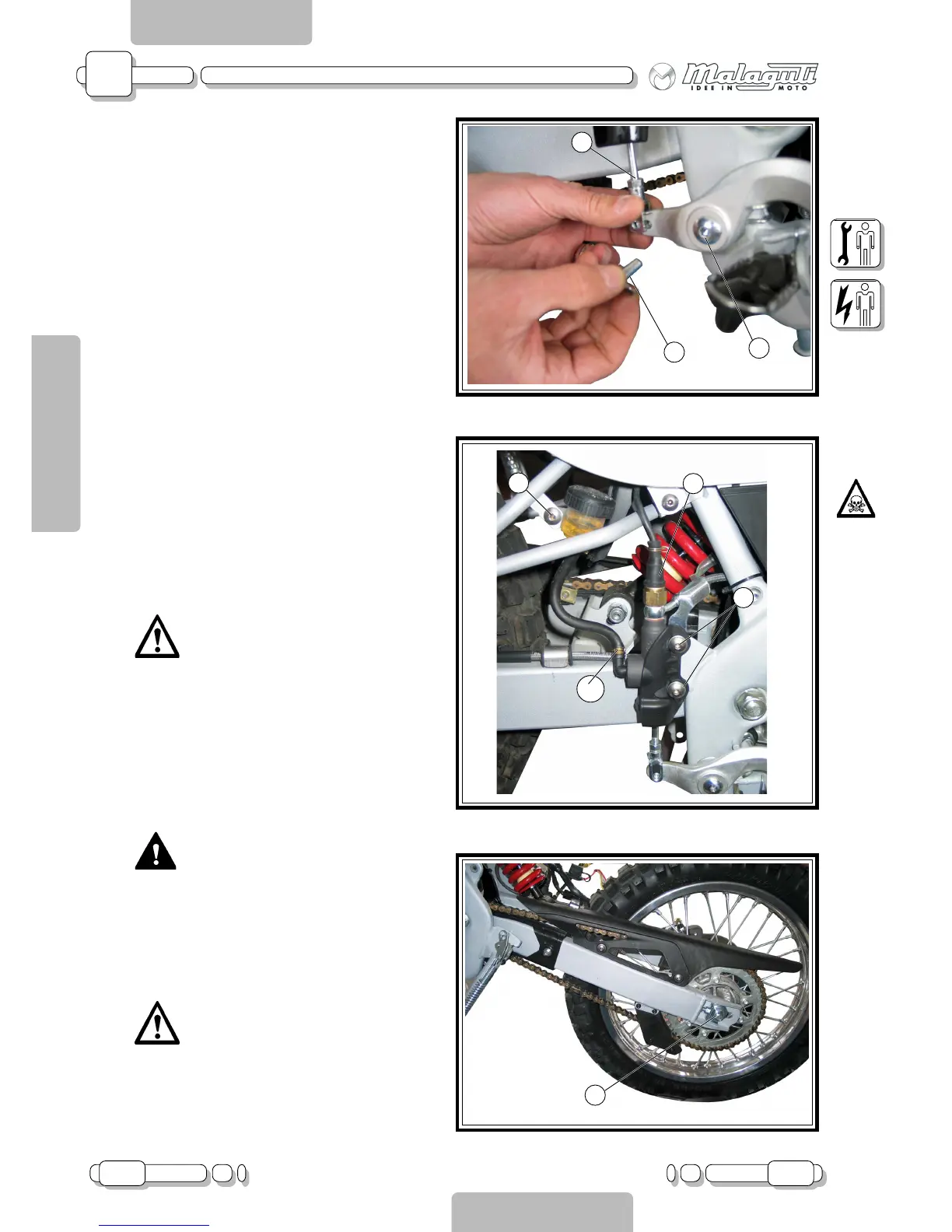

REAR BRAKE LEVER
Remove the stick (A - F.49), by pulling out the pin
(P - F.49); loosen the screw (V - F.49) and remove:
the pedal, the spring, the bushing and the plastic
washer.
REAR BRAKE PUMP AND REAR BRAKE OIL
TANK
Remove the clamp (F - F.50) and empty the con-
tents of the oil circuit into a container. Loosen the
screw (V - F.50) and remove the rear brake oil tank.
To remove the pump: disconnect the cable from
the rear stop switch (I - F.50) and unscrew it. Undo
the fixing screws (V2 - F50), paying attention to
the eye adjustment plaque.
Caution!!! When refitting, remember
to replace the copper gaskets and
bleed using the relevant equipment.
REAR WHEEL
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Unscrew the nut (A - F.51), loosen the chain tight-
ening adjusters, release the chain from the gear
wheel and remove the pin (P - F.52).
Caution!!! When refitting, follow the
instructions provided in section 2, in
“ADJUSTING TRANSMISSION CHAIN
TIGHTNESS”
