A
05.03 29
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.28
V2
V
F.28b
B
D
S
F

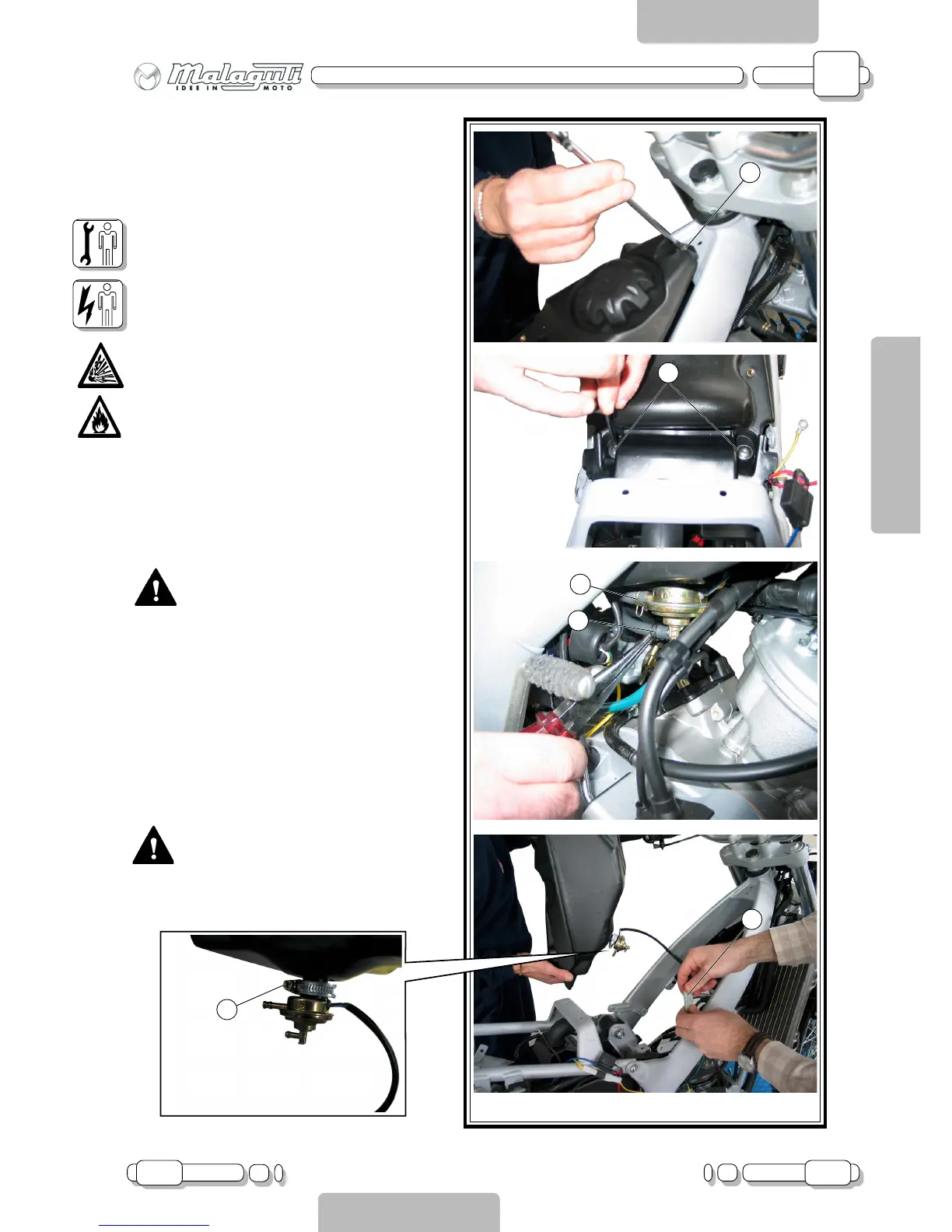

FUEL TANK
• (Remove seat and top screw of the front con-
veyors)
Undo the front fixing screw (V - F.28) and the rear
fixing screws (V2 - F.28).
Disconnect the vacuum pipe (D - F.28) and the
petrol pipe (B - F.28) from the fuel cock.
Raise the tank and detach the fuel probe connec-
tor (S - F.28)
CAUTION!!!
Empty the tank.
FUEL COCK
• (Remove seat and fuel tank)
CAUTION!!!
Make sure the tank is empty.
Loosen the clamp (F - F.28b) and remove the cock.
To Next Page
