Malaguti XTM 50 - DISASSEMBLY: CHASSIS AND AIR FILTER BOX; REAR CHASSIS DISASSEMBLY; AIR FILTER SUCTION BOX REMOVAL

A
26 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.19
V4
F.20
F.21
F.21b
V3
V3
F

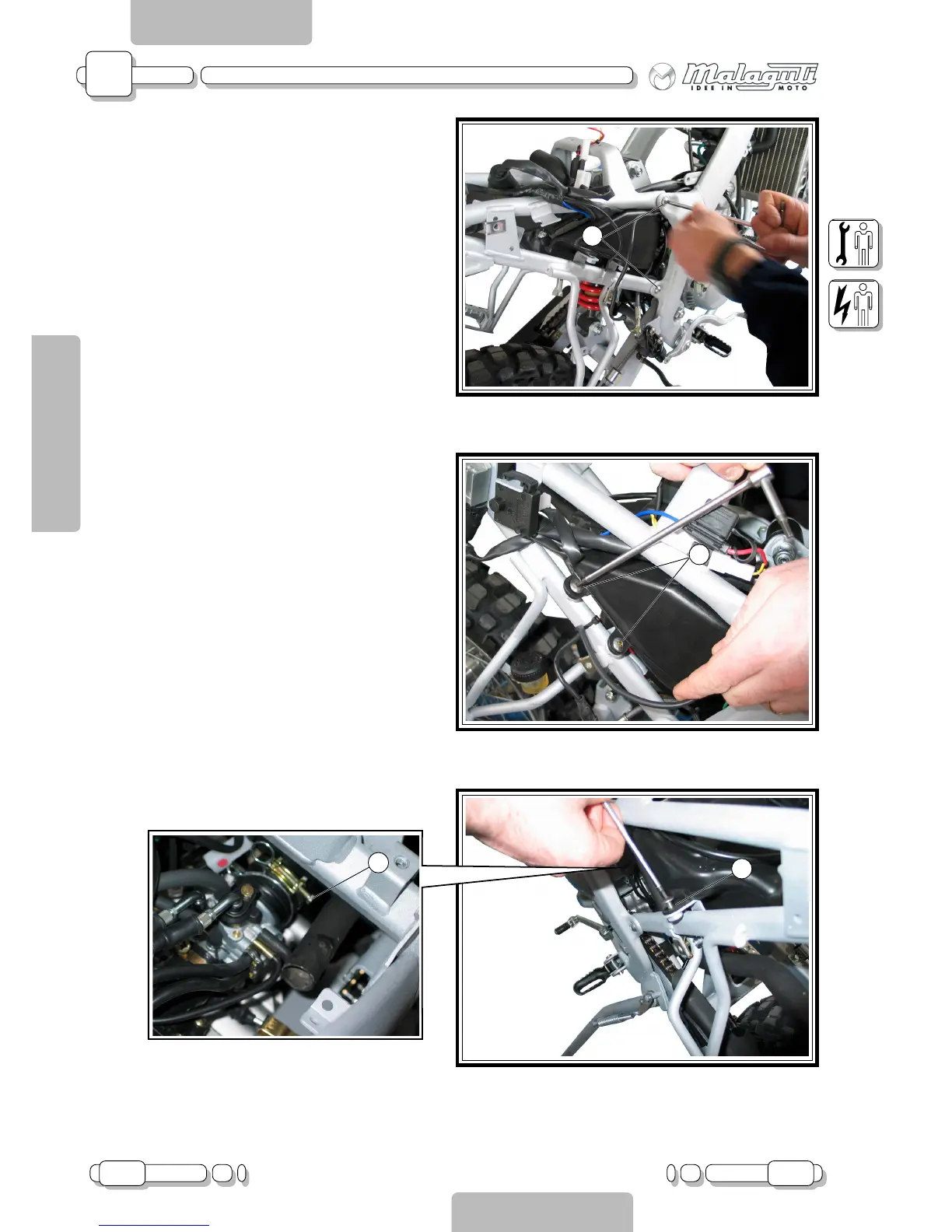

REAR CHASSIS
• (Remove seat, rear side casings, tail section,
shock absorber guard, battery, rear brake fluid
tank,regulator, flashlight and silencer).
Undo the screws (V4 - F.19).
AIR FILTER SUCTION BOX
• (Remove seat, rear side casings, tail section,
battery, rear wing, silencer and rear chassis).
Undo the screws (V3 - F.20 - F.21) and loosen the
clamp (F - F.21b).
