Malaguti XTM 50 - DISASSEMBLY: SEAT, CASINGS, AND TAIL SECTION; SEAT REMOVAL; REAR SIDE CASINGS REMOVAL; TAIL SECTION DISASSEMBLY

A
20 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F. 1
V
V4
F. 2
V2
F. 3
V4
F. 3b

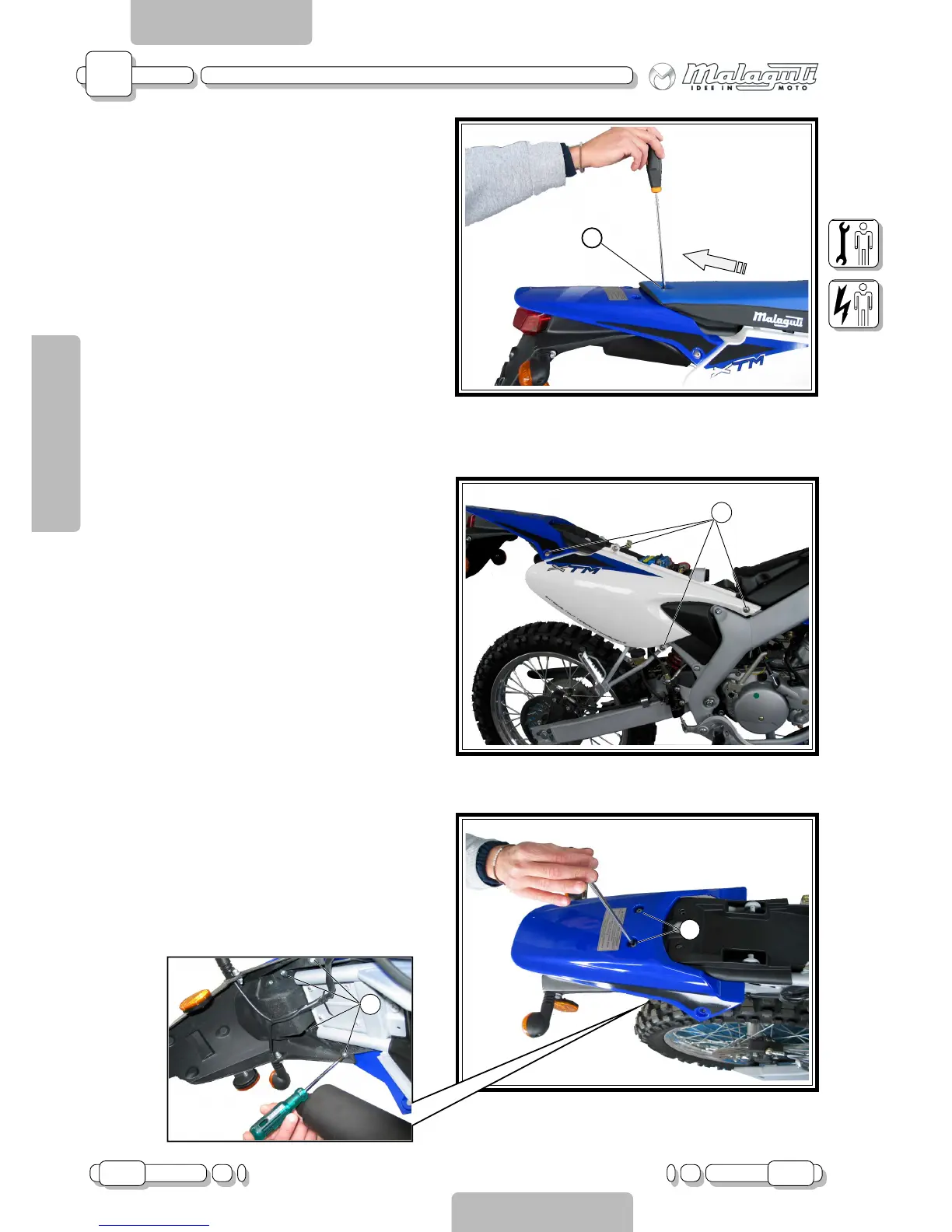

SEAT
Loosen the screw (V - F.1) and release the seat
from the chassis. Pull it out rearwards.
REAR SIDE CASINGS (rh / lh)
• (Remove seat)
Loosen the screws (V4 - F.2) and remove the rear
side casing (left or right).
TAIL SECTION
• (Remove seat and left/right rear side casing)
Undo fixing screws (V2 - F.3) and the screws (V4 -
F.3b).
