Malaguti XTM 50 - DISASSEMBLY: BATTERY AND INDICATORS; BATTERY REMOVAL; REAR INDICATORS REMOVAL

A
05.03 23
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.10
A
F.10b
C
B
D
F.11
F.12
V
V1

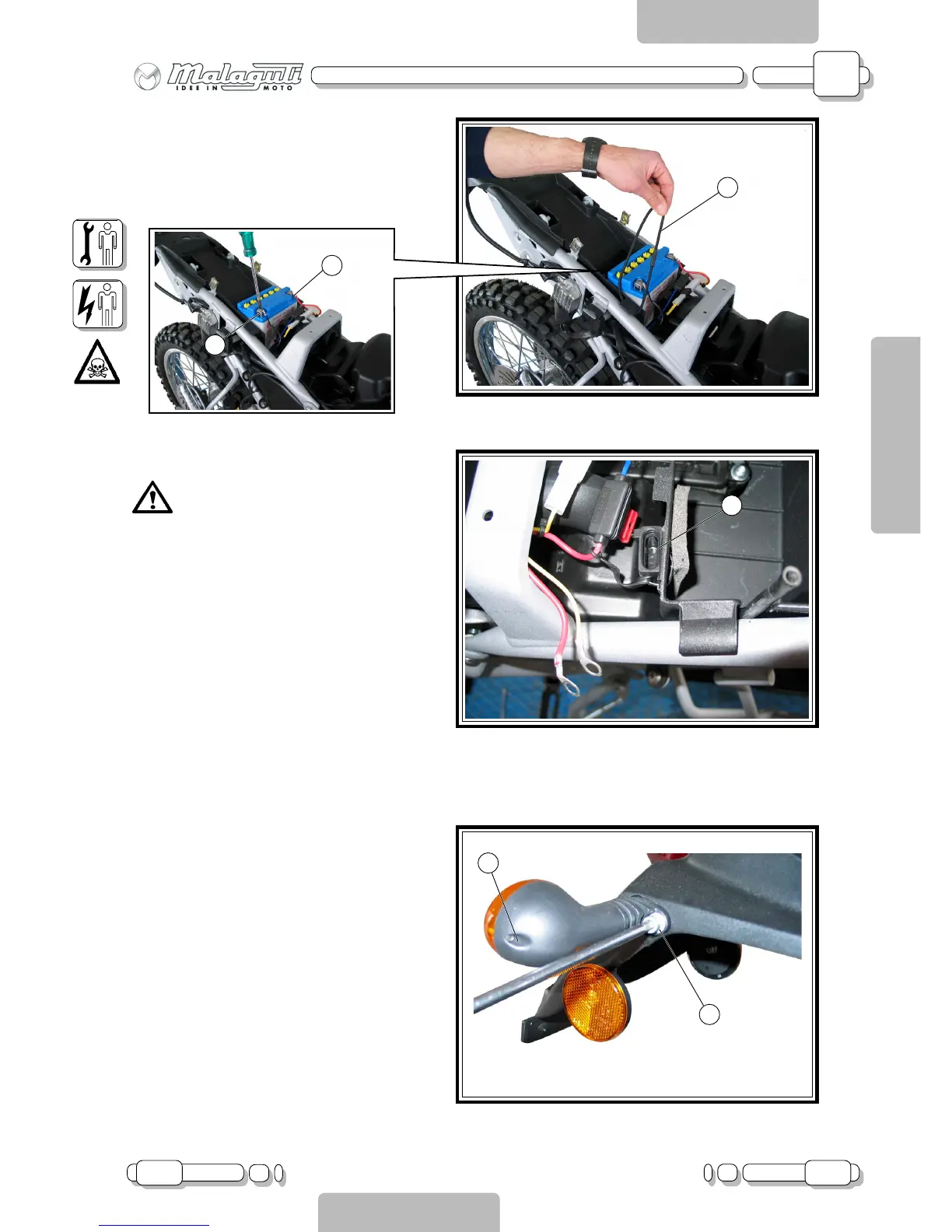

BATTERY
• (Remove seat)
Remove the elastic band (A - F.10) and detach the
battery cables (B and C - F.10b).
Release the fuse carrier (D - F.11) from the clamp.
Caution!!! When refitting the battery,
pay attention to the exhaust pipe.
REAR INDICATORS
Undo the screw (V - F.1).
Remove the glass cover and detach the lamp sock-
et cables.
Undo the fixing screw (V - F. 12).
