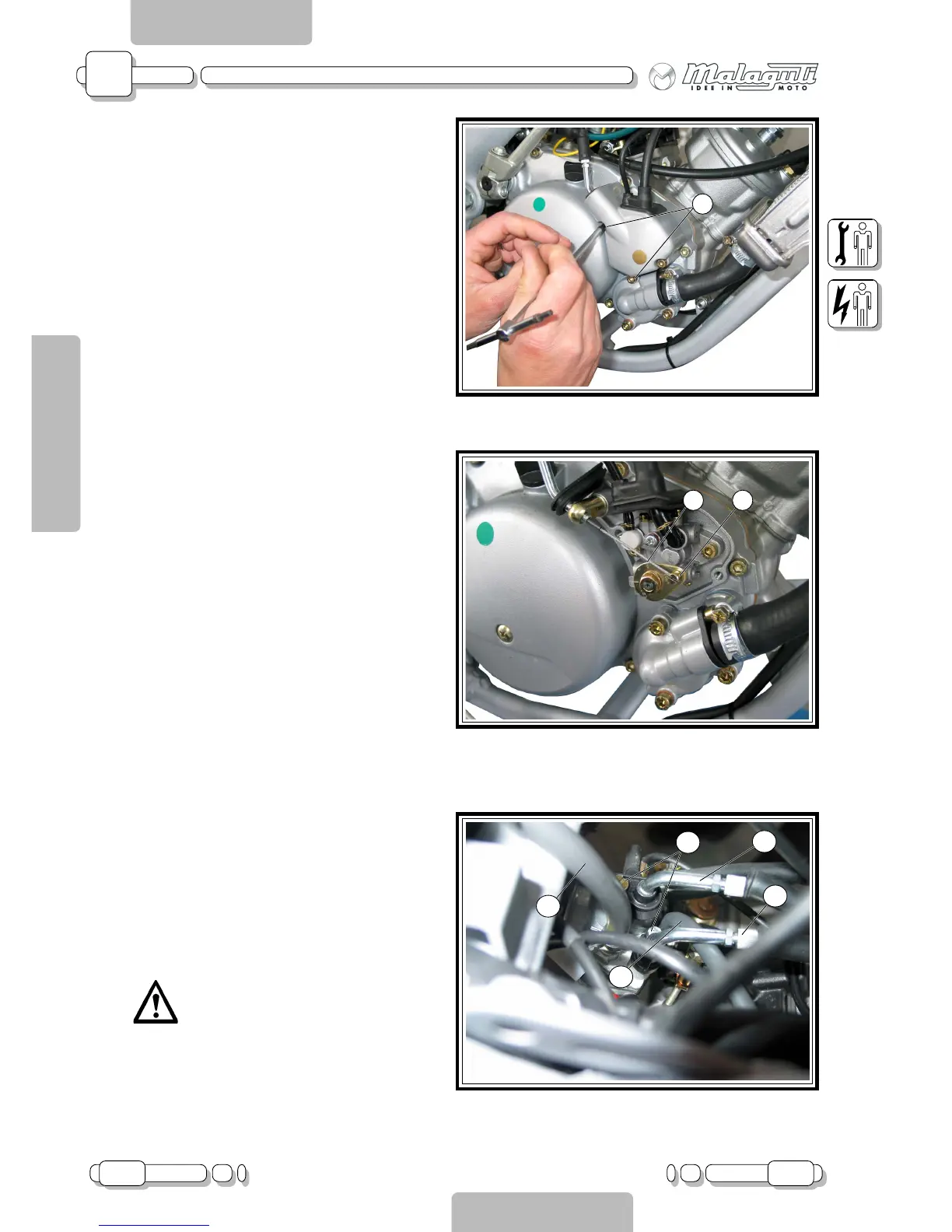

THROTTLE CABLE / MIXER
Undo the screws (V2 - F.29) and remove the pump
cover.
Release the cable (C - F.30) from the pump body
(P - F.30).
CARBURETTOR
• (Remove seat, side casings, fuel tank)
Remove the throttle cable coupler (G - F.31) and
the starter coupler (S - F.31), by loosening the
screws (V2 - F.31).
Remove the pipe clamps and detach the pipes (T -
F.31).
Detach the carburettor from the suction manifold,
after loosening the spring.
Caution!!! If you are removing the en-
gine only, the carburettor can be left
attached to the engine.
