Malaguti XTM 50 - DISASSEMBLY: REAR BRAKE CALIPER; REAR BRAKE CALIPER REMOVAL; REAR DISC BRAKE

A
02.04 39
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
T
V
F.52
T
P
F.52A
V3
F.53

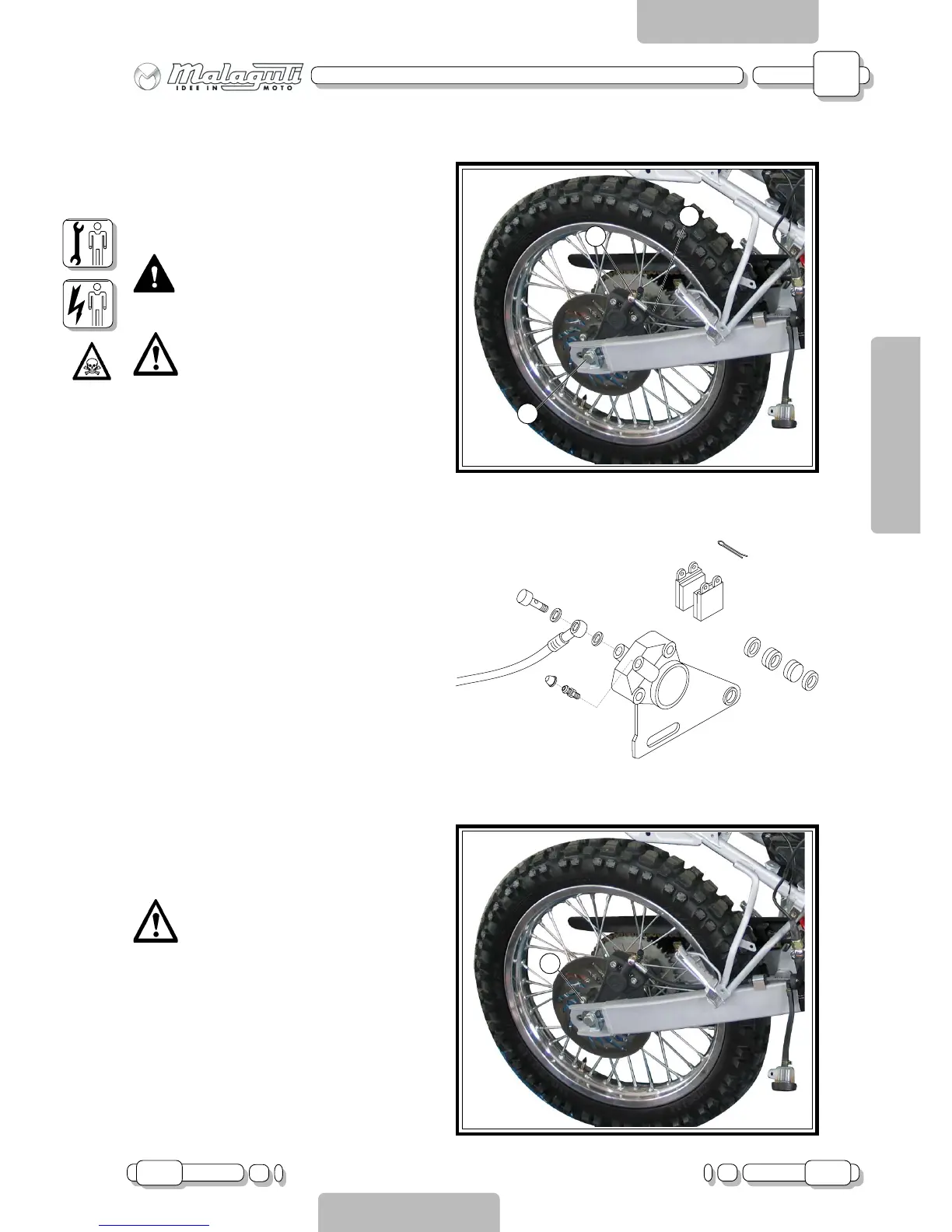

REAR BRAKE CALIPER
• (Remove rear wheel)
Loosen the hydraulic transmission screw (V - F.52)
and detach the pipe (T - F.52) from the caliper.
Release the calipers from the fork.
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Caution!!! When refitting, remember to
replace the copper gaskets and bleed
using the relevant equipment.
REAR DISC BRAKE
• (Remove front wheel and rear caliper)
Undo the screws (V3 - F.53).
Caution!!! When refitting, use thread-
locker.
REMOVING THE REAR BRAKE CALIPERS
(MOTARD/ENDURO model).
