A
32 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.35
M
V
F.37
V4
V4
F.36
V
V1

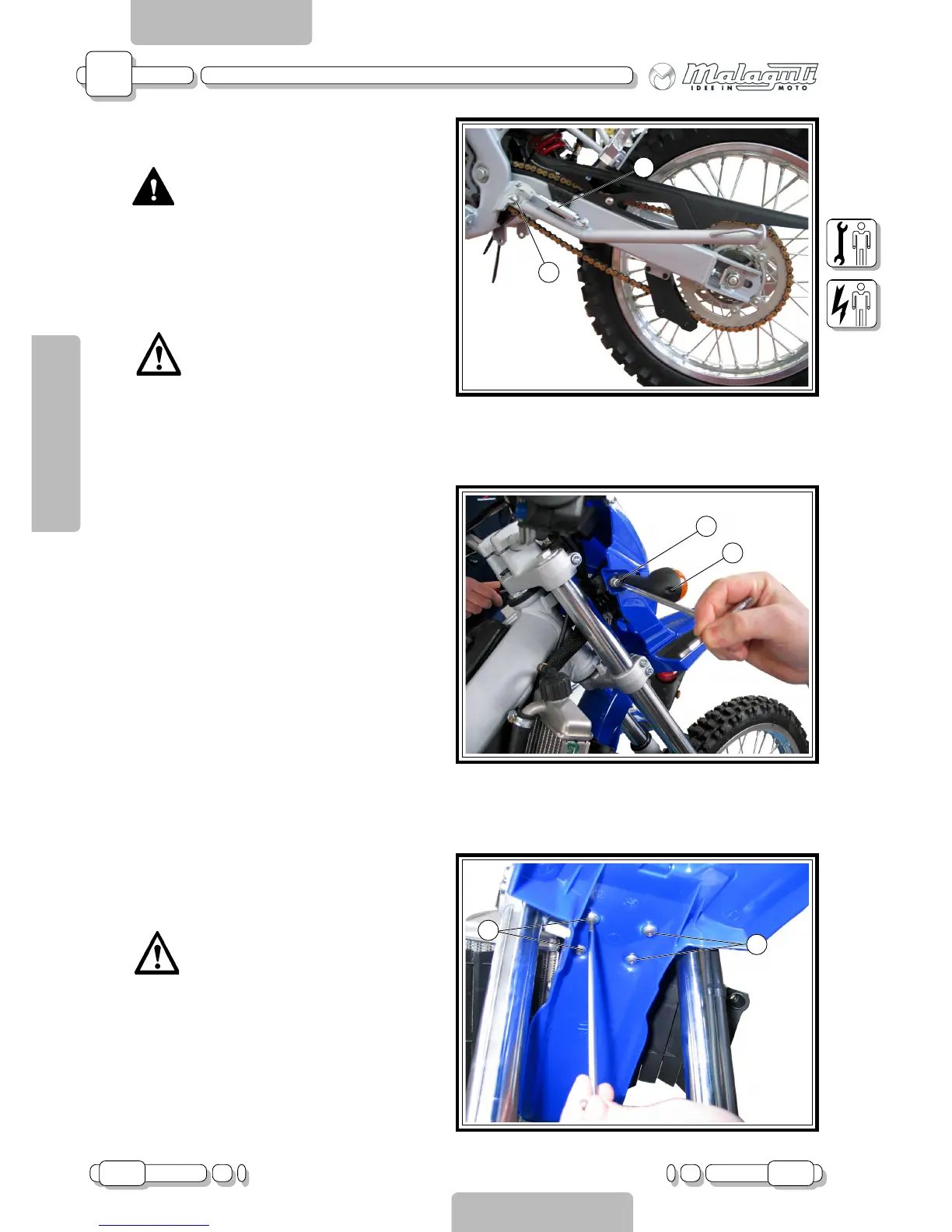

SIDE STAND
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehi-
cle falling over.
This operation must be performed
with the side stand in its idle position.
Release the screws (M - F.35) and undo the screw
(V - F.35).
Caution!!! When reassembling, use a
high strength threadlocker.
FRONT INDICATORS (right and left)
Undo the screw (V - F.1).
Remove the glass cover and detach the lamp sock-
et cables.
Undo the fixing screw (V - F. 36).
GUARD / FRONT WING
• (Remove front indicators)
Undo the screws (V4 - F.37) of the front wing.
Caution!!! Remember to retrieve the
bearings in the bottom section.
