Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.22
V2
F.23
V
F.24
V2
F.24b

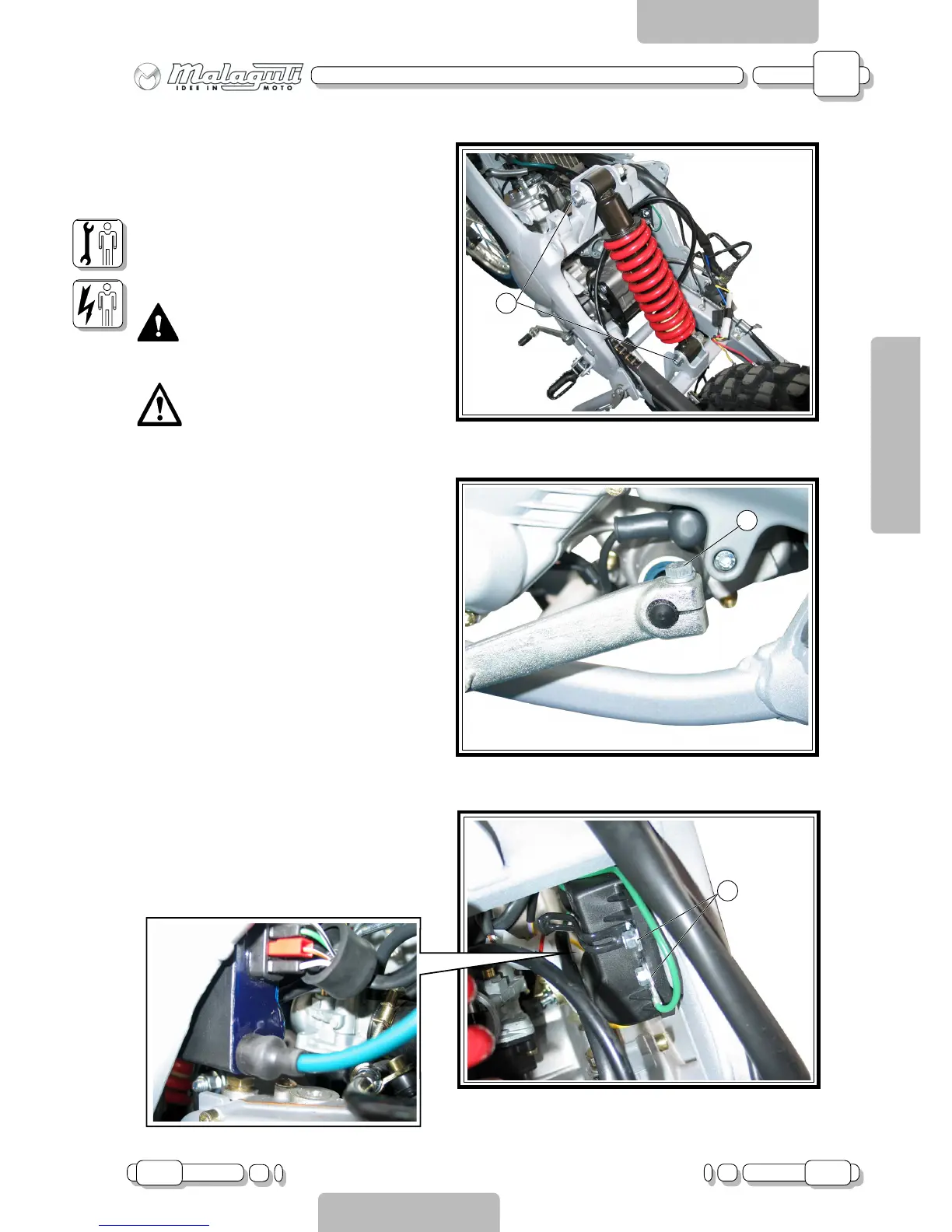

SHOCK ABSORBER
• (Remove the seat, rear left hand casing).
Undo the two screws holding the tank in place on
the rear side, and remove the rubber protection.
Undo the screws (V2 - F.22) and remove the shock
absorber.
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Caution!!! Check the direction in
which you are fitting the shock ab-
sorber and tighten the screws (V2) to
the established torque setting.
SHIFT LEVER
Undo the screw (V - F.23) and remove the lever.
CONTROL UNIT
• (Remove seat and rear right hand casing)
Undo the self-tapping screws (V2 - F.24), detach
the cables and spark plug cap and remove the
control unit.
