A
05.03 31
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.32
F.33
B
L
V
V3
F.34
P
RF

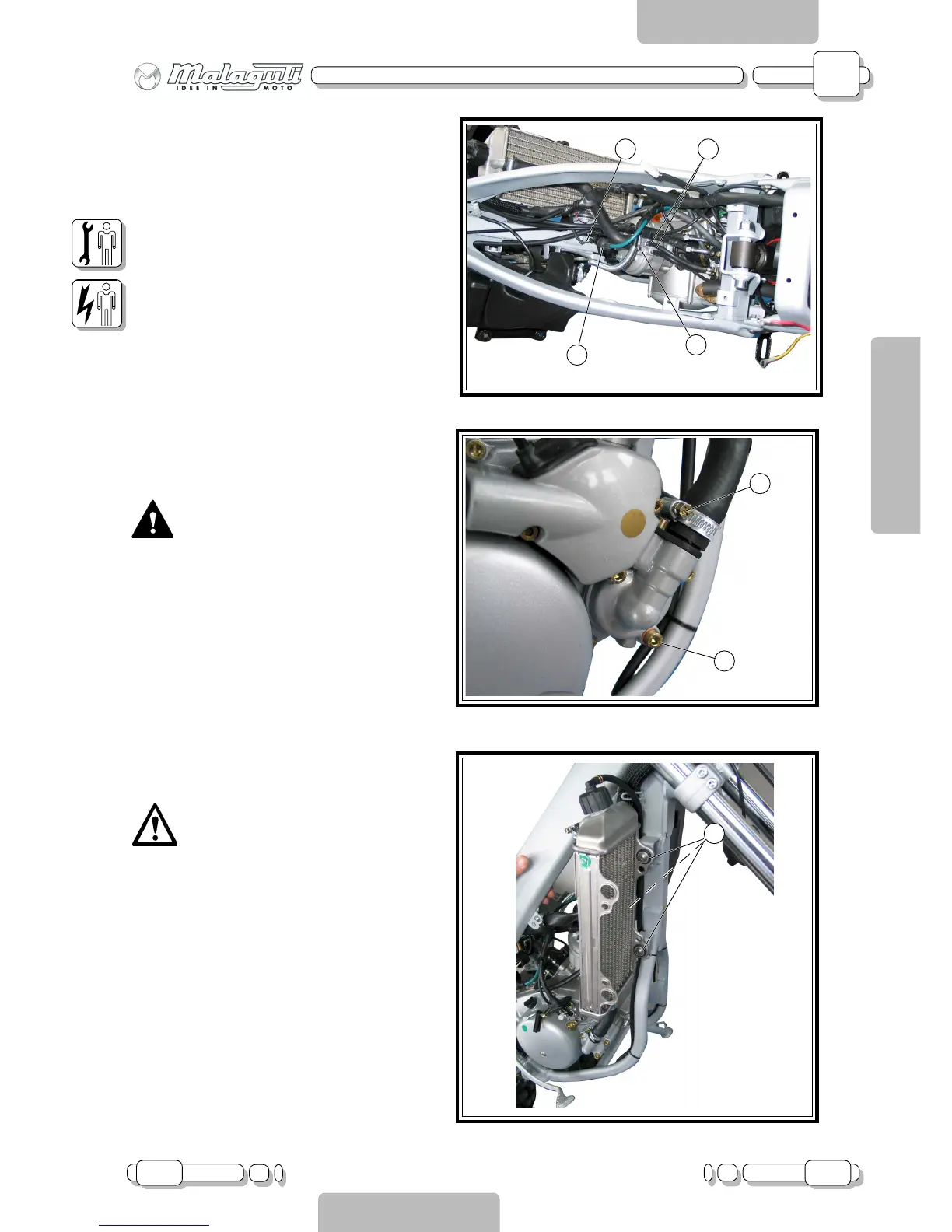

ENGINE
• (Remove seat, tank, side conveyors and muf-
fler)
Detach the two pipes of the cylinder head heater
(R - F.32), remove the suction manifold screws and
detach the spark plug cap (P - F32).
Detach the white/green cable from the thermistor
(F - F.32).
Detach the neutral cable (under the engine, near
the shift levers) and the cables of the flywheel and
control unit, releasing them from their clamps.
Remove the mixer cover and disconnect the trans-
mission. Remove the mixer pump by loosening the
two Allen screws.
Empty the coolant circuit by means of the drain-
age screw on the pump body (V - F.33).
Remove the head-radiator (B - F.32) and pump-
radiator (L - F.33) couplings.
Remove the pinion cover.
CAUTION!!!
Before disassembly, hold the centre
chassis section to prevent the vehicle
falling over.
Remove the lock nut and pull out the fork pin.
Loosen the nut of the front engine pin and remove
the pin.
Pull the engine out from the left hand side, by first
pulling out the front section.
RADIATOR
• (Remove seat and right hand conveyor)
Caution!!! Before removing the radia-
tor, drain the coolant using the drain
screw on the pump cover (V - F.33).
Undo the screws (V3 - F.34) and remove the radia-
tor.
