Malaguti XTM 50 - DISASSEMBLY: EXHAUST SYSTEM; SILENCER REMOVAL; MUFFLER REMOVAL

A
22 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F. 8
V
B
A
F. 9
D
C
F. 7
V2

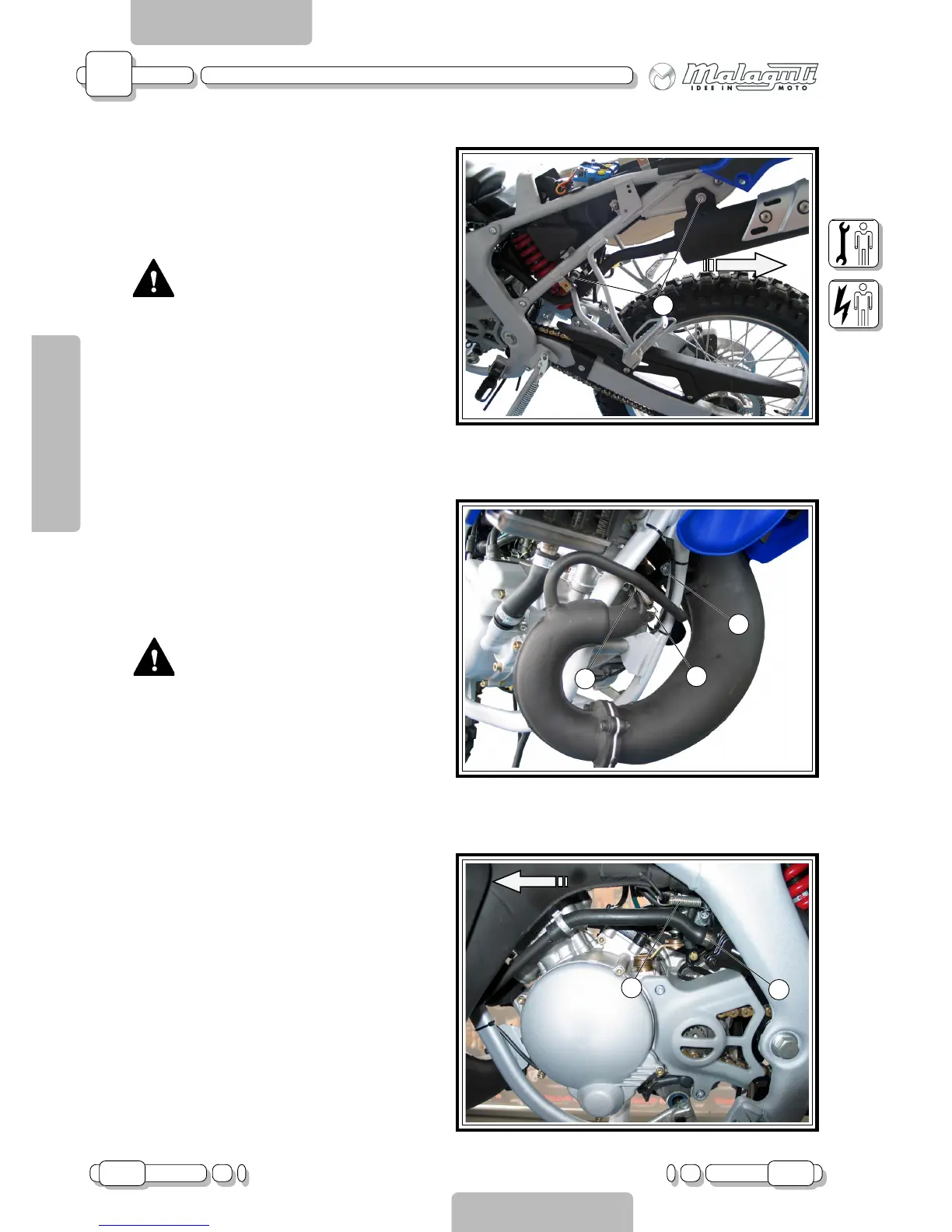

SILENCER
• (Remove seat and left hand side casing)
Remove the spring (D - F.9).
Undo the screws (V2 - F.7) and remove the silenc-
er by pulling it rearwards.
CAUTION!!!
Before removing, make sure the silenc-
er has cooled down.
MUFFLER
• (Remove seat and left hand side casing)
Remove the springs (A and B - F.8), fastened to
the cylinder.
Undo the screw (V - F.8).
CAUTION!!!
Before removing, make sure the muf-
fler has cooled down.
Remove the clamp (C - F.9) from the tube of the
secondary air valve and detach the tube from its
fitting.
Remove the spring (D - F.9) and remove the muffler
by pulling it frontwards.
