Malaguti XTM 50 - DISASSEMBLY: OIL SYSTEM COMPONENTS; OIL TANK REMOVAL; OIL LEVEL PROBE REMOVAL; OIL PIPE FITTING WITH FILTER REMOVAL

A
28 05.03
CHAPTER
PAGE ISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.25
F.27
V2
L
F.26
P
F
C

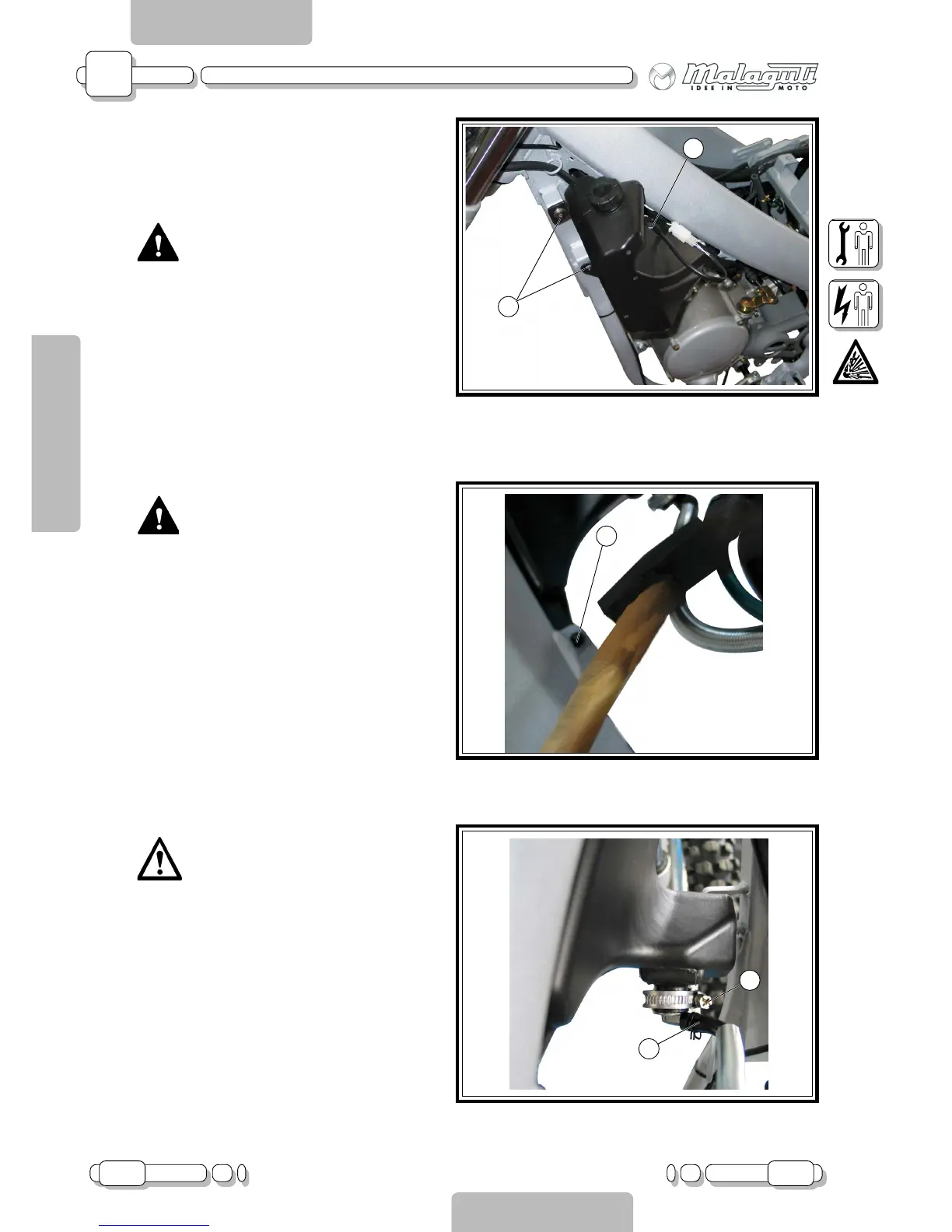

OIL TANK
• (Remove seat and front left conveyor).
CAUTION!!!
Empty the tank before disassembly; to
do so:
1. Put a pan under the oil tank.
2. Remove the pipe clamp (F - F.27)
and detach the pipe from its fitting.
Undo the screws (V2 - F.25), detach the
probe connector (C - F.25) and release the tank
pin (P - F.26) from the chassis.
OIL LEVEL PROBE
CAUTION!!!
Before removing the probe, release
the tank from the chassis.
Detach the probe’s connector (C - F.25) from the
main wiring.
OIL PIPE FITTING WITH FILTER
Caution!!! Before removing the fitting,
release the tank from the chassis.
Loosen the clamp (L - F.27) and remove the fitting,
paying attention not to damage the O-ring.
