Malaguti XTM 50 - DISASSEMBLY: FRONT LIGHTING AND CONTROLS; HEADLIGHT REMOVAL; DISPLAY REMOVAL; THROTTLE CONTROL REMOVAL

A
05.03 33
CHAPTER
PAGEISSUE
CHASSIS
ENGLISH
SECTION 2
Disassembly XTM - XSM
SECTION 3
A - CHASSIS
F.38
A
L2
C
G
P
F.39
V2
C
C
V2a
M
V2
R
F.40
I
H

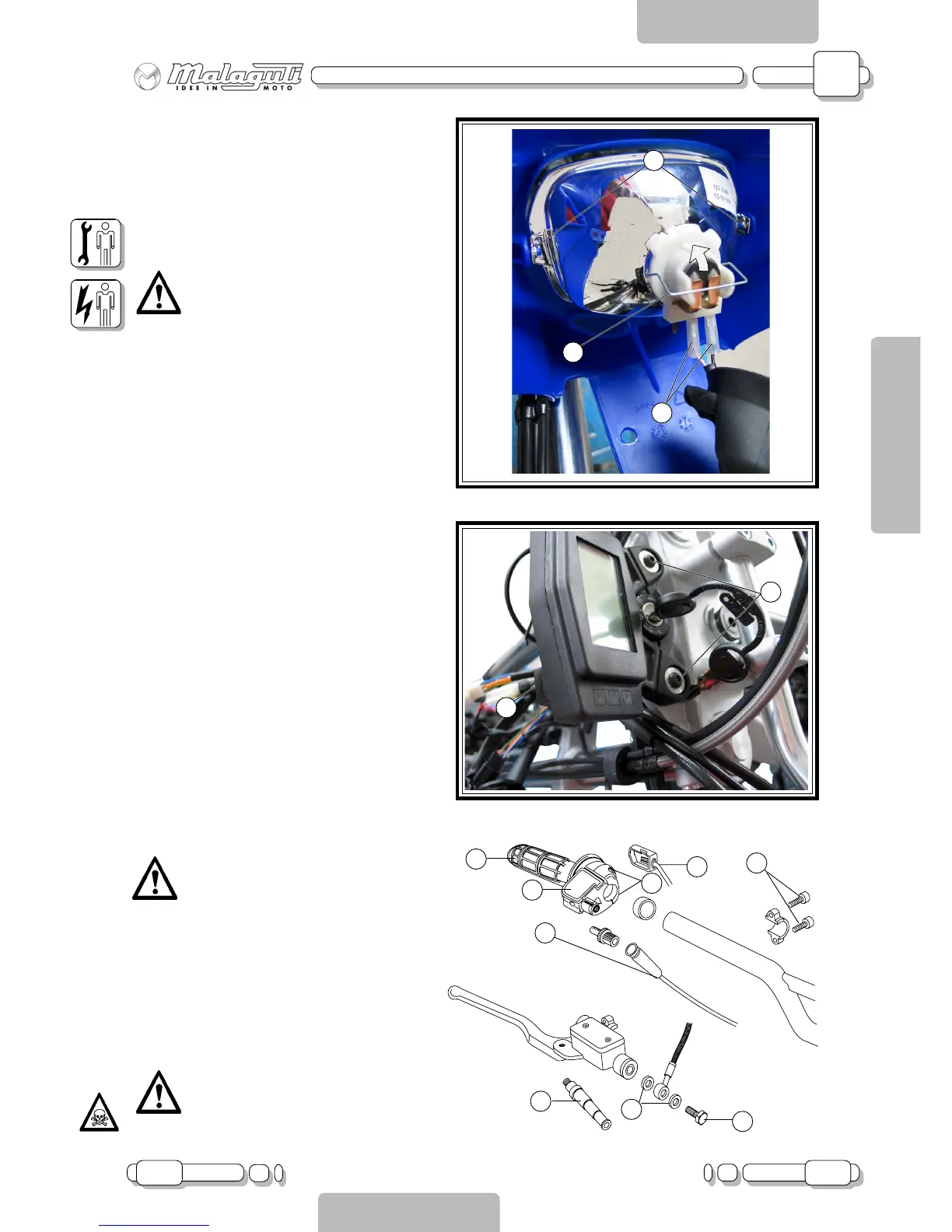

HEADLIGHT
• (Remove guard)
Remove the fast-ons of the wiring (A - F.38) and
remove the headlight by folding the tabs outwards
(L2 - F.38).
To access the lamp, open the clip (C - F.38).
Caution!!! When reassembling, pay
attention to the fast-on assembly se-
quence (see wiring diagram).
DISPLAY
• (Remove the front indicators and guard)
Detach the connector (C - F.39) and unscrew the
fixing screws (V2 - F.39).
THROTTLE CONTROL
Remove the MODE button (P - F.40), by unscrew-
ing the fixing screw.
Remove the front cover (C - F.40) and release the
throttle cable (G - F.40).
Remove the knob (M - F.40).
Undo the screws (V2 - F.40) and remove the throt-
tle control.
Caution!!! To reduce friction during
knob removal and refitting, use com-
pressed air.
FRONT BRAKE PUMP
Detach the fast-ons of the stop switch wiring (I -
F.40). Undo the hydraulic transmission screw (R -
F.40), paying attention to oil leaks.
Loosen the screws (V2a - F.40) and remove the
pump.
CAUTION!!!
When refitting, remember to replace
the copper gaskets (H - F.40) and bleed
using the relevant equipment.
