4 - EXTERNAL LOSS RETURN

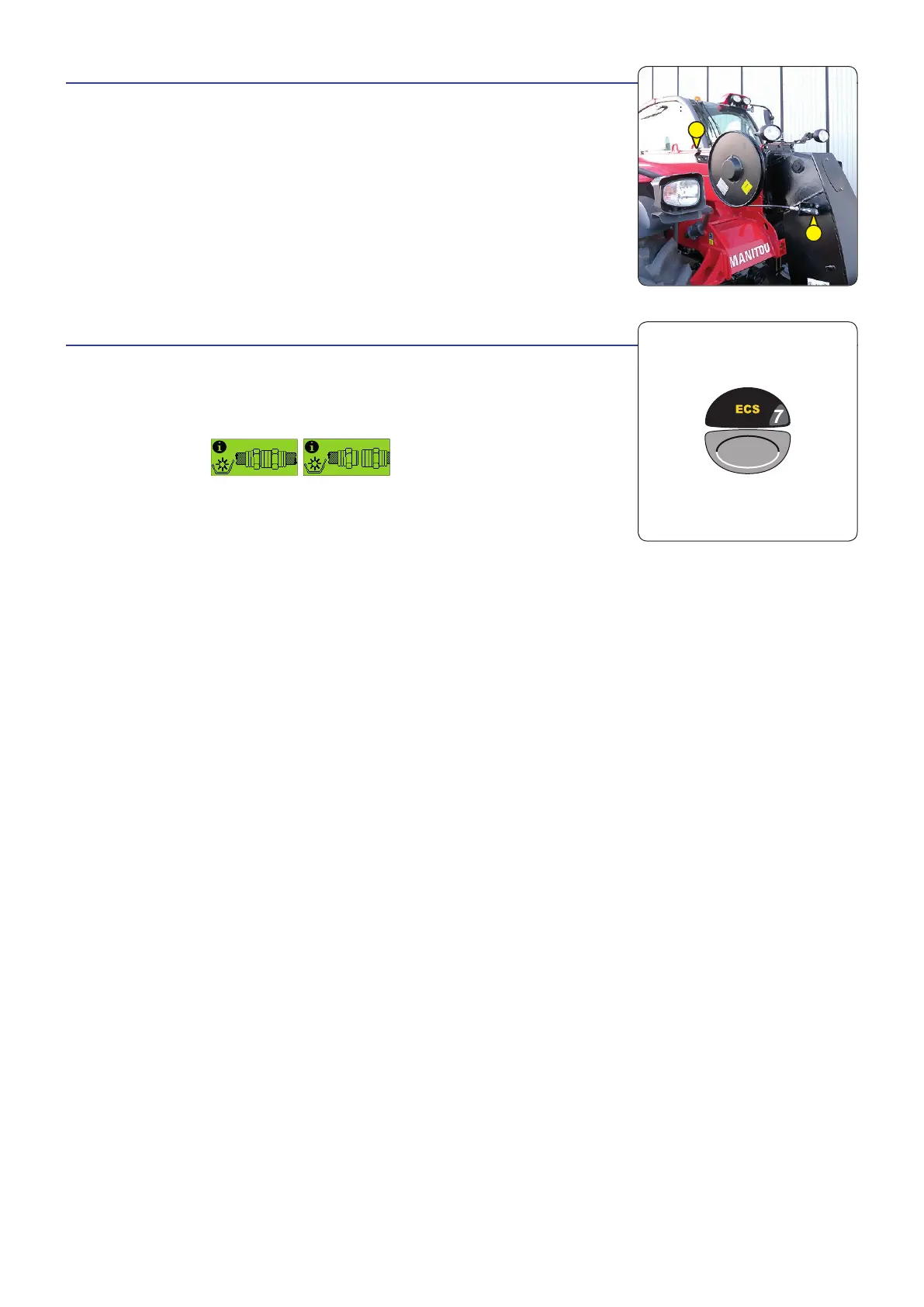

This allows connecting an attachment for which the loss return is required.
• A - Fixed position, drain-back not connected.
• B - Movable position, drain-back connected.
5 - EASY ATTACHMENT HYDRAULIC CONNECTION (ECS)
This allows easily connecting and disconnecting the attachment hydraulically.
OPERATION
- Switch on telehandler ignition.
- Press on the button for two seconds to release the attachment circuit hydraulic
pressure. screens
i
i
i
i
will be alternately displayed.
- Connect or disconnect the rapid connectors of the hydraulic attachment (e: 4 -
OPTIONAL ATTACHMENTS FOR USE WITH THE RANGE: PICKING UP THE ATTACHMENTS).
B
A
