2 - 41

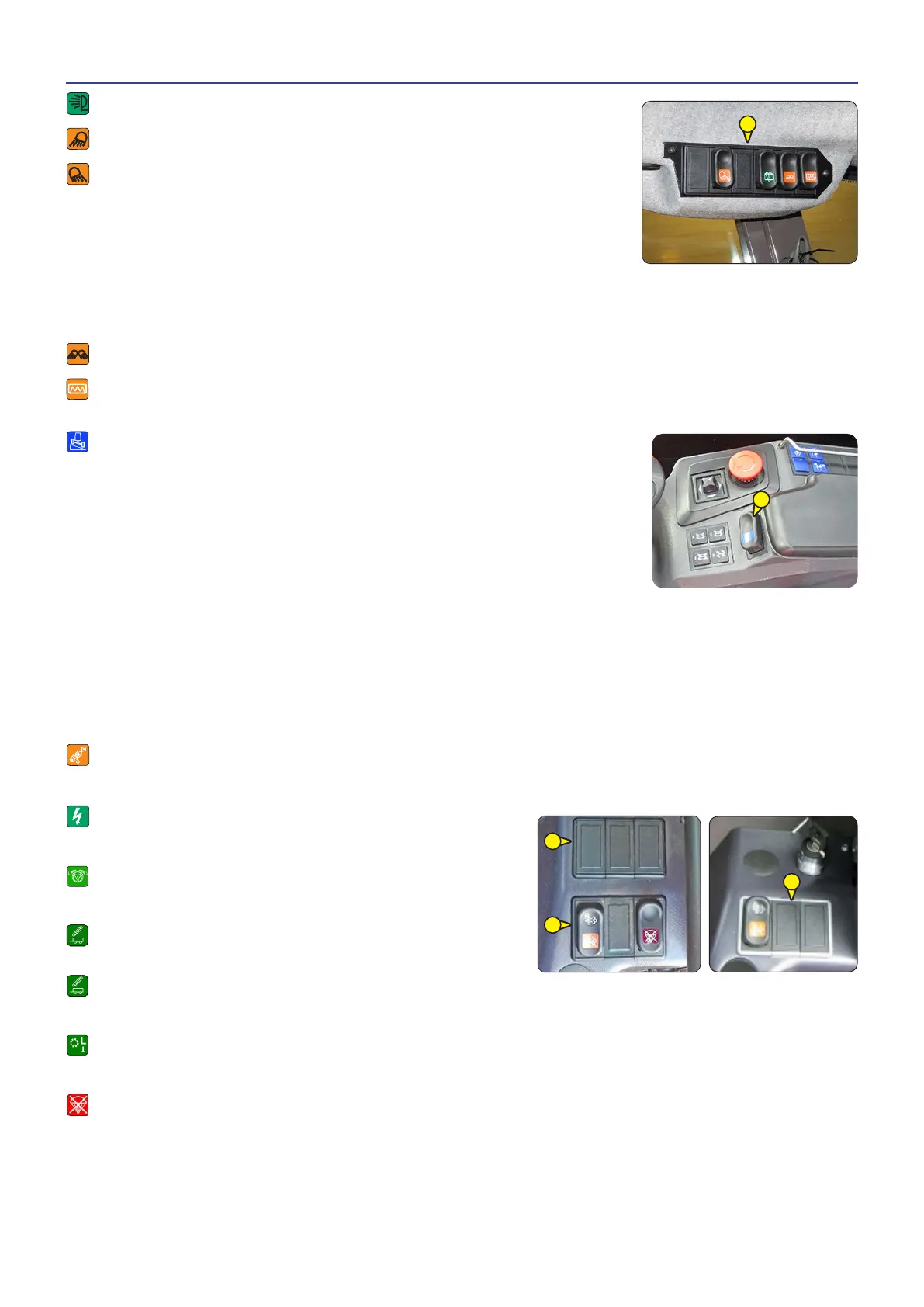

9 - SWITCHES

BOOM HEAD WORKING HEADLIGHTS (OPTIONAL)

FRONT WORKING HEADLIGHTS

REAR WORKING LIGHTS

UPPER AND REAR WIPER + SPRAY

Three-position switch (0, 1a, 1b).

This switch identies the controls that activates the rear and upper wipers (1a) and

dispenses the washing liquid (1b) at the same time, starting a wide movement and

spraying liquid to clean the windows.

Keep the switch pressed in position (1b) to activate the window washer spray. Release the switch (1b) to deactivate the

window washer spray.

SIDE WORKING HEADLIGHTS (OPTIONAL)

MAIN RIGHT REAR-VIEW MIRROR DEMISTER (OPTIONAL)

TILT CORRECTOR

(According to equipment)

This button controls the transverse levelling of the telehandler.

To perform the leveling operations keep the button pressed and move the joystick to the

left to tilt the telehandler on the left or on the right to tilt the telehandler on the right.

The levelling operation is allowed if the angle of the telescopic boom is lower than 21°

(e:7D - DISPLAY).

The telehandlers are provided with a device for levelling the chassis in relation to the

ground in order to allow the levelling of the telehandler and therefore the lifting of the boom to the maximum height in

complete safety and stability.

This device allows to correct the level by 7° to the right and 7° to the left.

Use of the device

Checking the relevant spirit level, level the telehandler before lifting and extending the boom.

If the telehandler is not levelled, lower the boom and repeat the levelling operation.

BOOM HEAD SOLENOID VALVE + LOCKING HYDRAULIC ATTACHMENT
