3 - 14

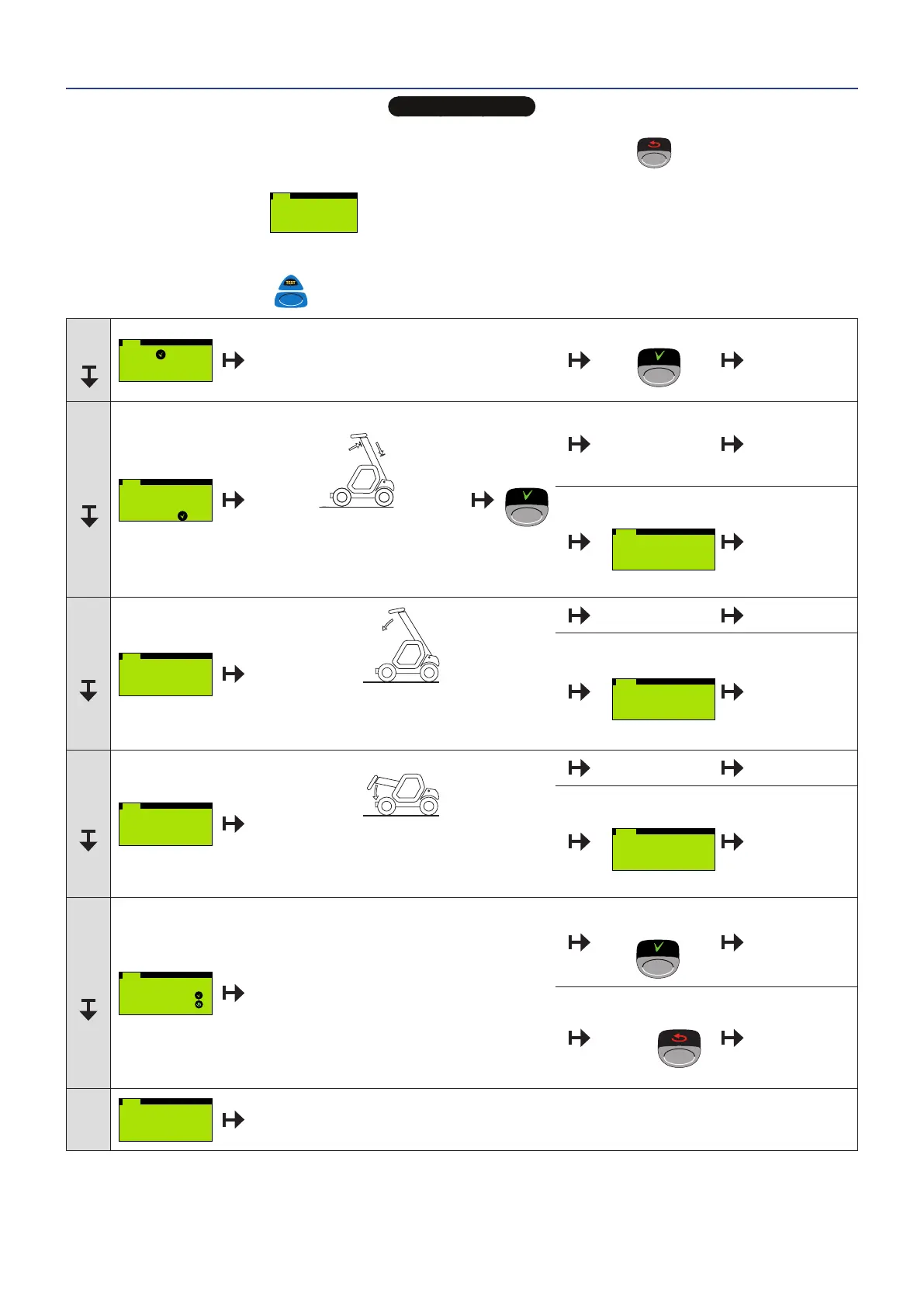

CHECK Signalling device and longitudinal stability limiter
t
IMPORTANT
t
Strictly observe the instructions for positioning the boom.
In case of doubt during the test procedure, exit by briefly pressing the cancel button
.
In case of doubts, contact your dealer.
The appearance of the screen
Security Test incomplete or failed
TEST
indicates that an instruction, a cancellation request or a late response has not been observed.
These tests are necessary to check proper operation and adjustment of the various components of the device.
- Place the telehandler on flat, level ground with the wheels straight.
- Long-press the test button
.
STAGE
1
TEST
Press to Enter
Security Test Mode
Start of procedure.
Confirm
Go to stage 2.
STAGE
2
TEST
R
etract telescope
lift the boom to
max position
then press
Place the telehandler without any attachment,
with the telescopic boom fully retracted and
raised.
Confirm
TEST OK
Go to stage 3.
TEST NOT OK
Screen
Retract Telescope OK
Boom Sensor NOK
Strain Gauge NOK
TEST
display
Contact your dealer.
STAGE
3
TEST
Lower the boom
at full speed
Perform a descent at full I.C. engine speed with hydraulic control
to the maximum. Slow down the descent until the movement
stops.
TEST OK
Go to stage 4.
TEST NOT OK
Screen
TEST
R
egulation NOK
Security Valve OK
display
Contact your dealer.
STAGE
4
TEST
Lower the boom
until stop
Continue to lower the telescopic boom with the I.C. engine
running at full revs and the hydraulic control at the maximum
setting. Lowering slows until movement is next stopped.
TEST OK
Go to stage 5.
TEST NOT OK
Screen
TEST
Security Valve NOK
display
Contact your dealer.
STAGE
5
TEST
Test movements
then if test OK :
or test NOK :
Request these movements in the following order: upward tilt,
downward tilt, telescopic boom extension and boom lowering.
None of these 4 movements should be possible.
TEST OK
Confirm
Go to stage 6.
TEST NOT OK
Cancel
Exit from
test mode.
Contact your dealer.
STAGE
6
TEST
Security Test
Procedure OK
End of procedure.
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
