Manitou MLT 961-145 V PLUS L JD ST4 S1 - Clean; Radiator Grilles; Clean;Check; Condenser Grille (OPTIONAL Air Conditioning)

3 - 19

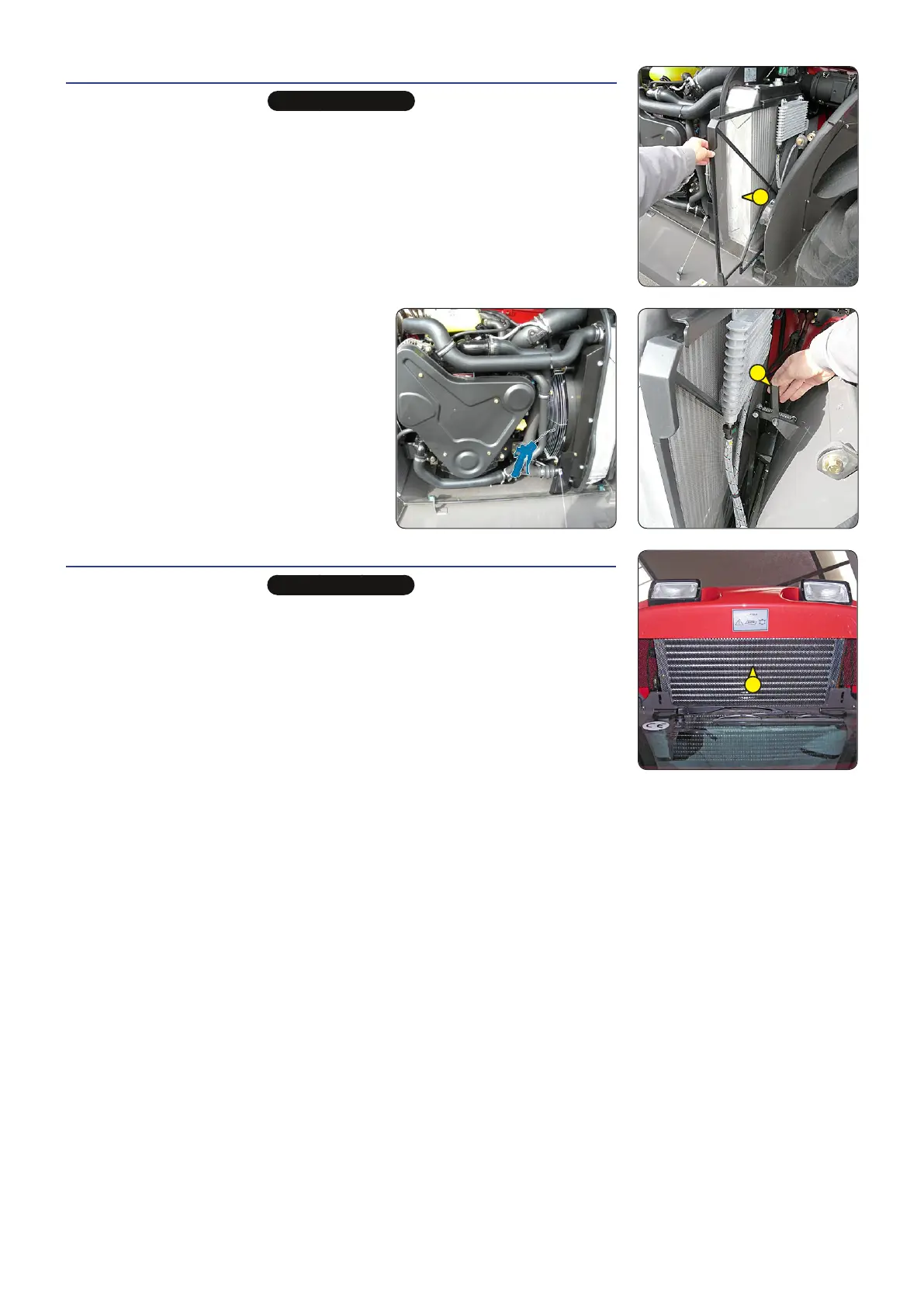

CLEAN/CHECK Condenser grille (OPTIONAL air conditioning)
t
IMPORTANT
t
In polluting environments, clean the radiator grille daily. Do not use a high pressure water or steam jet as this can
damage the condenser fins.
- Remove the protection grille 1 and clean it if necessary.
- Visually check the condenser to see if it is clean; clean if necessary.
- Clean the condenser using a jet of compressed air, aiming the jet in the direction
of the air flow.
- To optimise the cleaning, carry out this operation with the fans switched on.
CLEAN Radiator grilles
t
IMPORTANT
t
In polluting environments, clean the radiator grille daily.
Do not use a high pressure water or steam jet as this could damage the radiator fins.
- Open the engine bonnet.
- If necessary, clean the suction grille on the engine cover.
- Clean grid 1.
- Using a soft cloth, clean the radiator in order to remove as much dirt as possible.
- Clean the radiator using a compressed air jet aimed in the opposite direction to
the cooling air flow.
- Remove impurities via the panel using handle 2.
2
1
1
