CHECK Hydraulic oil level
Place the lift truck on level ground with the I.C. engine stopped and the boom retracted
and lowered as far as possible.
t
IMPORTANT
t
Use a perfectly clean funnel and clean the top of the oil drum before filling.

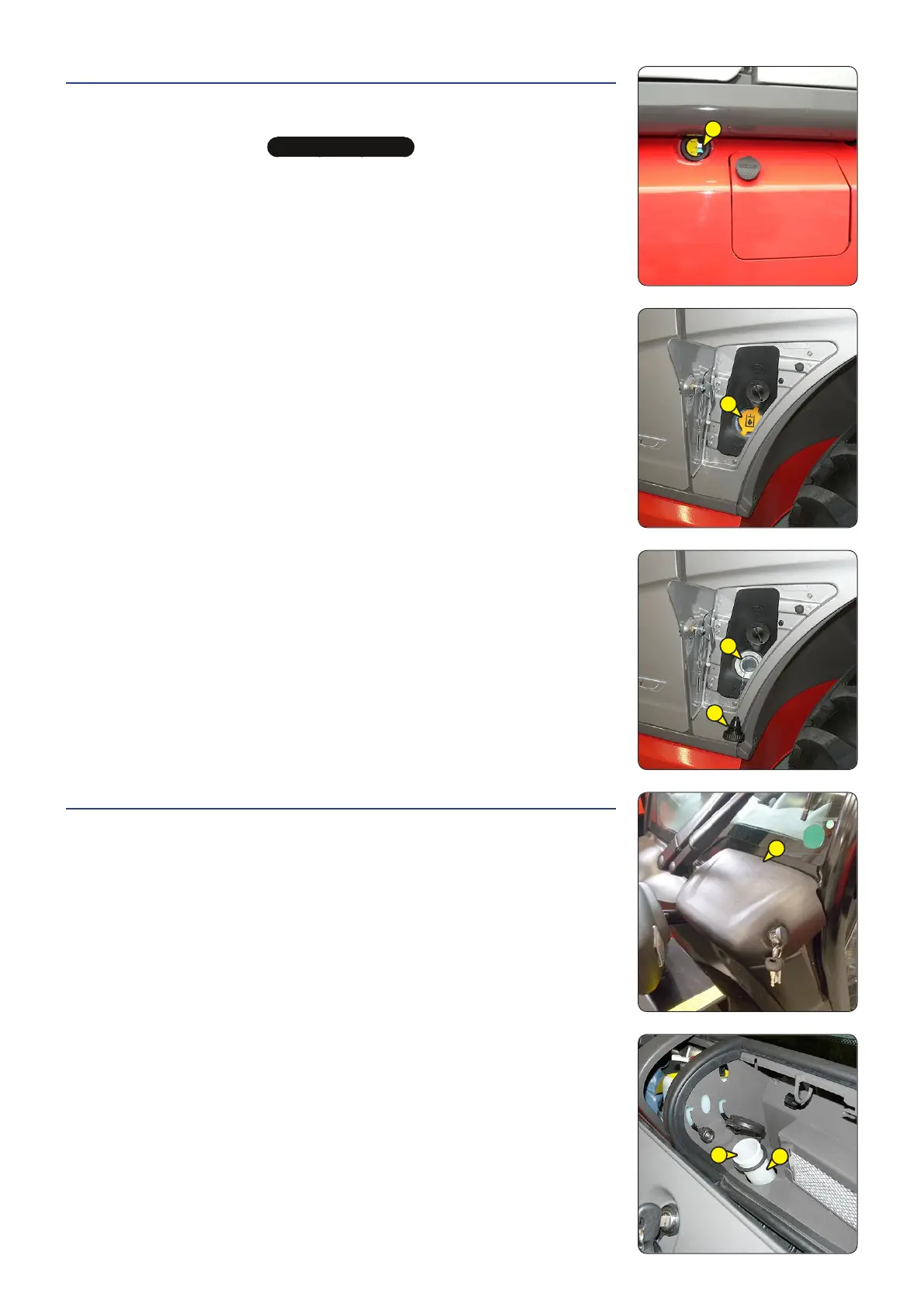

- Check indicator 1, the level is correct when it is on the red spot.
- If necessary, add oil (e LUBRICANTS AND FUEL).
- Visually check the tank and pipes for leaks.
- Remove the filler cap lock 2.
- Remove the plug 3.
- Add oil through the filler hole 4.
- Refit the cap and its lock.
CHECK Windscreen washer liquid level
- Open the protective casing 1 with the ignition key.
- Visually check the level in tank 2.
- If necessary add windscreen washer liquid (e LUBRICANTS AND FUEL).
- Remove the plug 3.
- Add windscreen washer liquid through filler port.
- Refit the cap.
