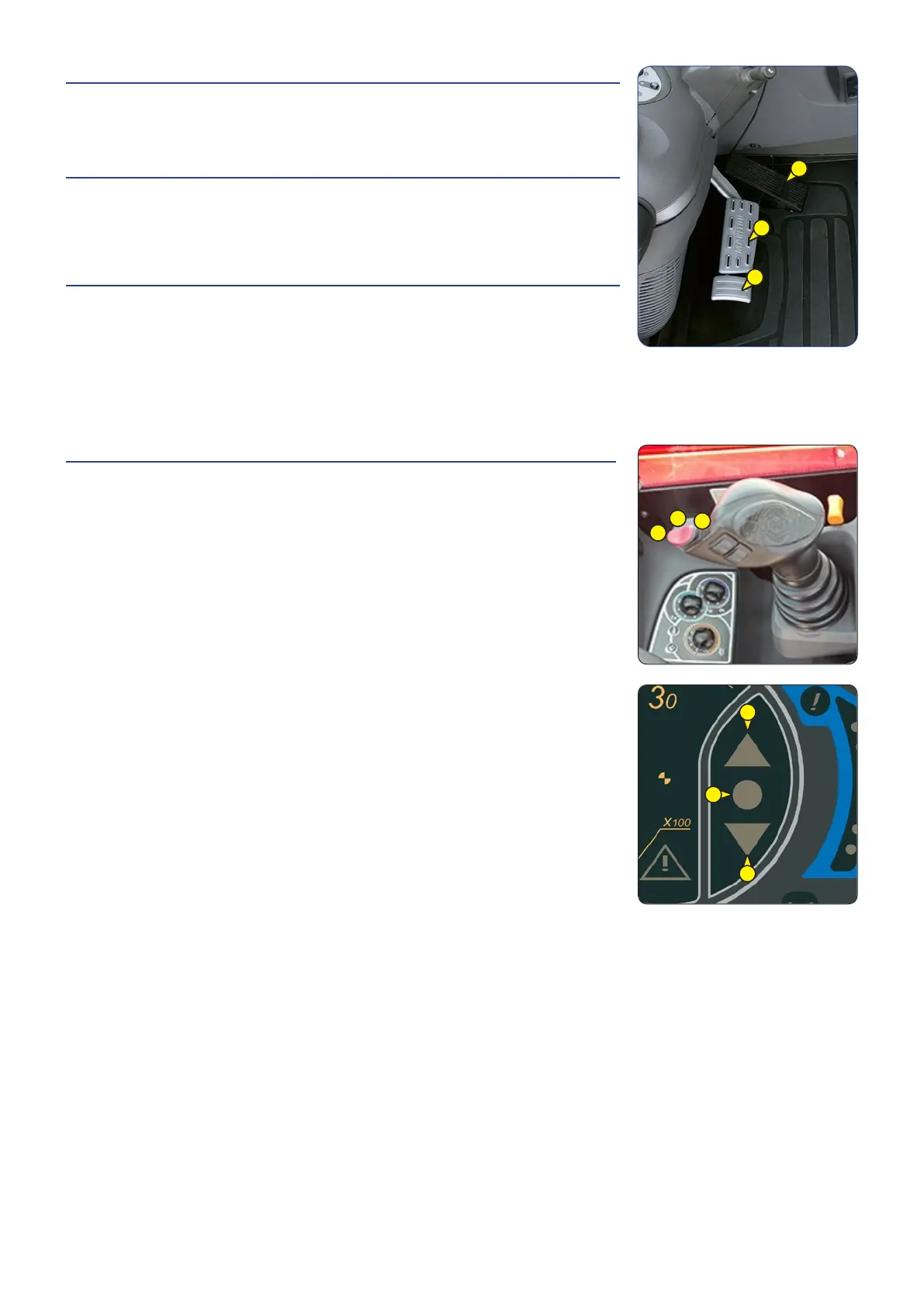

20 - ACCELERATOR PEDAL
Electronic pedal used to change the telehandler speed by acting on the rpm of the I.C.
engine.
21 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
The pedal acts on the front and rear wheels by a power assisted hydraulic brake system,
and allows the telehandler to be slowed down and stopped.
18a – INCHING PEDAL
The pedal acts on the front and rear wheels through a system of assisted hydraulic
breaking that allows to move the telehandler at a low speed, allowing the precise
movements of the loads.
22 - FORWARD/NEUTRAL/REVERSE GEAR SELECTION
Authorisation to use the gear selector is given by validation of driver presence (e: 2 –
DESCRIPTION: 6 - HUMAN-MACHINE INTERFACE (HMI).
When operating this control, the telehandler should be travelling at slow speed and
not accelerating.
•
FORWARD GEAR: Push the switch forward (position A), indicator light A1 will flash
then remain steady the moment you press on the accelerator
pedal.
• REVERSE GEAR: Push the switch backward (position B), indicator light B1 will flash
then remain steady the moment you press on the accelerator
pedal. Reversing lights and an acoustic reversing alarm indicate
that the telehandler is running in reverse.
• NEUTRAL: Set the switch to the centre position (position C), indicator light C1
will come on and the handbrake is applied (by default).
NOTE:
An indicator light that flashes while the telehandler is in use indicates a fault
(e: 2 – DESCRIPTION: 6D - DISPLAY: MENU SCREENS.
