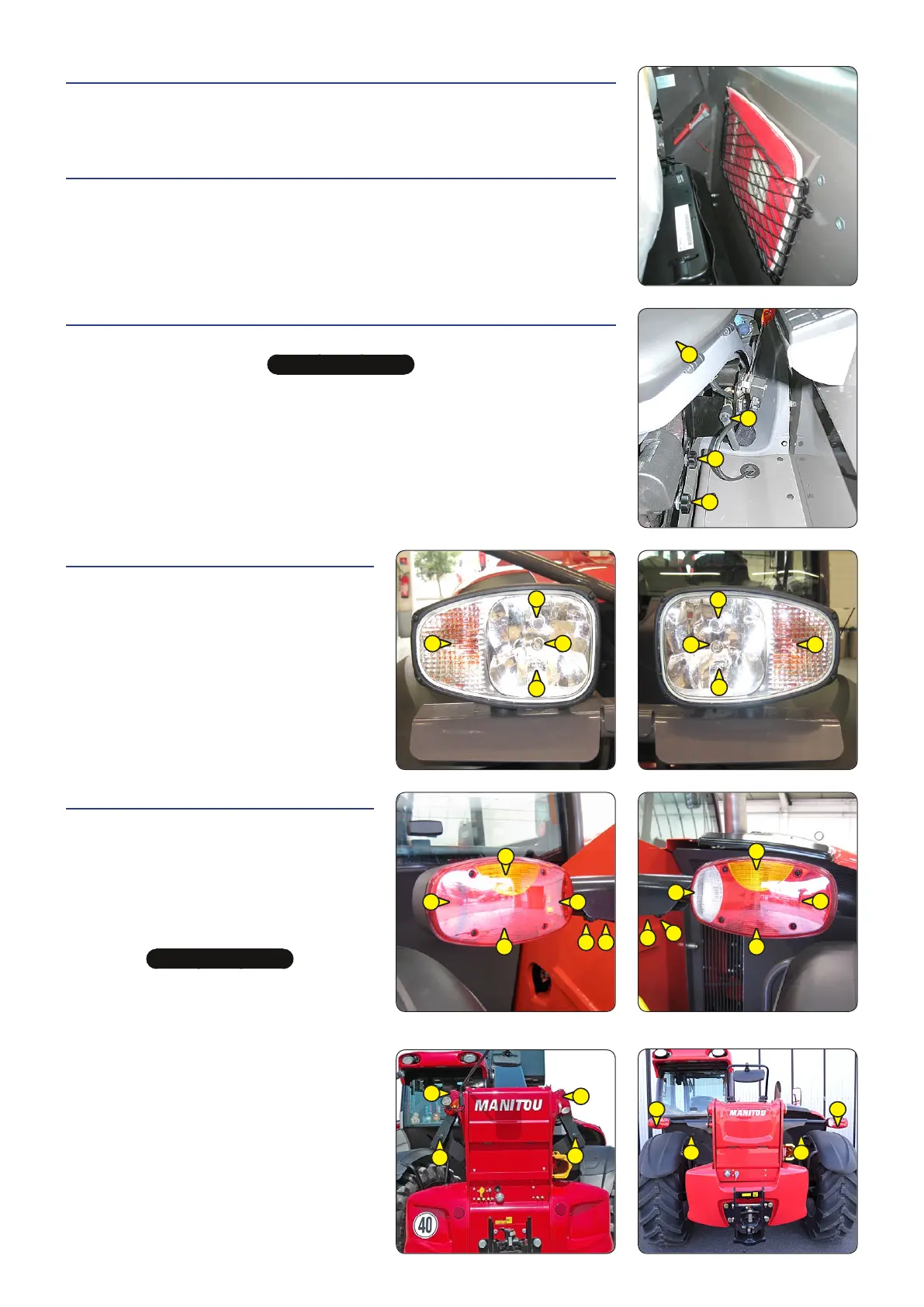

42 - FRONT HEADLIGHTS
• A - Front left turning light.
• B - Front left low beam.
• C - Front left high beam.
• D - Front left position light.
• E - Front right turning light.
• F - Front right low beam.
• G - Front right high beam.
• H - Front right position light.
43 - REAR LIGHTS
• A - Rear left turning light.
• B - Rear left stop light.
• C - Rear left light.
• D - Rear fog lights.
• E - Rear reverse light.
• F - Right rear light.
•
G - Right rear stoplight.
• H - Right rear indicator.
t
IMPORTANT
t
When driving on the road, widen the rear lights by means of the
thumbscrews.
39 - DOCUMENT HOLDER NET
Make sure that the operator’s manual is in the right place, i.e. in the document holder net.
NOTE: An OPTIONAL waterproof document-holder exists.
40 - STORAGE COMPARTMENT
41 - ARMREST ADJUSTMENT
The armrest adjustment positions the controller.
t
IMPORTANT
t
Make sure that the armrest’s position is as ergonomic as possible to improve comfortable operation or handling
hydraulics.
- Adjust the height of the armrest with handle A
- Adjust the armrest upwards or downwards using thumbscrews B
