2 - 27
7A - DRIVER PRESENCE
The driver's presence is validated when the operator is correctly seated and the cab door is closed.
- It is only from that moment that the telehandler is operational; the operator can perform hydraulic movements and
move the telehandler.

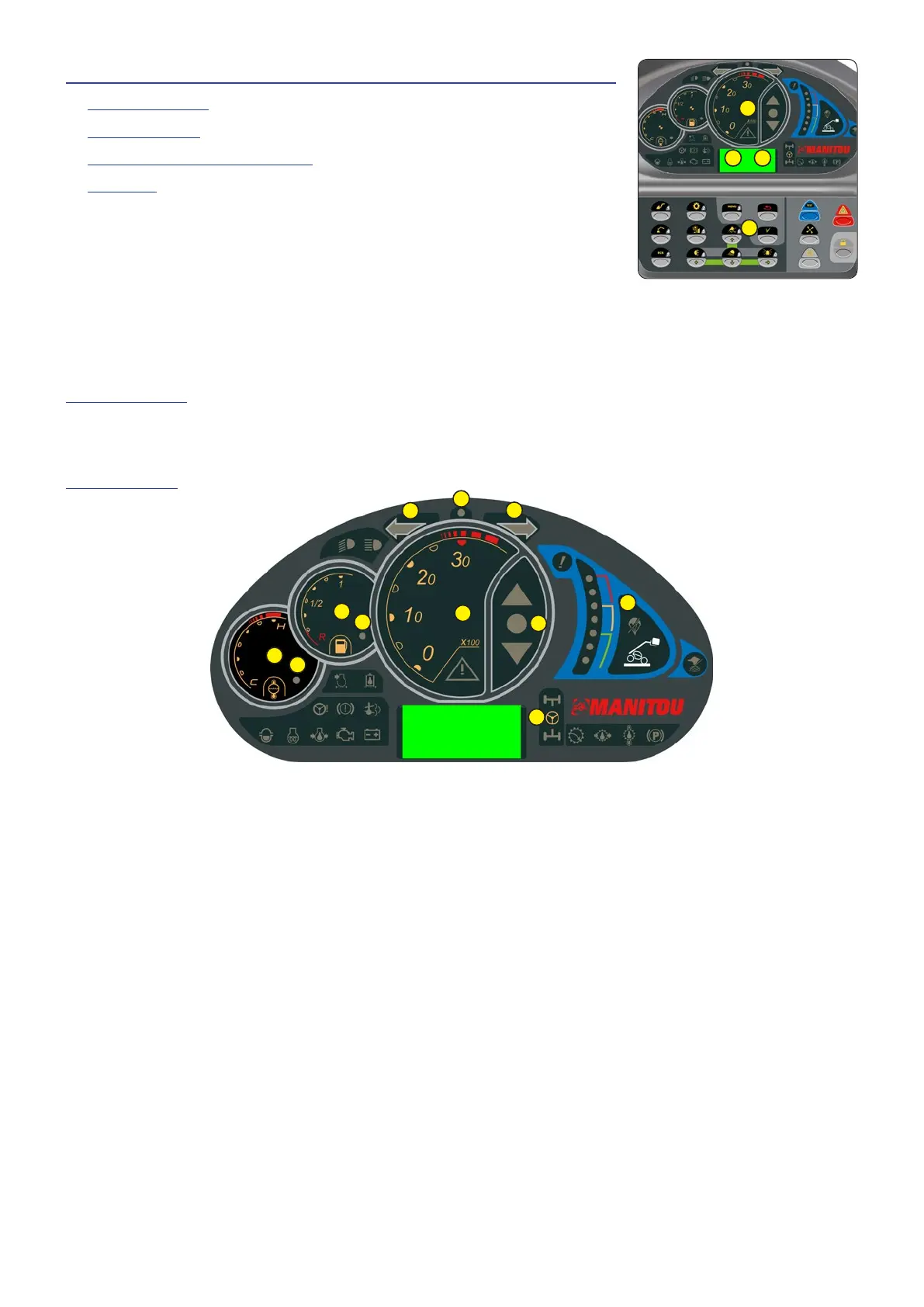

7B - CONTROL PANEL
A - REV COUNTER
B - FUEL LEVEL
When the yellow warning light B1 comes on it means that you are in reserve and that your running time is limited.
C - LONGITUDINAL STABILITY WARNING LIGHT
E: 2 – DESCRIPTION: 7 - SIGNALLING DEVICE AND LONGITUDINAL STABILITY LIMITER.
D - FORWARD/NEUTRAL/REVERSE LIGHT
E: 2 – DESCRIPTION: 20 - FORWARD/NEUTRAL/REVERSE SELECTOR
E - GREEN STEERING LIGHTS
A continuous beeping sound on and off at the same time as the steering lights when using indicator lights or hazard warning
lights.
F - GREEN WARNING LIGHTS FOR WHEEL ALIGNMENT
E: 2 – DESCRIPTION: 22 - STEERING SELECTION.
G - DIGICODE INDICATOR LIGHT
This light flashes when the digicode is enabled (e: 2 – DESCRIPTION: 6D - DISPLAY).
H - I.C. ENGINE WATER LEVEL AND TEMPERATURE LIGHT
COLD ENGINE: If the H1 light comes on when the telehandler is running, this means that the cooling liquid level is too low.
Immediately stop the I.C. engine and check the level.
HOT ENGINE: If the H1 light comes on when the telehandler is running, this means that the cooling liquid temperature is
too high or its level is too low. Stop the I.C. engine immediately and seek the cause of the cooling system
malfunction.
A
B
B1
C
D
E
E
F
G
H
H1
7 - HUMAN-MACHINE INTERFACE (HMI)
7A - DRIVER PRESENCE
7B - CONTROL PANEL
7C - PANEL FOR BUTTONS AND KEYBOARD
7D - DISPLAY
UPDATE: In order to gain maximum advantage from the Man-Machine Interface of
your telehandler, contact your dealer to receive the most recent available
version of the software.
7A 7D
7B
7C
