3 - 20
LUBRICATE General lubrication
To be carried out weekly, if the telehandler has been operated for less than 50 hours during the week.
t
IMPORTANT
t
In the event of prolonged use in an extremely dusty or oxidising atmosphere, reduce this interval to 10 working hours or every day.

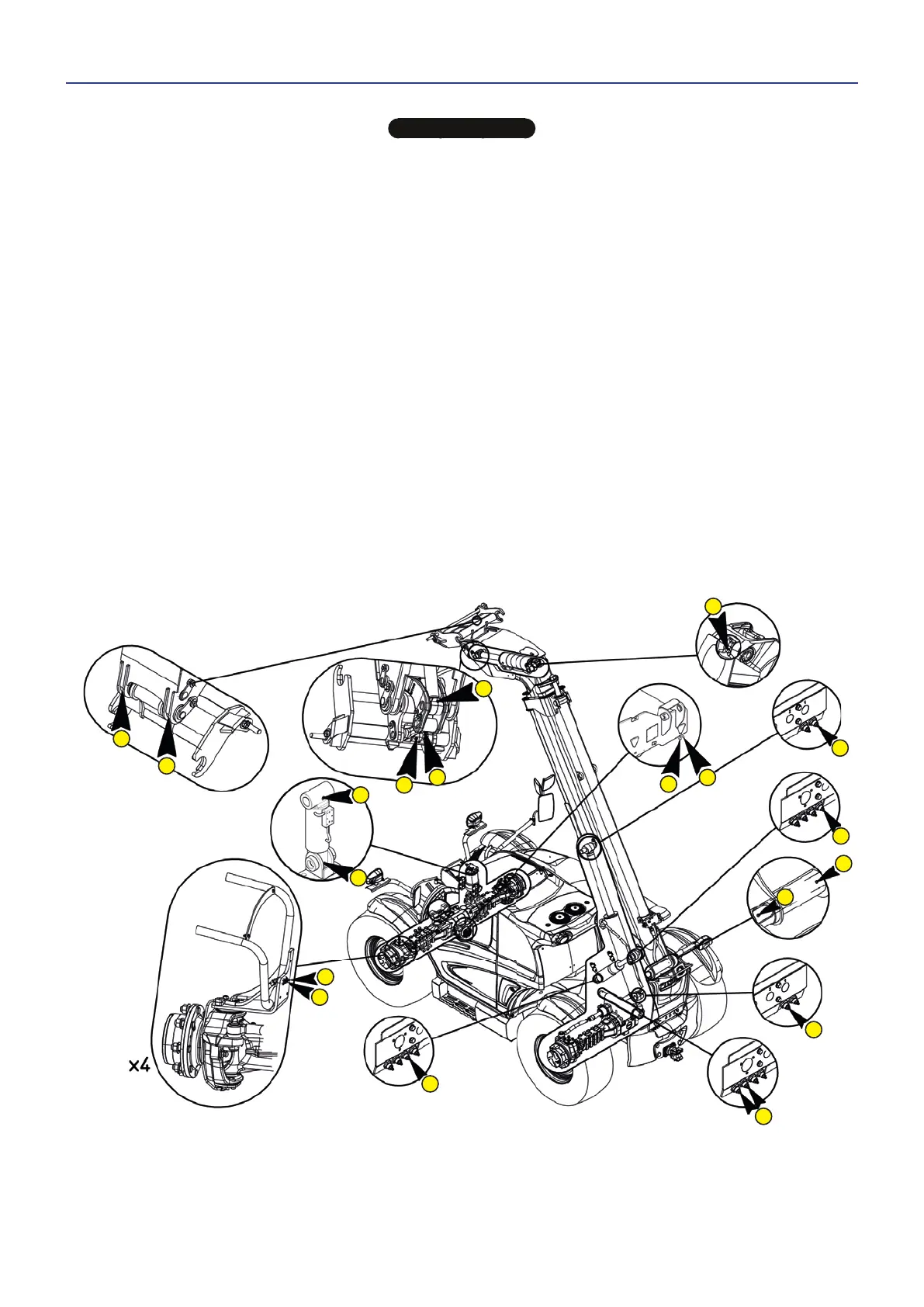

Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus
of grease.
Each grease nipple is identified by a yellow cap.
TELESCOPIC BOOM
1 - Lubricators of the boom axis (1 lubricators).
2 - Lubricators of the axis of the attachment quick coupler (2 lubricators).
3 - Lubricator of the tilting cylinder head (1 lubricator).
4 - Lubricator of the tilting cylinder base axis (1 lubricator).
5 - Lubricators of the attachment quick coupler con-rod axes (3 lubricators).
6 - Lubricator of the lifting cylinder base axis (1 lubricator).
7 - Lubricator of the lifting cylinder head axis (1 lubricator).
8 - Lubricator of the compensation cylinder base axis (1 lubricator).
9 - Lubricator of the compensation cylinder head axis (1 lubricator).
FRONT AND REAR WHEEL FINAL DRIVE PIVOTS
10 - Lubricators for the wheel final drive pivots (8 lubricators).
REAR AXLE OSCILLATION
11 - Lubricator for oscillation of the rear axle (2 lubricators)
12 - Lubricators for oscillation of the front axle (2 lubricators)
TILT CORRECTOR
13 - Lubricator of the tilting corrector cylinder base axis (1 lubricator).
14 - Lubricator of the tilting corrector cylinder head (1 lubricator).
3
2
2
5
13
14
5
4
10
10
11
12
12
6
7
8
9
1
1
649100 EN-US-AU (20/05/2019)
MLT 961-145 V PLUS L JD ST4 S1
