1 - DRIVER’S SEAT

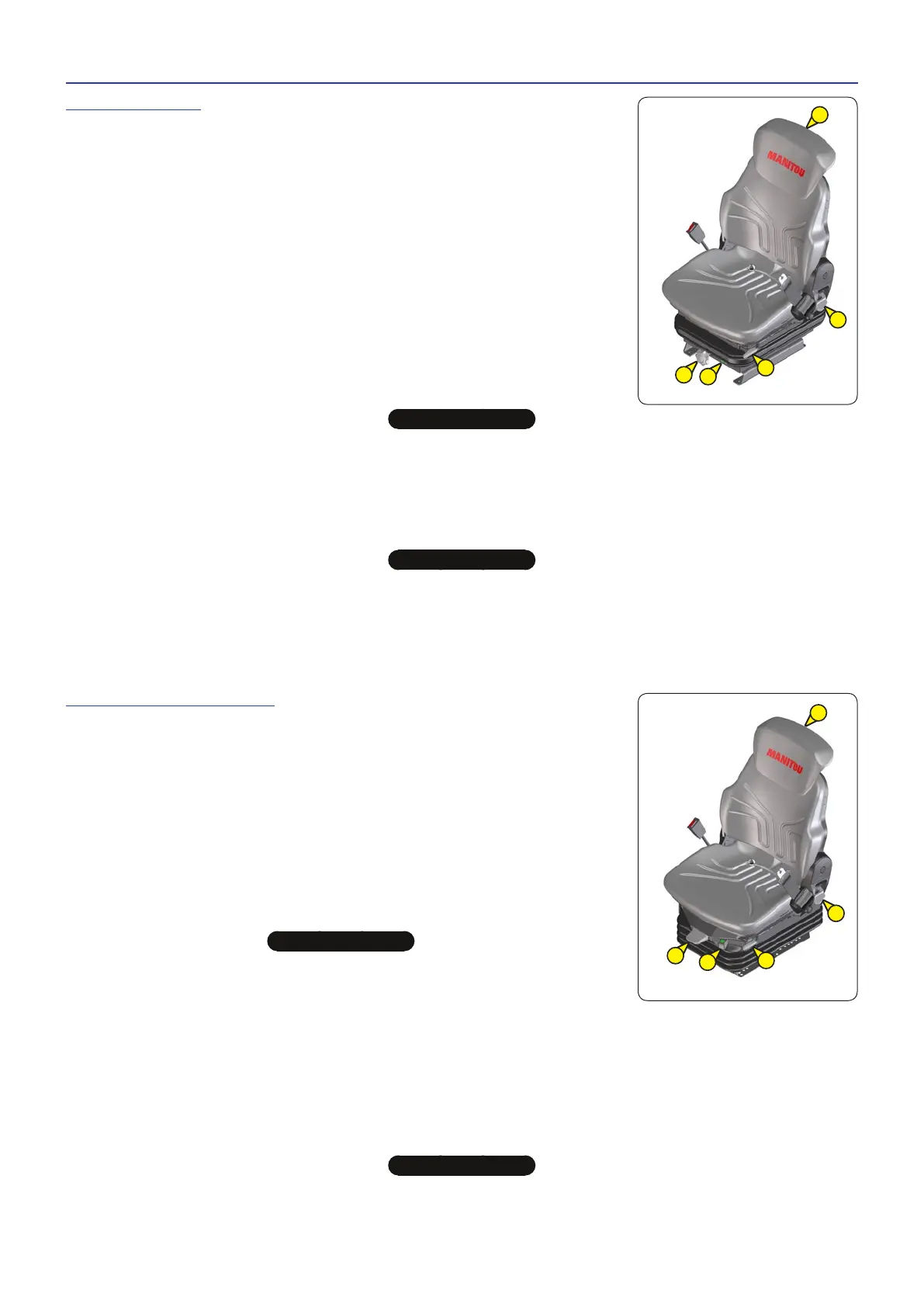

DRIVER’S SEAT "CLASSIC"
FOR GREATER COMFORT, THIS SEAT ALLOWS SEVERAL ADJUSTMENTS.
ADJUSTING THE WEIGHT
We recommend adjusting the weight with the seat empty.
- Refer to notch 1 of the seat.
- Turn handle 2 according to the weight of the operator.
NOTE:
To avoid health problems, we recommend checking and adjusting the weight
before starting the lift truck.
EXTENDING THE BACK-REST
- The height of the back-rest 3 can be adjusted by pulling it upwards (the notches
will click) up to the stop.
- The back-rest can be removed by applying sufficient pressure to pull it off the stop.
BACK-REST ANGLE ADJUSTMENT
t
IMPORTANT
t
If the back of the seat is not supported during adjustment, it will fully tilt forward.
- Lean against the back, pull the lever 4 and move the back of the seat to the desired position.
LONGITUDINAL ADJUSTMENT
- Insert the locking lever 5 in the desired position. After it has been locked, it will not allow further movements of the seat.
MAINTENANCE
t
IMPORTANT
t
Risks of accident increase when the backseat tilts!
Dirt can impair proper operation of the seat. Therefore it must always be kept clean.
- To clean or replace the cushions, just pull them out of the frame of the seat.
- Avoid wetting the fabric of cushions during cleaning. First check on a hidden area how the fabric reacts to normal fabric
and plastic detergents.
DRIVER'S PNEUMATIC SEAT "PREMIUM"
FOR GREATER COMFORT, THIS SEAT ALLOWS SEVERAL ADJUSTMENTS.
SEAT WEIGHT AND HEIGHT ADJUSTMENT
ADJUSTING THE WEIGHT
Adjust the seat for the driver's weight by sitting on it.
- Switch on lift truck ignition.
- Lift or press lever 1 until the green light of indicator light 2 appears, indicating the
proper adjustment according to the weight.
NOTE:
To avoid health problems, we recommend checking and adjusting the weight
before starting the lift truck.
SEAT HEIGHT ADJUSTMENT
t
IMPORTANT
t
To prevent any damage, do not activate the compressor for more than 1 minute.
After adjusting the weight, the height of the seat can be adjusted.
- Maintain the electrical contact of the lift truck.
- Lift or press lever 1 and adjust the height of the seat checking that the green light of indicator light 2 remains visible at
the same time.
EXTENDING THE BACK-REST
- The height of the back-rest 3 can be adjusted by pulling it upwards (the notches will click) up to the stop.
- The back-rest can be removed by applying sufficient pressure to pull it off the stop.
BACK-REST ANGLE ADJUSTMENT
t
IMPORTANT
t
If the back of the seat is not supported during adjustment, it will fully tilt forward.
- Lean against the back, pull the lever 4 and move the back of the seat to the desired position.
1
2
3
4
5
2
1
3
4
5
