Manitou MLT 961-145 V PLUS L JD ST4 S1 User Manual

2 - 44
N°296731
Diagn
ECM
F51
K21
10A
F52
30A
F53
30A
K21
F52
F53
F51
1

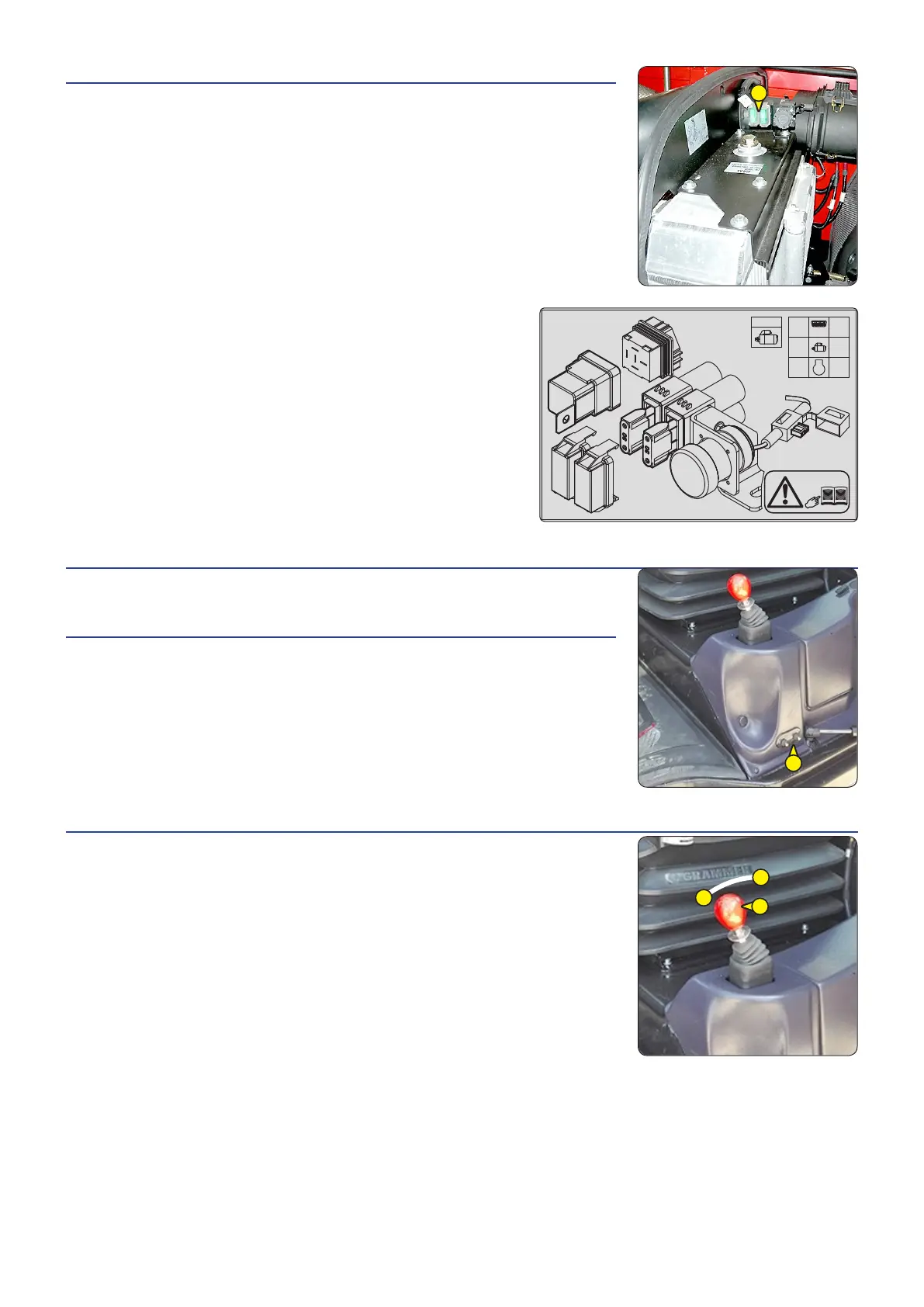

12 - FUSES AND RELAYS UNDER THE ENGINE BONNET
- Open engine bonnet 1 in order to gain access to the fuses and relays. Replace a used
fuse with a new fuse of the same quality and capacity. Never reuse a repaired fuse.
RELAYS
•
K20 - Not used.
• K21 - Engine start control relay.
• K22 - Not used.
• K23 - Not used.
• K24 - Not used.
• K25 - Not used.
• K26 - Not used.
MAXIFUSE
•
F52 - Engine start-up (30A).
• F53 - Engine ECM computer (30A).
MINIFUSE
•
F51 - Diagnostic socket (10A).
13 - DOOR PRESENCE SENSORS
e 2 - DESCRIPTION: 6 - HUMAN-MACHINE INTERFACE (HMI).
14 - CIGARETTE LIGHTER
- move the emergency brake, release and push the lever forward (position B).
15 - EMERGENCY BRAKE LEVER
To prevent accidental loosening or release, the lever is fitted with safety
locking.
The emergency brake lever is used in case of malfunction of the parking
brake at HMI level or for a long stop.
- To engage the emergency brake, pull the lever backwards (position A).
- To disengage the emergency brake, release and push the lever forward (position B).
B
A
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
