Manitou MLT 961-145 V PLUS L JD ST4 S1 - Dual-Acting Rear Hydraulic Control Fitting; For Single-Acting Rear Hydraulic Control Fitting

2 - 69

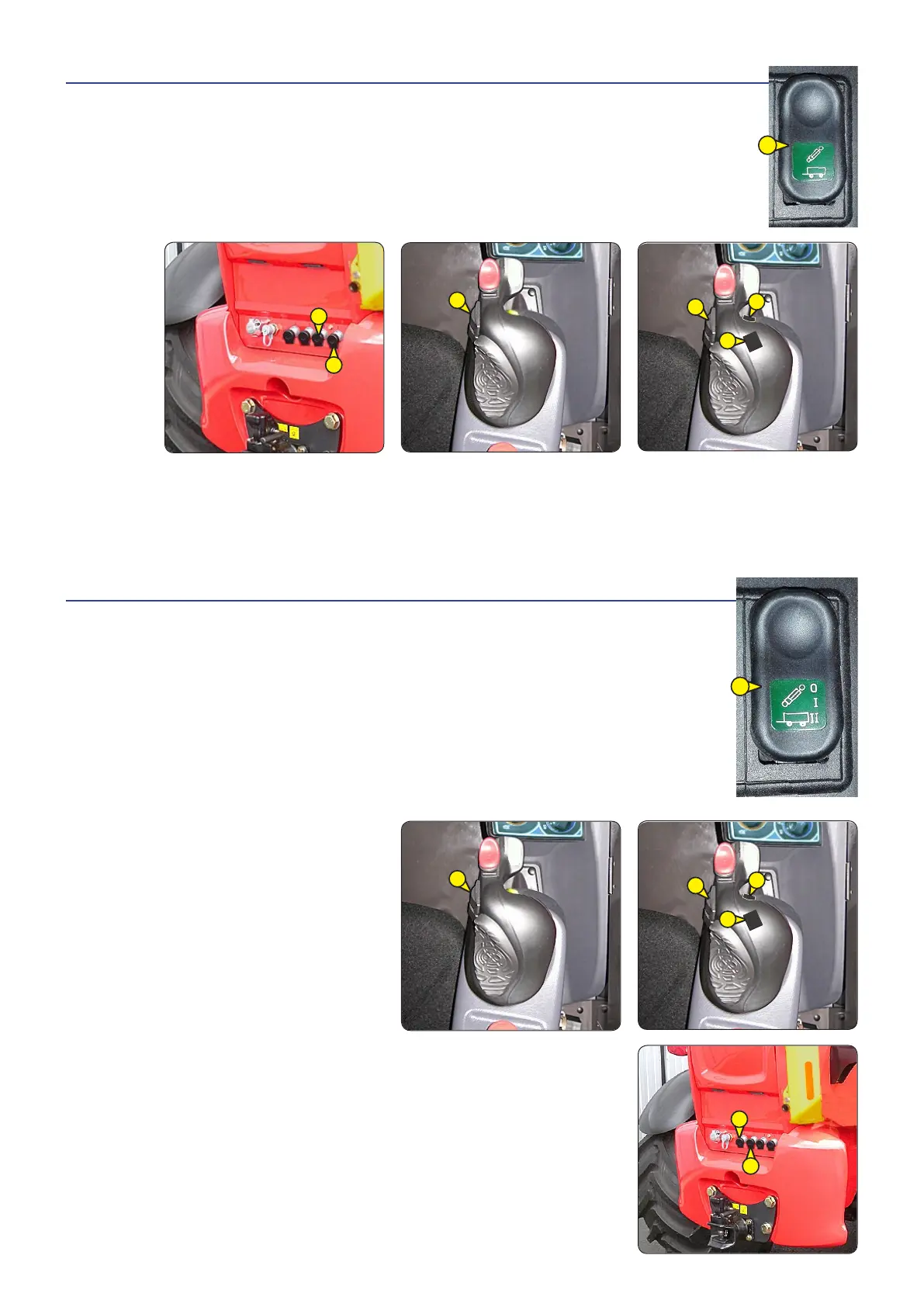

11 - FOR SINGLE-ACTING REAR HYDRAULIC CONTROL FITTING
Enables the use of a hydraulic attachment at the rear of the telehandler (e.g. a trailer
with hydraulic tipping).
SINGLE-ACTING L1 REAR HYDRAULIC CONTROL.
- Press the switch 2 (light on) to power the hydraulic control.
- Press button 2 forward or backward.
12 - DUAL-ACTING REAR HYDRAULIC CONTROL FITTING
DOUBLE-ACTING L1 / L2 AND DOUBLE-ACTING L3 / L4 REAR HYDRAULIC CONTROL
DUAL EFFECT ATTACHMENT L1 / L2
- Press the switch 2 (light on) to "
I" to power the hydraulic control.
- Press button 1 forward or backward.
DUAL EFFECT ATTACHMENT L3 / L4
- Press the switch 2 (light on) to "
II" to power
the hydraulic control.
- Press button 1 forward or backward.
1
OK
OK
1
L2
L1
2
1
OK
OK
1
2
L4
L3
