1 - 20

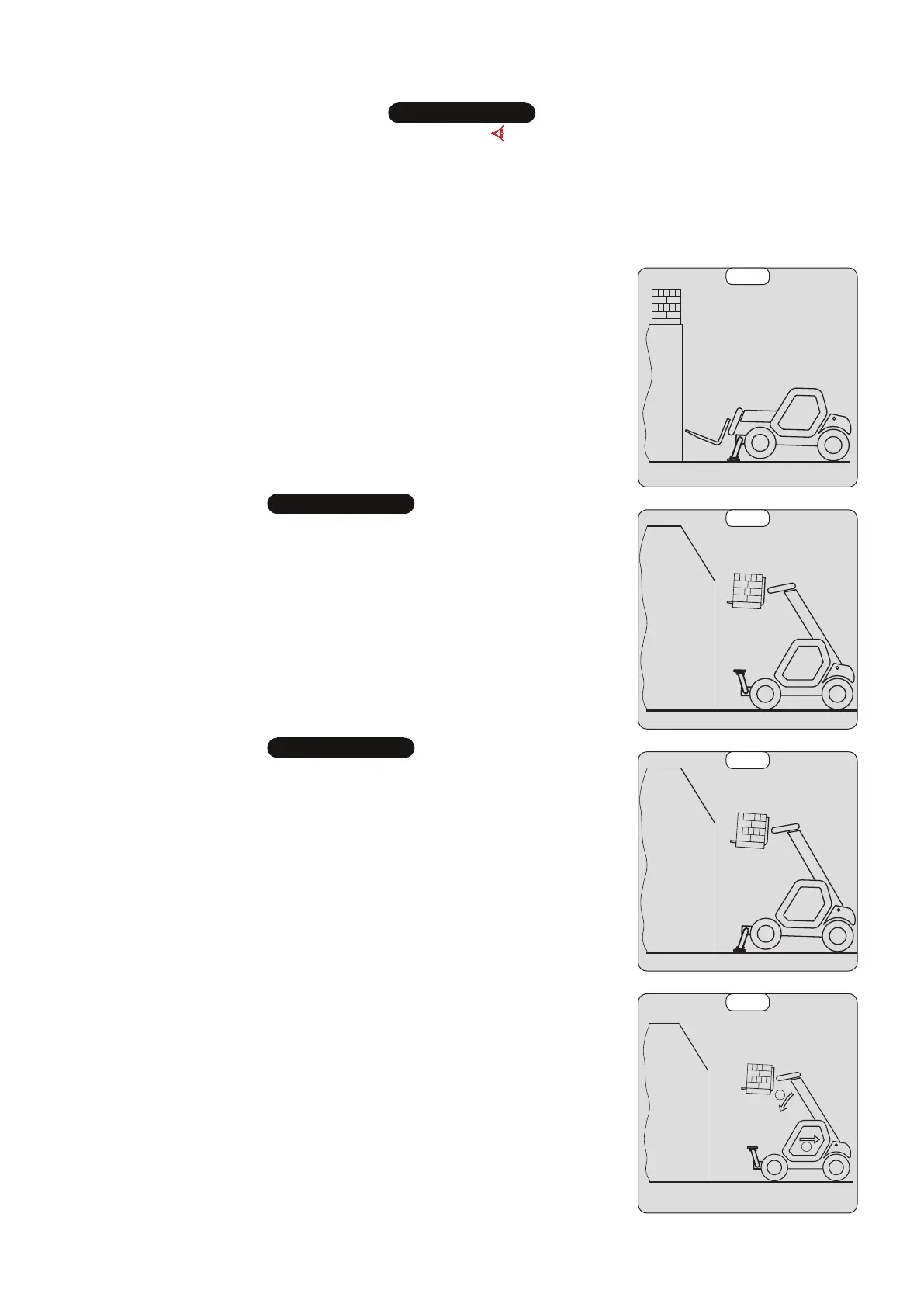

G - TAKING UP AND SETTING DOWN A HIGH LOAD ON STABILISERS
Depending on the model of telehadler
t
IMPORTANT
t
You must not raise the jib if you have not checked the transverse attitude of the telehadler (e INSTRUCTIONS FOR HANDLING A LOAD: D - TRANSVERSE ATTITUDE OF THE
TELEHANDLER).
REMINDER: Make sure that the following operations can be performed with good visibility (e OPERATION INSTRUCTIONS
UNLADEN AND LADEN: D - VISIBILITY)
The stabilisers are used to optimise the telehadler's lifting performance (
e 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS)
POSITIONING THE STABILISERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN
AND LADEN)
- Set the forks in transport position in front of the elevation
- Stay far enough away to have room for the jib to be raised
- Apply the parking brake and place the forward/reverse selector in neutral
- Set the two stabilizers on the ground and lift the two front wheels of the telehadler
(fig G1), while maintaining its transverse stability
RAISING THE STABILISERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND
LADEN)
- Raise both stabilizers fully and at the same time
LOWERING OF STABILISERS WITH JIB UP (UNLADEN AND LADEN)
t
IMPORTANT
t
This operation must be exceptional and performed with great care.
- Raise the jib and retract the telescopes completely
- Set the telehadler in position in front of the elevation (fig G2) moving very slowly
and carefully
- Apply the parking brake and place the forward/reverse selector in neutral
- Move the stabilizers very slowly and gradually as soon as they are close to the
ground or in contact with it
- Lower the two stabilizers and lift the two front wheels of the telehadler (fig G3)
During this operation, transverse attitude must be permanently maintained: the
bubble in the level must be kept between the two lines
SETTING THE STABILISERS WITH THE BOOM UP (UNLADEN AND LADEN)
t
IMPORTANT
t
This operation must be exceptional and performed with great care.
- Keep the jib up and retract the telescopes completely (fig G3)
- Move the stabilisers very slowly and gradually as soon as they are in contact with
the ground and when they leave the ground During this operation, the transverse
attitude must be permanently maintained: the bubble in the level must be kept
between the two lines
- Raise both stabilizers completely
- Release the parking brake and reverse the telehadler (1) very slowly and carefully,
to release it and lower the forks (2) into transport position (fig G4)
G1
G2
G3
1
2
G4
649100 EN-US-AU (20/05/2019)
MLT 961-145 V PLUS L JD ST4 S1
