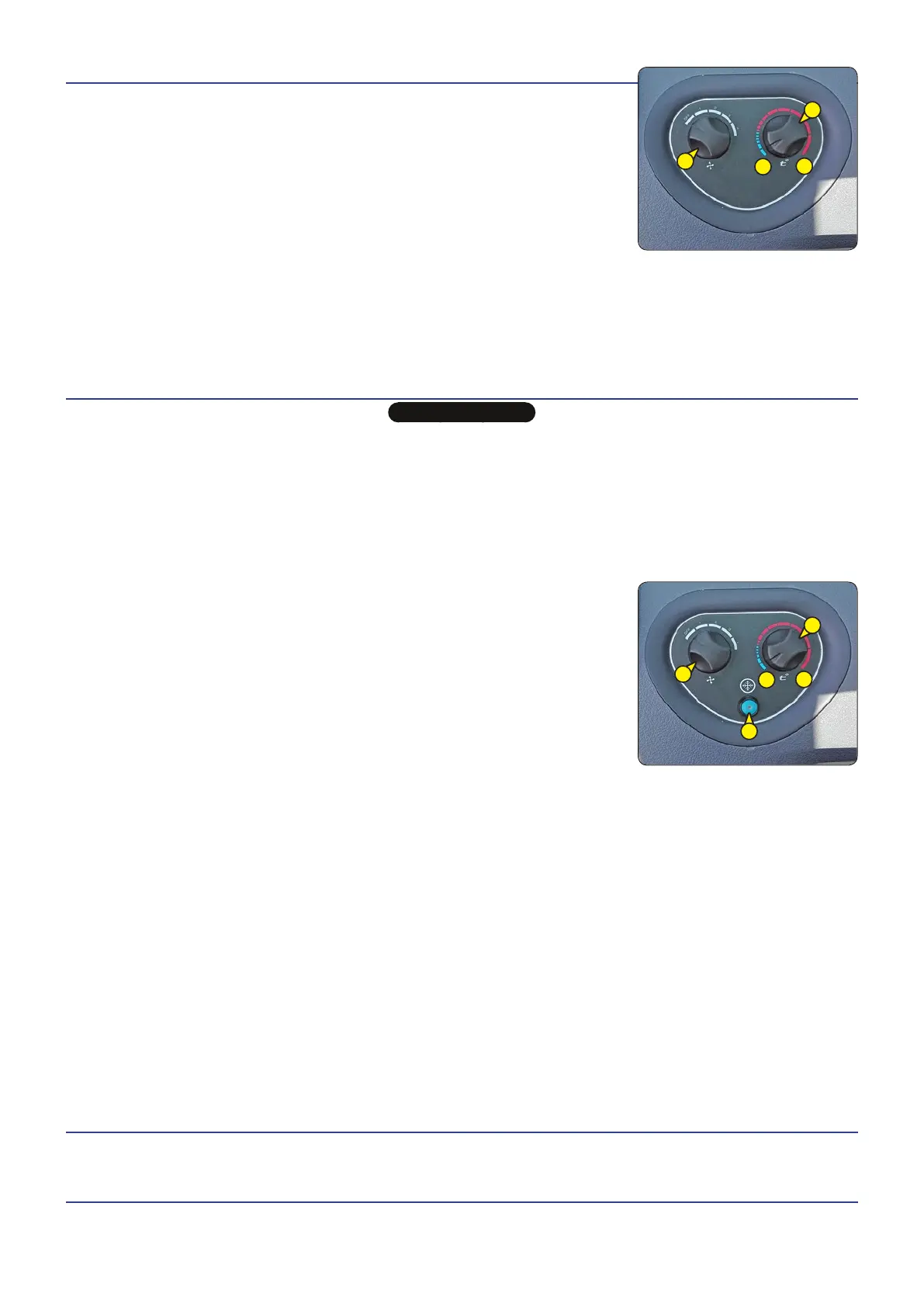

26 - HEATER CONTROL
A - FAN KNOB
This 4-speed control allows the air to be ventilated through the air vents.
B - TEMPERATURE ADJUSTMENT KNOB
Adjusts the temperature inside the cab.
• B1 - The fan pumps in the air at ambient temperature.
• B2 - The fan pumps in warm air.
Middle positions are used to adjust the temperature.
27 - AIR CONDITIONING CONTROLS (AIR CONDITIONING OPTION)
t
IMPORTANT
t
The air conditioning only works if the telehandler has been started up.
When using your air conditioning unit you must work with the cab closed.
In winter: So as to ensure correct operation and complete efficiency of the air conditioning unit, start up the compressor once a week, if only for a short spell, so as to
lubricate the internal seals.
In cold weather: warm the engine before activating the compressor. This allows the liquid coolant, which was collected at the lowest point of the compressor circuit, to turn
into gas due to the effect of the heat generated by the engine. Liquid coolant may damage the compressor.
If the air conditioning is not operating correctly, have it checked by the dealer (e: 3 - MAINTENANCE: F - EVERY 2000 HOURS OF SERVICE).
Never try to repair any fault on your own.
A - FAN KNOB
This 4-speed control allows the air to be ventilated through the air vents.
B - TEMPERATURE ADJUSTMENT KNOB
Adjusts the temperature inside the cab.
•
B1 - The fan pumps in cold air.
• B2 - The fan pumps in warm air.
Middle positions are used to adjust the temperature.
C - AIR CONDITIONING CONTROL
This control with a pilot light allows the air conditioning unit to be switched on.
HEATING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light off.
• B - On the desired temperature.
• A - At the desired speed: 1, 2 or 3.
AIR CONDITIONING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light on.
• B - On the desired temperature.
• A - At the desired speed: 1, 2 or 3.
DEMISTING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light on.
• B - On the desired temperature.
• A - At speed 2 or 3.
- For optimum effectiveness, close the heating vents.
28 - HEATING VENTS
These swiveling heating vents, which can be shut off, allow you to direct and adjust the flow inside the cab.
29 - DEMIST VENTS
These vents allow the front windscreen and side windows to be demisted. For optimum efficiency, shut off the heating vents.
A
B
B1
B2
A
B
B1
B2
C
