2 - 43

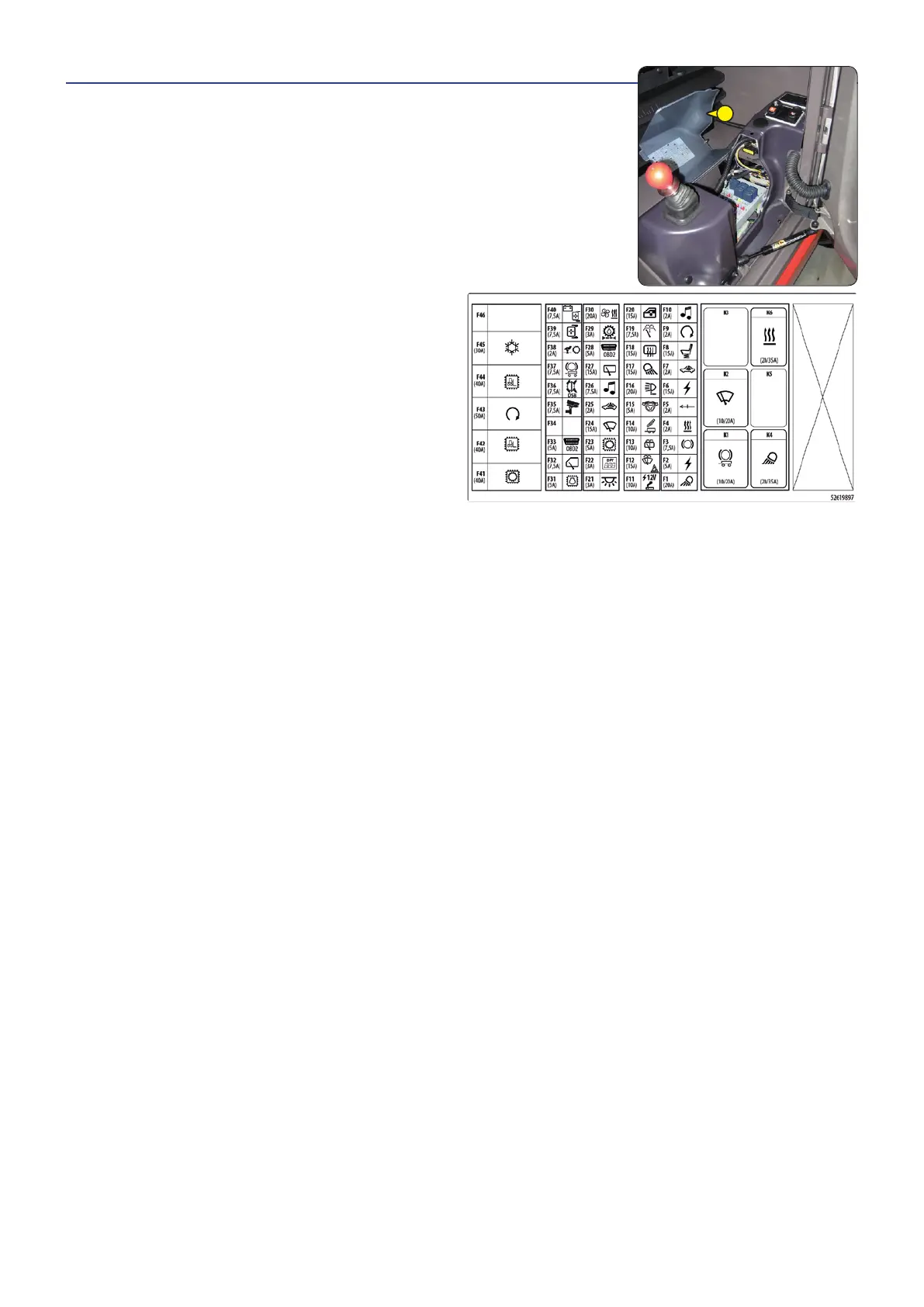

11 - FUSES AND RELAYS IN THE CAB
A sticker on the inside of the access panel provides a quick indication of the use of the
fuse plate's components described below.
- Remove access door 1 to access the fuses and relays. Replace a used fuse with a
new fuse with the same quality and rating. Never reuse a repaired fuse.
RELAYS
• K1 Pneumatic trailer brake relay
• K2 Front windscreen wiper relay
• K3 Free
• K4 Front working headlight relay
• K5 Free
• K6 Ventilation/heating relay
MINIFUSE
• F1 Xenon front working headlight/front working
headlight relay
• F2 Boom head solenoid valve power supply
• F3 Pneumatic braking solenoid valve power
supply
• F4 Ventilation/heating relay coil
• F5 Anti-rollover system disable control power
supply
•
• F6 Boom head electrical socket control power
supply
•
• F7 Alarm system + immobilizer option
• F8 Pneumatic seat
• F9 Key switch position 1 (on dashboard)
• F10 Car radio
• F11 12V socket/optional cigarette lighter
• F12 Front windscreen wiper + front windscreen washer spray nozzle + timer relay
• F13 Rear windscreen wiper + rear windscreen washer spray nozzle
• F14 Option control/2nd rear option power supply
• F15 CSS control power supply
• F16 Boom working headlight control + cabin option control power supply
• F17 Rear working headlight control power supply
• F18 Rear window defrosting control power supply
• F19 Roof windscreen wiper + windscreen washer spray nozzle
• F20 Power windows
• F21 Ceiling light - door closed contact - operator on driving seat contact
• F22 Dashboard power supply
• F23 Transmission control unit
• F24 Automatic return front windscreen wiper motor
• F25 Alarm system
• F26 Car radio
• F27 Automatic return roof + side windscreen wiper motor
• F28 Diagnostics socket
• F29 Hydraulic pump filter
• F30 Ventilation/heating relay power
• F31 Engine control unit
• F32 Side windscreen wiper + windscreen washer spray nozzle
• F33 OBD2 diagnostics socket
• F34 Free
• F35 Camera setup power supply
• F36 ACTIA control unit (optional) power supply coupled to the automated hydraulic function system and the
Semi-automatic wheel alignment system (DSB)
• F37 Trailer brake test control power supply
• F38 Transmission emergency stop
• F39 Electric mirror power supply
• F40 Electric mirror power supply + battery
MAXIFUSES
• F41 Transmission control unit
• F42 MP2 electronic control unit
• F43 Key switch
• F44 MP1 electronic control unit
• F45 Air conditioning compressor and motor fan
• F46 Free
