5 - BATTERY
6 - BATTERY CUT-OFF
For quickly disconnecting the battery when working on the electrical circuit or when
welding, for example.
t
IMPORTANT
t
Operate the battery cut-out no less than 30 seconds after having switched off the ignition with the ignition key.
4 - EMERGENCY STOP BUTTON
t
IMPORTANT
t
Warning, hydraulic movements suddenly stop when using this button.
If possible, stop the telehandler before using the emergency stop.
- Turn the button to disable it.
2 - SEAT BELT
t
IMPORTANT
t
In no event should the telehandler be used if the seat belt is defective (fixing, locking, cuts, tears, etc.).
Repair or replace the seat belt immediately.
- Sit correctly on the seat.
- Check that seat belt is not twisted.
- Place the seat belt at hip level.
- Attach the seat belt and check that it locks.
- Adjust the seat belt to your body shape without squeezing your hip and without over-slack.

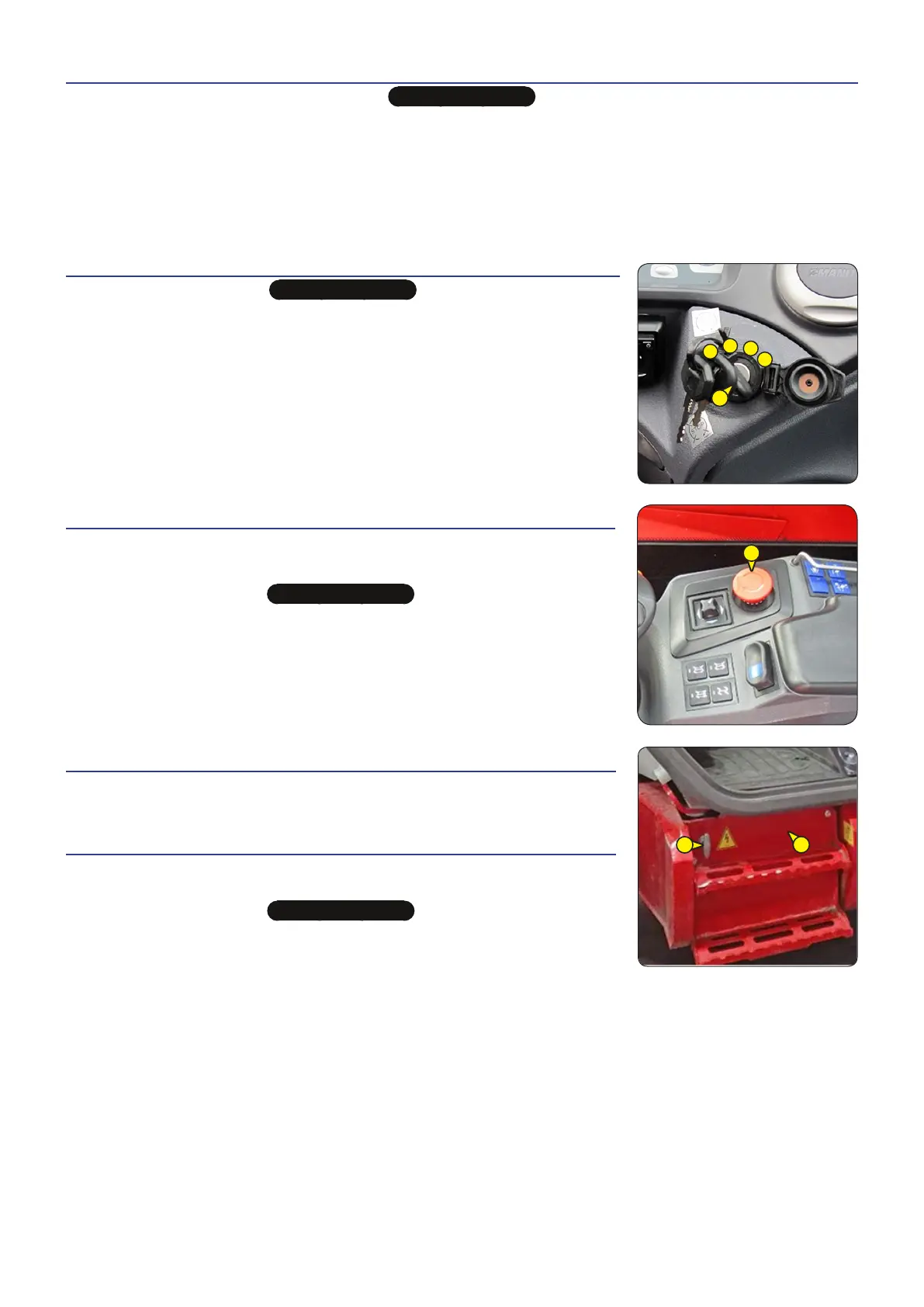

3 - IGNITION SWITCH
t
IMPORTANT
t
THE I.C. engine can be started only if the operator is sitting on the driver's seat.
The switch has 5 positions:
•
P - Not used.
• O - Breaking electrical contact, I.C. engine turns off.
• I - Electrical contact + pre-heating.
• II - Not used.
• III - Start and return to position I as soon as the key is released.
6
3
0
I
II
III
4
5
