2 - 40

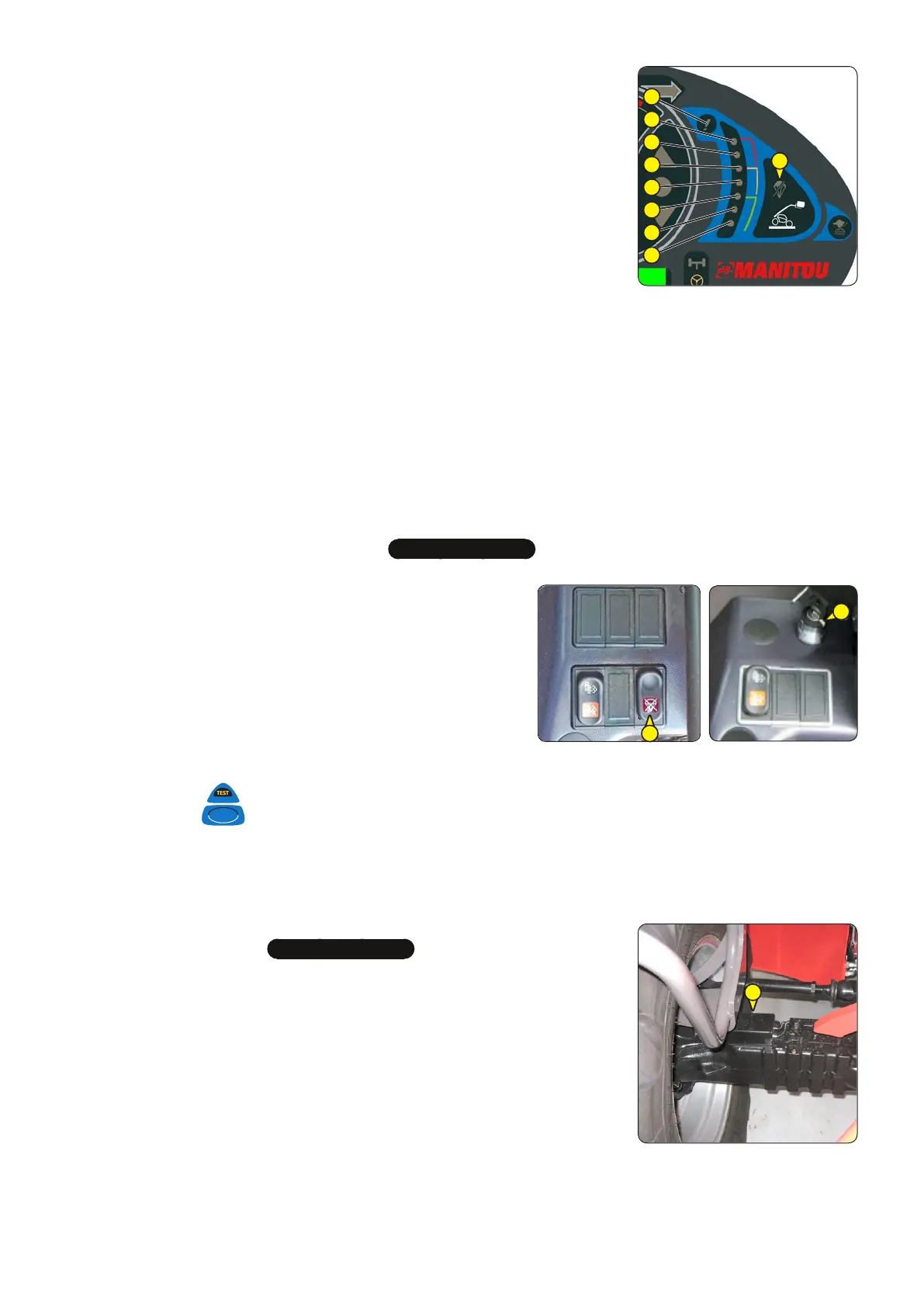

A - VISUAL ALARMS
• A1 - A2 - A3: the longitudinal stability reserve is significant.
• A4 - A5: The telehandler is approaching the limit of longitudinal stability, move
with care.
• A6: The telehandler is close to the limit for longitudinal stability. Drive carefully.
• A7: The telehandler is very close to the limit of longitudinal stability. Manoeuvre
with extreme caution.
• A8: The telehandler is at the authorised limit of longitudinal stability.
B - HYDRAULIC MOVEMENT CUT-OFF
“HANDLING” MODE
•
A8: all “AGGRAVATING” hydraulic movements are stopped. Only perform de-aggravating hydraulic movements in the
following order: retract and raise the boom.
"BUCKET" MODE
•
A8: The boom lowering and extension movements are cut-off, the other movements remain available.
“SUSPENDED LOAD” MODE
•
A8: All “AGGRAVATING” and boom raising hydraulic movements are cut off. Only the boom retraction hydraulic
movement is available.
C -
DISABLING “AGGRAVATING” HYDRAULIC MOVEMENT CUT-OFF
According to equipment (C1 or C2)
t
IMPORTANT
t
Be extremely alert during this manoeuvre: the operator is guided exclusively by the dynamic stability of the telehandler.
Authorization of this function can be configured from the OPT menu in
the menu screen.
In some cases, to get out of a delicate situation, the operator can bypass
this safety feature. Selector C1 and C2 temporarily disables the cut-off of
“AGGRAVATING” hydraulic movements.
- Keep pressed or rotated the selector C1 or C2 (timer of 60 seconds),
indicator lamp A9 lamp will light, and at the same time perform the
necessary “AGGRAVATING” hydraulic movement with extreme care.
D - TESTING OF THE LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
- Short press the
button to verify at any time that the signalling device and longitudinal stability limiter alarm is
working.
• Correct operation: All the LEDs A1 to A8 light for two seconds and an audible beep is sounded.
NOTE:
This test does not allow checking proper adjustment of the longitudinal stability limiter that must be checked every
day or every 10 hours of operation (e: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS OF SERVICE).
E - STRAIN GAUGE
t
IMPORTANT
t
Disassembly or calibration of the strain gauge is prohibited, this must only be done by specially trained personnel,
consult your dealer.
A8
A7
A6
A5
A4
A3
A2
A1
E
A9
C1
C2
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
