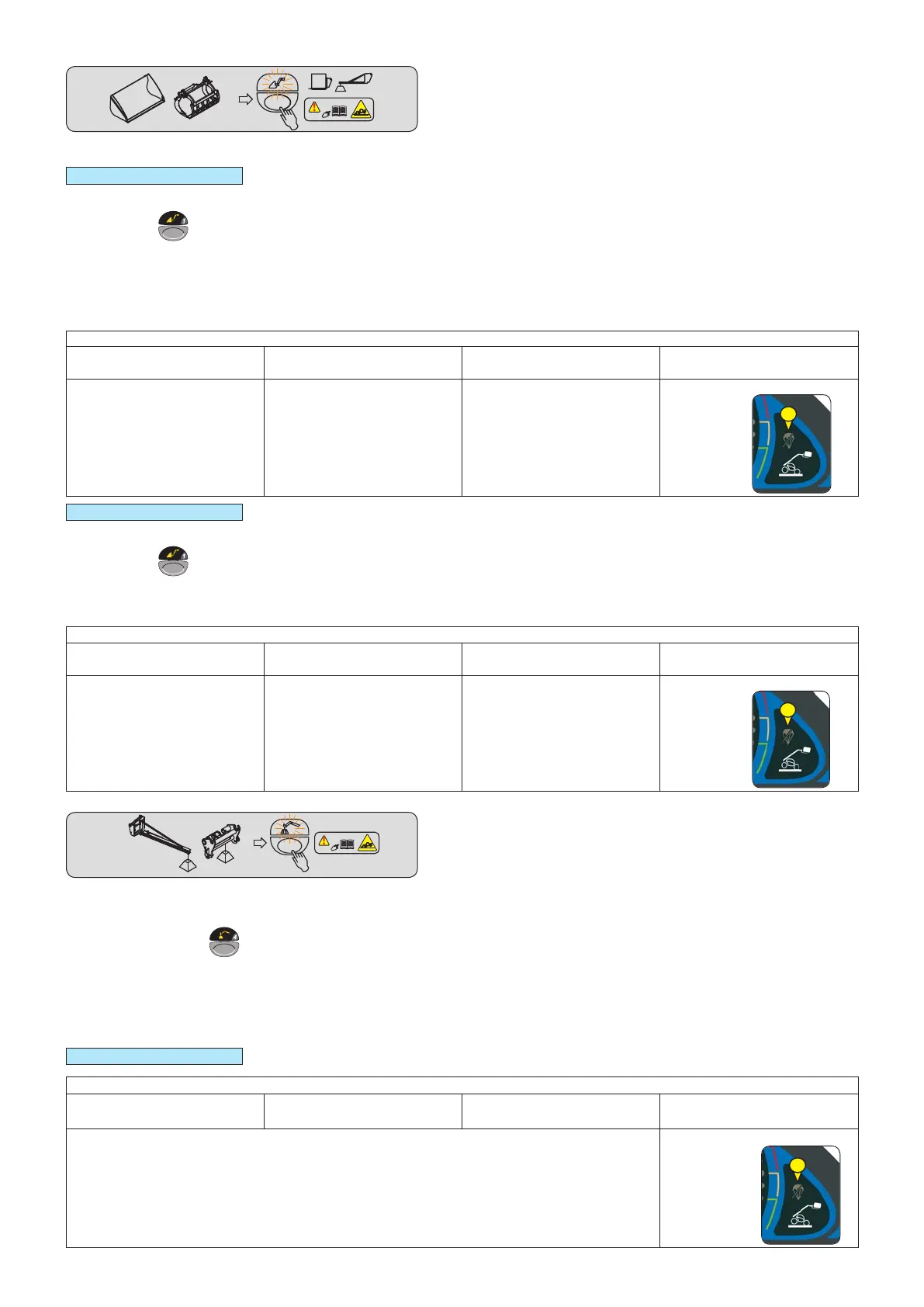

"BUCKET" MODE
USE WITH BUCKET
SETTING 1
- Place the telehandler in the transport position.
- Press the button, "BUCKET" MODE is confirmed by an audible beep and the lighting of the indicator lamp.
- Press this button again to return to "HANDLING” MODE.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom
is retracted and/or the telehandler is moving.
NOTE:
“BUCKET” MODE remains enabled as long as the mode is not changed by the operator, even after switching off the
ignition.
DEVICE STATUS
HALTED SLOW SPEED 1 to 5 km/h SPEED > 5 km/h
TELESCOPIC BOOM(S) IN RETRACTED
POSITION
A6: An audible signal on passing into the red
zone.
A6: An audible signal on passing into the red
zone.
- Warning light A9 lit.
- No sound alarm.
- Warning light A9 lit.
- No sound alarm.
- Warning light A9 lit.
A9
SETTING 2
- Place the telehandler in the transport position.
- Press the button, "BUCKET" MODE is confirmed by an audible beep and the lighting of the indicator lamp.
- Press this button again or switch off the ignition with the ignition key to return to "HANDLING” MODE.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom
is retracted.
DEVICE STATUS
HALTED SLOW SPEED 1 to 5 km/h SPEED > 5 km/h
TELESCOPIC BOOM(S) IN RETRACTED
POSITION
- "BUCKET" mode is disabled if the telehandler
remains stationary.
A6: An audible signal on passing into the red
zone.
- Hydraulic movements are adjusted.
No sound alarm.
- Hydraulic movements are adjusted.
- No sound alarm.
- Warning light A9 lit.
A9
Kg
Kg
“SUSPENDED LOAD” MODE
USE WITH SUPPORT BOOM (provides a higher margin of safety)
- Place the telehandler in the transport position.
- Press the button
, the “SUSPENDED LOAD” MODE is confirmed by a beep and the lighting of the indicator lamp.
Hydraulic tilting movements are disabled, as well as the lifting movement when the longitudinal stability limit is reached
(indicator lamp A8 lit).
- Press this button again or switch off the ignition with the ignition key to return to "HANDLING” MODE.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom
is retracted.
SETTING 1 and 2
DEVICE STATUS
HALTED SLOW SPEED 1 to 5 km/h SPEED > 5 km/h
TELESCOPIC BOOM(S) IN RETRACTED
POSITION
A4-A5: Very slow intermittent sound alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
-No sound alarm.
-Warning light A9 lit.
A9
