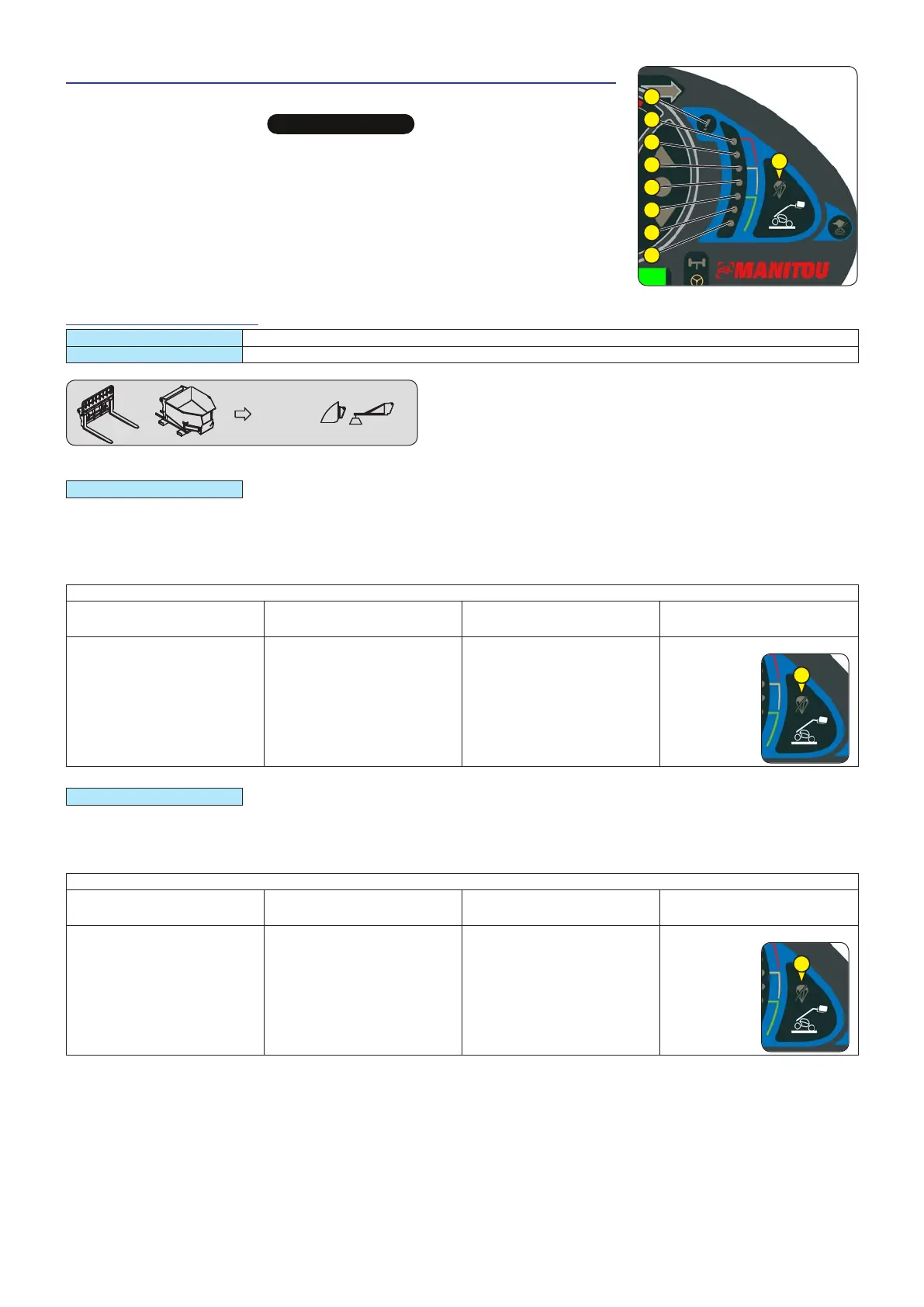

8 - SIGNALLING DEVICE AND LONGITUDINAL STABILITY LIMITER
Depending on the model of telehandler
t
IMPORTANT
t
The operator must respect the telehandler's load chart, and the operating mode according to the attachment.
This device warns the operator of the telehandler's longitudinal stability limits. However
lateral stability may decrease the loading capacity in its top part. This decrease is not
detected by this device.
Depending on the type of work required, the longitudinal stability limiter and warning
device allows the operator to operate the telehandler in complete safety.
IDENTIFICATION OF YOUR SETTINGS
SETTING 1 Warning light A9 is lit when driving.
SETTING 2 "BUCKET" mode is disabled when the telehandler is at a standstill.
STANDARD
MODE
X
kg
X
“HANDLING” MODE
USE ON FORKS
SETTING 1
- By default, the device is in "HANDLING" MODE when the telehandler is started-up, except if "BUCKET" MODE has been
selected before switching off the ignition.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom
is retracted and/or the telehandler is moving.
DEVICE STATUS
HALTED SLOW SPEED 1 to 5 km/h SPEED > 5 km/h
TELESCOPIC BOOM(S) IN RETRACTED
POSITION
A4-A5: Very slow intermittent sound
alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
-Warning light A9 lit.
-No sound alarm.
-Warning light A9 lit.
-No sound alarm.
-Warning light A9 lit.
A9
SETTING 2
- By default, the device is in “HANDLING" MODE each time the telehandler is started.
- Protection against forward tip-over when making aggravating movements is ensured, except when the telescopic boom
is retracted.
DEVICE STATUS
HALTED SLOW SPEED 1 to 5 km/h SPEED > 5 km/h
TELESCOPIC BOOM(S) IN RETRACTED
POSITION
A4-A5: Very slow intermittent sound
alarm.
A6: Slow intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
A7: Fast intermittent sound alarm.
A8: Very fast intermittent sound alarm.
-No sound alarm.
-No sound alarm.
-Warning light A9 lit.
A9
A8
A7
A6
A5
A4
A3
A2
A1
A9
