Manitou MLT 961-145 V PLUS L JD ST4 S1 User Manual

2 - 18
mm in
A 1200 47.24
B 3000 118.11
C 1648 64.88
C1 1511 59.49
D 6106 240.39
D1 5969 235.00
D2 5110 201.18
E 7306 287.64
F 1970 77.56
F1 1970 77.56
G 450 17.72
G1 450 17.72
G2 490 19.29
H 7°
H1 7°
I 1459 57.44
J 995 39.17
L 60 2.36
N 1891 74.45
O 200 7.87
P2 42°
P3 23°
R 4050 159.45
S 8654 340.71
T 4168 164.09
U1 2530 99.61
U2 2670 105.12
V 5492 216.22
V1 1325 52.17
V2 4303 169.41
W 2482 97.72
Y 12°
Z 138°

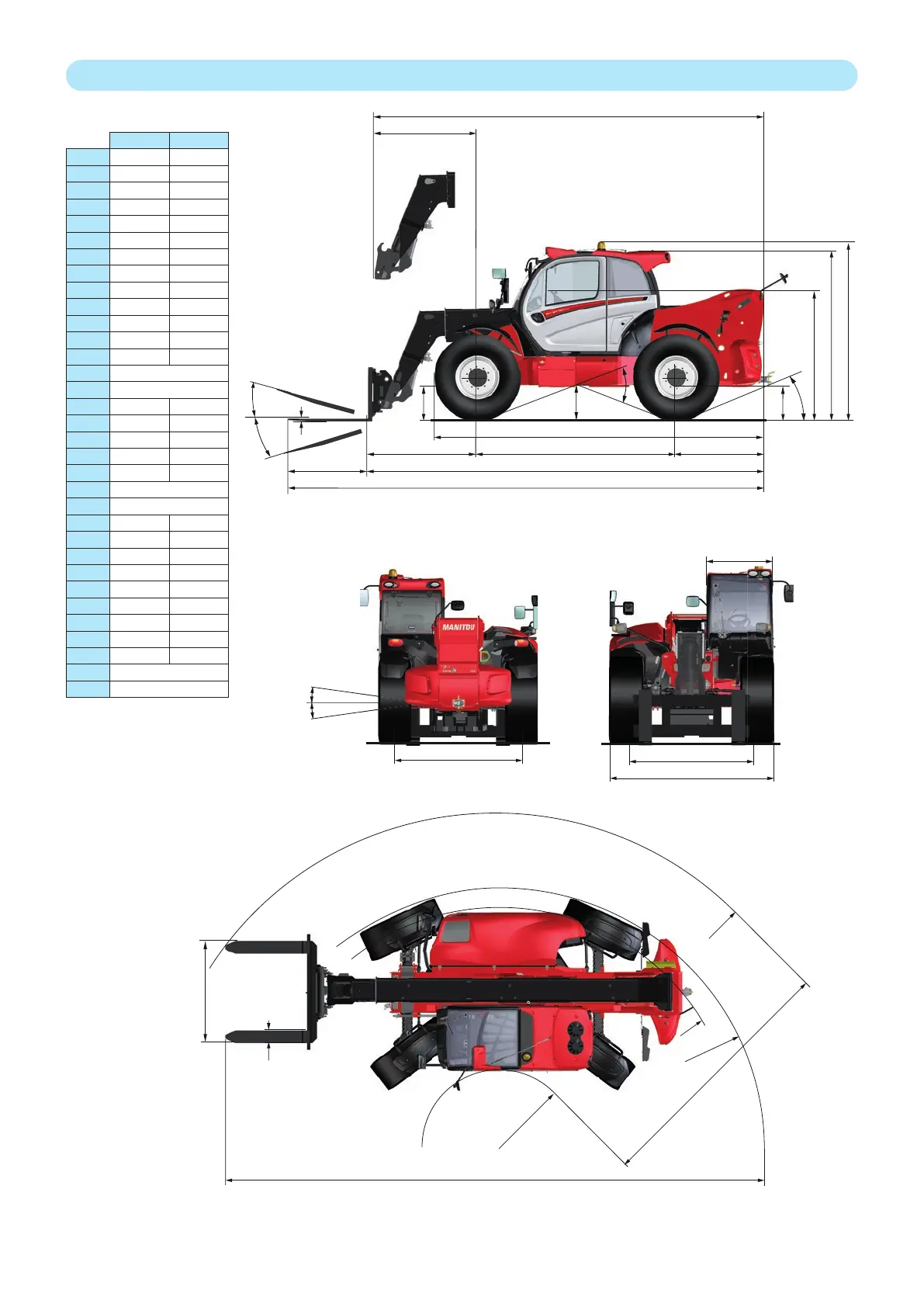

DIMENSIONS
D2
B
G2 G1
P2
D
C
C1
D1
A
E
I
N
G
L
Z
Y
U1
U2
P3
F1
F
W
J
S
V
T
V1
V2
R
O
K
H
H1
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
