Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.3 Rigging work checklists
3 - 22 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

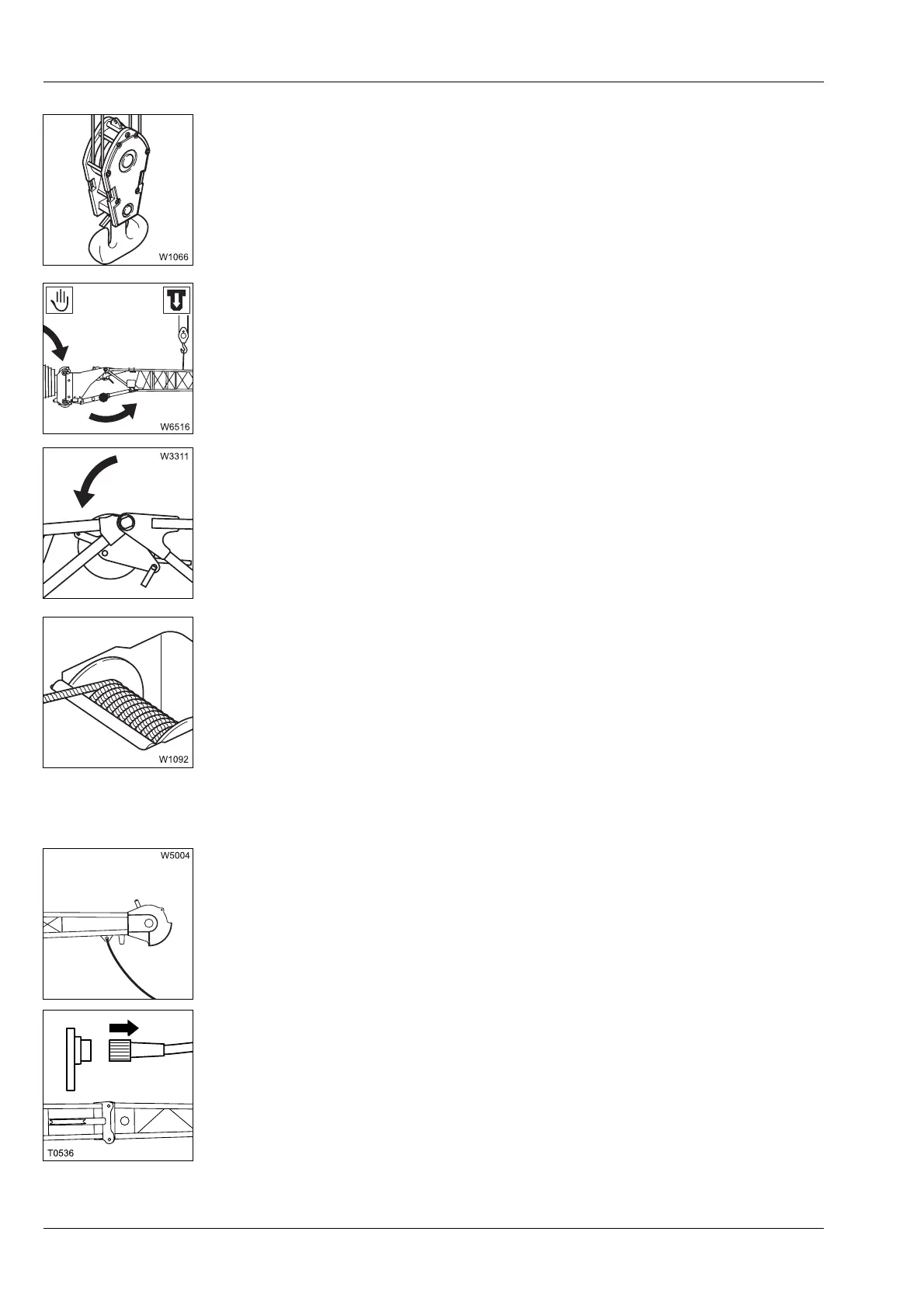

6. Unreeve the hoist rope and remove it from the swing-away lattice;
à p. 3 - 66.
7. Only applies to the inclinable swing-away lattice.
– Set an angle of 0°, if necessary;
à Setting the angle – with an auxiliary crane, p. 3 - 79
à Setting the angle – without auxiliary crane, p. 3 - 80.
8. Fold in the deflection sheaves at the front and rear;
à p. 3 - 65.
9. Remove the hoist rope and reel it up to the main boom head;
à p. 3 - 66.
H
If the 10 m (33 ft) swing-away lattice is rigged – continue with point 16.;
à p. 3 - 23.
10. Fasten the guide rope to the front of section 2.
11. Undo the electrical connection; p. 3 - 63.
