Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 23
GMK 4100/4100-L/5095
11.01.2008

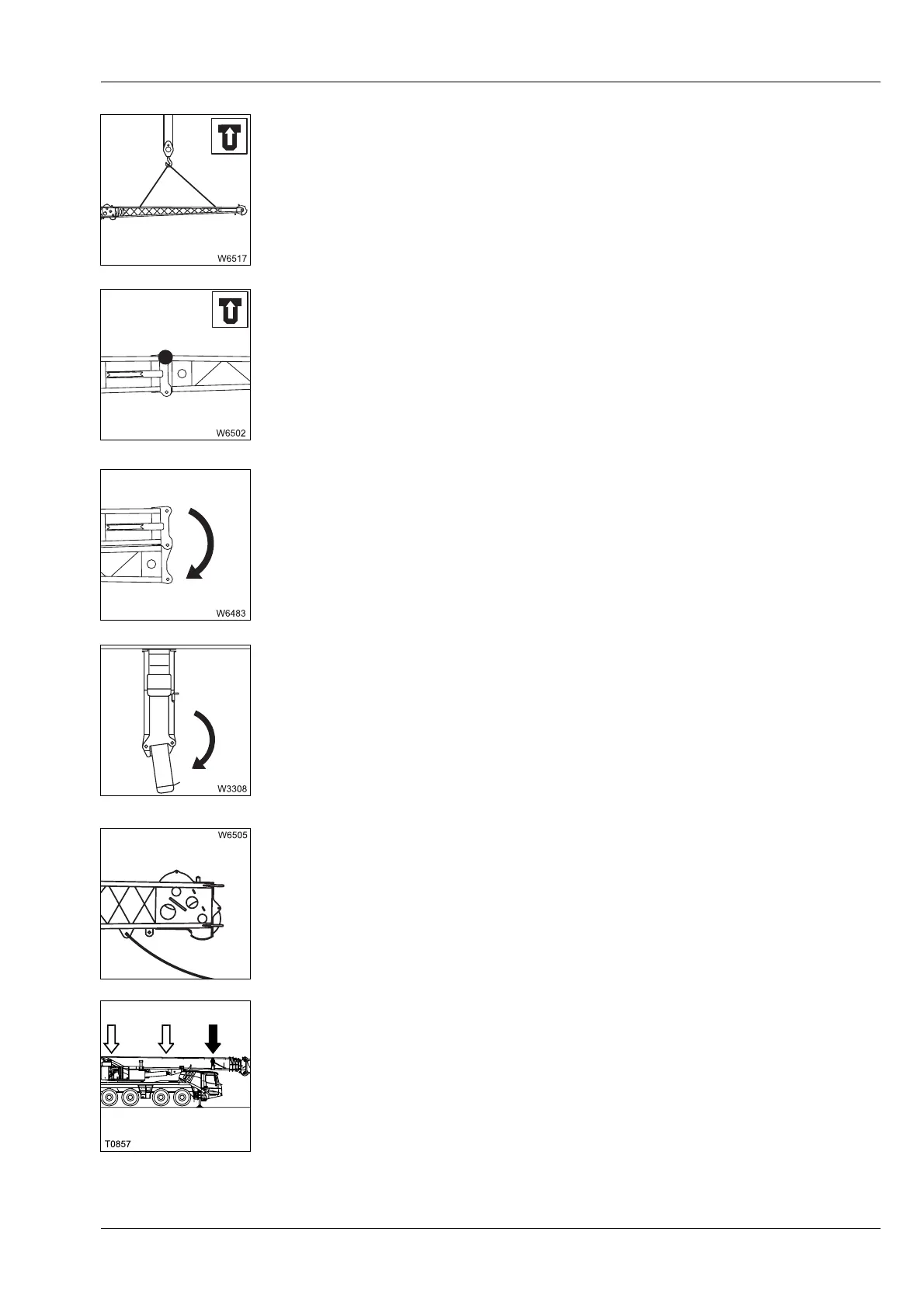

12. If section 2 is to be removed:
– Sling section 2 onto the auxiliary crane;
à Slinging points, p. 2 - 5.
– Remove the locking pins between section 2 and section 1;
à p. 3 - 59.
– Set down section 2 on the separate vehicle.
After removing section 2, continue with point 15.
13. Undo the connection on the left between section 2 and section 1;
à p. 3 - 59.
14. Swing section 2 to the side of section 1 and move the connection in the
Middle area into the Section 1 / section 2 position;
à When unrigging – section 2, p. 3 - 58,
à Section 1 / section 2 position, p. 3 - 42.
15. Fold out the run-up rail;
à p. 3 - 36.
16. Fasten the guide rope to the front of section 1.
17. Move the connection at the
Front area into the Unrigging position;
à p. 3 - 41.
