Grove Published 3-23-2020, Control # 654-04 4-39
GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
Status Area

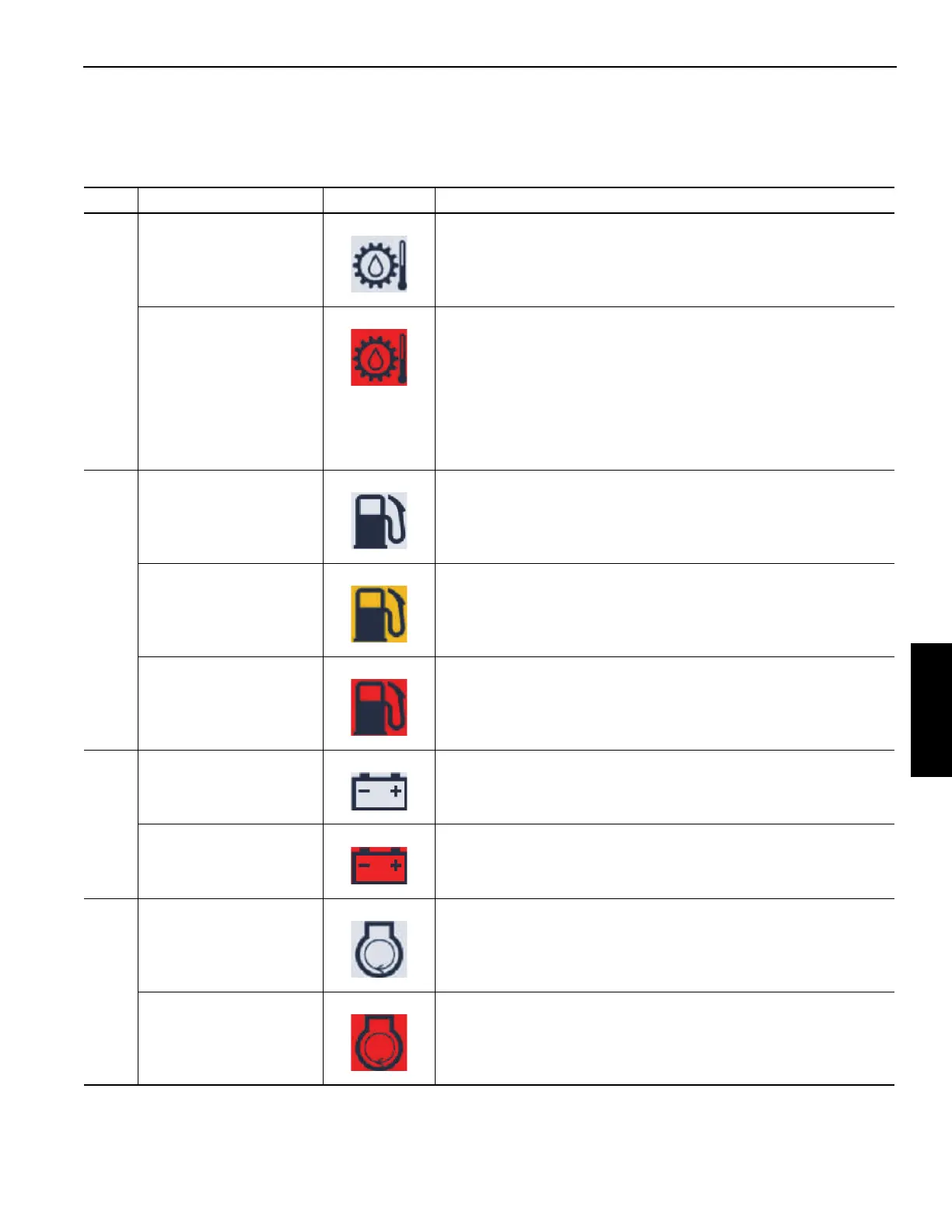

The following are the icons which appear in the Status Area
(1, Figure 4-18 and Figure 4-19) of the ODM Main Screen:
Item Description Graphic Explanation
5
Transmission Oil
Temperature Indicator
Indicates the transmission oil temperature in the selected unit of
measure (°C / °F).
High Transmission Oil
Temperature Indicator
(Red)
Indicates the transmission oil is above 121°C (250°F) and is too
high. When the indicator comes on (red), the warning buzzer will
sound.
When safe to do so, move the crane to a location where it can be
parked and secured, then let transmission oil cool by running engine
at idle.
Red indicator will go off when transmission oil temperature drops
below 115°C (239°F).
6
Fuel Level Indicator Indicates the fuel level as a percentage.
Low Fuel Level
Indicator (Amber)
Indicates the fuel level is between 5% full and 15% full.
Low Fuel Level
Indicator (Red)
Indicates the fuel level is below 5% full.
7
Battery Voltage
Indicator
Indicates the battery voltage when the engine is off and the charging
voltage when the engine is running.
Low Battery Voltage
Indicator (Red)
Indicates the alternator has failed and is not charging the battery.
Stop the engine and correct the malfunction.
8
Engine Speed Indicator Indicates the engine speed in revolutions per minute (RPM).
Engine Over-speed
Indicator (Red)
Indicates the engine speed is above 3750 rpm and is too high.
Apply the service brake to reduce travel speed and engine RPM, or
shift to higher gear.
