Manitowoc Grove GRT655L User Manual

Grove Published 3-23-2020, Control # 654-04 4-55
GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
4
Outrigger Group

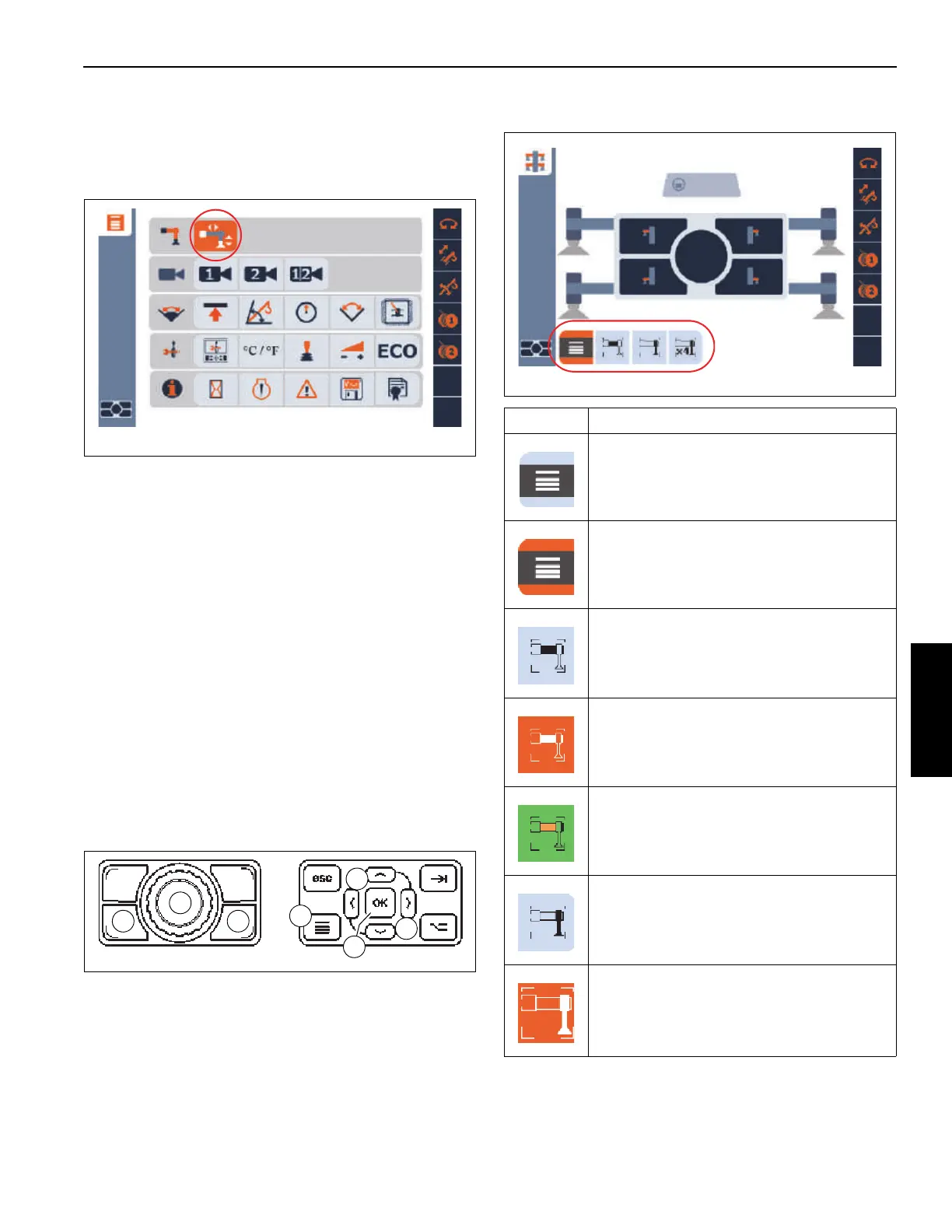

The Outrigger Extend/Retract function icon (Figure 4-22)
under the Outrigger Group is used to extend and retract the
outrigger beams and jacks.
Accessing the Outrigger Extend/Retract Function
Screen
Access the Outrigger Extend/Retract function screen
(Figure 4-24) of the ODM by doing one of the following:
• Press the Screen Toggle Button (1, Figure 4-23) at the
Jog Dial to select the ODM screen control.
Press the Menu Button (2) to go to the Menu Screen.
Using the Jog Dial (3), select the Outrigger
Extend/Retract function icon (Figure 4-22), then press
the Jog Dial (3).
- or -
• Press the Menu Button (4, Figure 4-23) on the
Navigation Control Pad at the ODM to go to the Menu
Screen.
Using the Arrow Buttons (5), select the Outrigger
Extend/Retract function icon (Figure 4-22), then press
the OK Button (6).
The Outrigger Extend/Retract function screen will appear:
FIGURE 4-22
9219
FIGURE 4-23
12
3
4
5
6
5
Icon Description
Menu Screen icon - not selected
Menu Screen icon - selected
O/R Beams icon - not selected
O/R Beams icon - selected
O/R Beams icon - active
O/R Jacks icon - not selected
O/R Jacks icon - selected
FIGURE 4-24
9219
