Grove Published 3-23-2020, Control # 654-04 4-59
GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
4
Exiting the Outrigger Extend/Retract Function Screen
Exit the Outrigger Extend/Retract function screen of the
ODM by doing one of the following:
• Press the Screen Toggle Button (1, Figure 4-31) at the
Jog Dial to select the ODM screen control.
Using the Jog Dial (2), select the Menu icon
(Figure 4-32) (icon will turn orange), then press the Jog
Dial (2).
- or -
• Using the Arrow Buttons (3, Figure 4-31), select the
Menu icon (Figure 4-32) (icon will turn orange), then
press the OK Button (4).
Camera Group (Optional)
The Camera Group is made up of three camera function
icons (Figure 4-33):
• Camera View 1 (Hoist) icon
• Camera View 2 (Right Side) icon
• Camera Views 1/2 (Hoist and Right Side) icon
These camera function icons are used to set which camera
view is displayed on the Main Screen of the ODM.

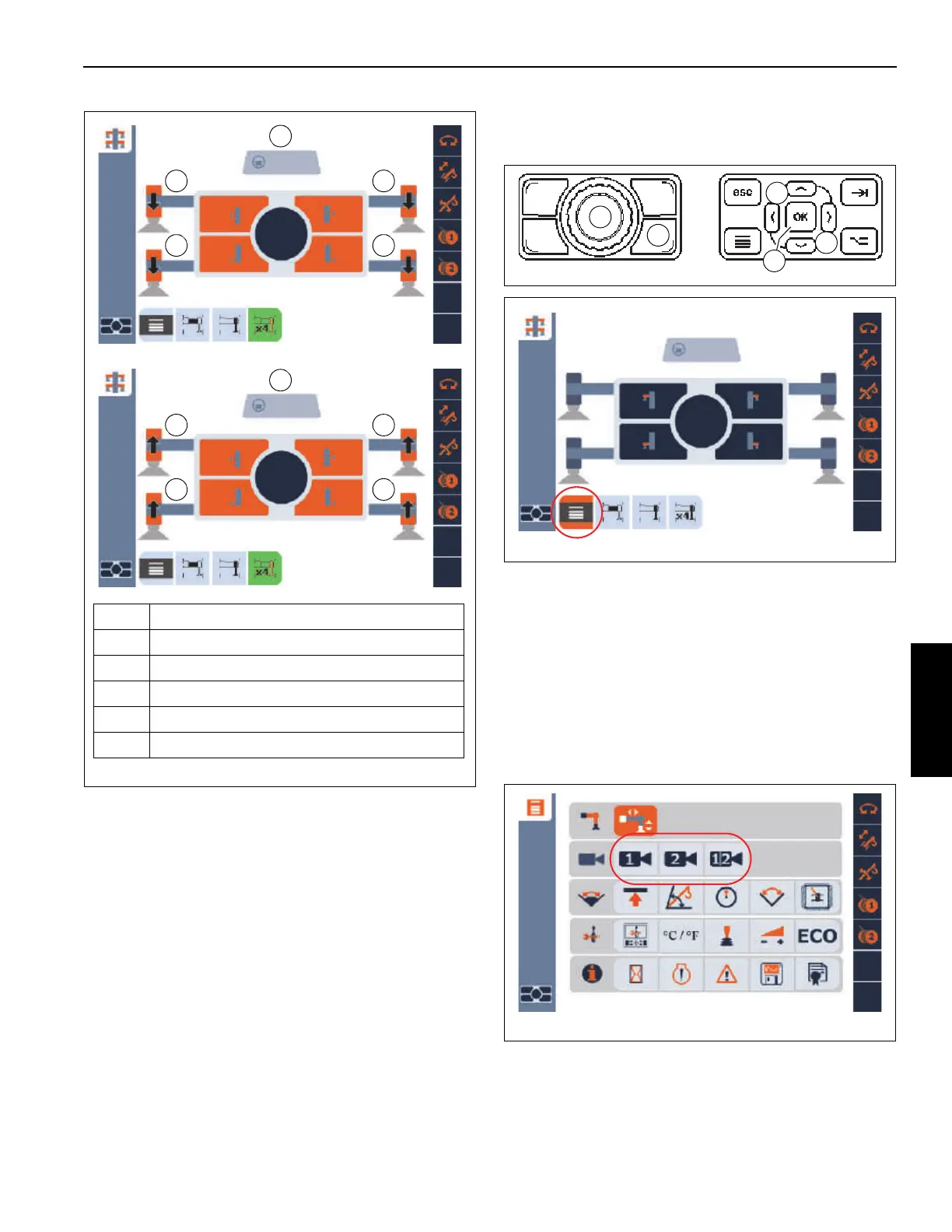

FIGURE 4-30
Item Description
1 Left-Front Jack
2 Right-Front Jack
3 Left-Rear Jack
4 Right-Rear Jack
5 Steering Wheel (indicates front of crane)
1 2
3 4
5
1 2
3 4
5
9219
9219
FIGURE 4-31
1
2
3
4
3
FIGURE 4-32
9219
FIGURE 4-33
9219
