GRT655/655L OPERATOR MANUAL LUBRICATION AND MAINTENANCE
6
Item
Lube Point
Description
Figure
No.
Approved
Lubricant
Lube
Capacity
Lube Interval Application
Steering and Suspension
20
Steer Cylinder
Pivot Pins
Figure 6-5 A
Until grease
extrudes
500 hours or 3 months 8 grease fittings
21
Upper and Lower
King Pins
Figure 6-5 A
Until grease
extrudes
500 hours or 3 months 8 grease fittings
22
Tie Rod Pivot
Pins
Figure 6-5 A
Until grease
extrudes
500 hours or 3 months 4 grease fittings
23
Lockout Cylinder
Pivot Pins
Figure 6-5 A
Until grease
extrudes
500 hours or 3 months 4 grease fittings

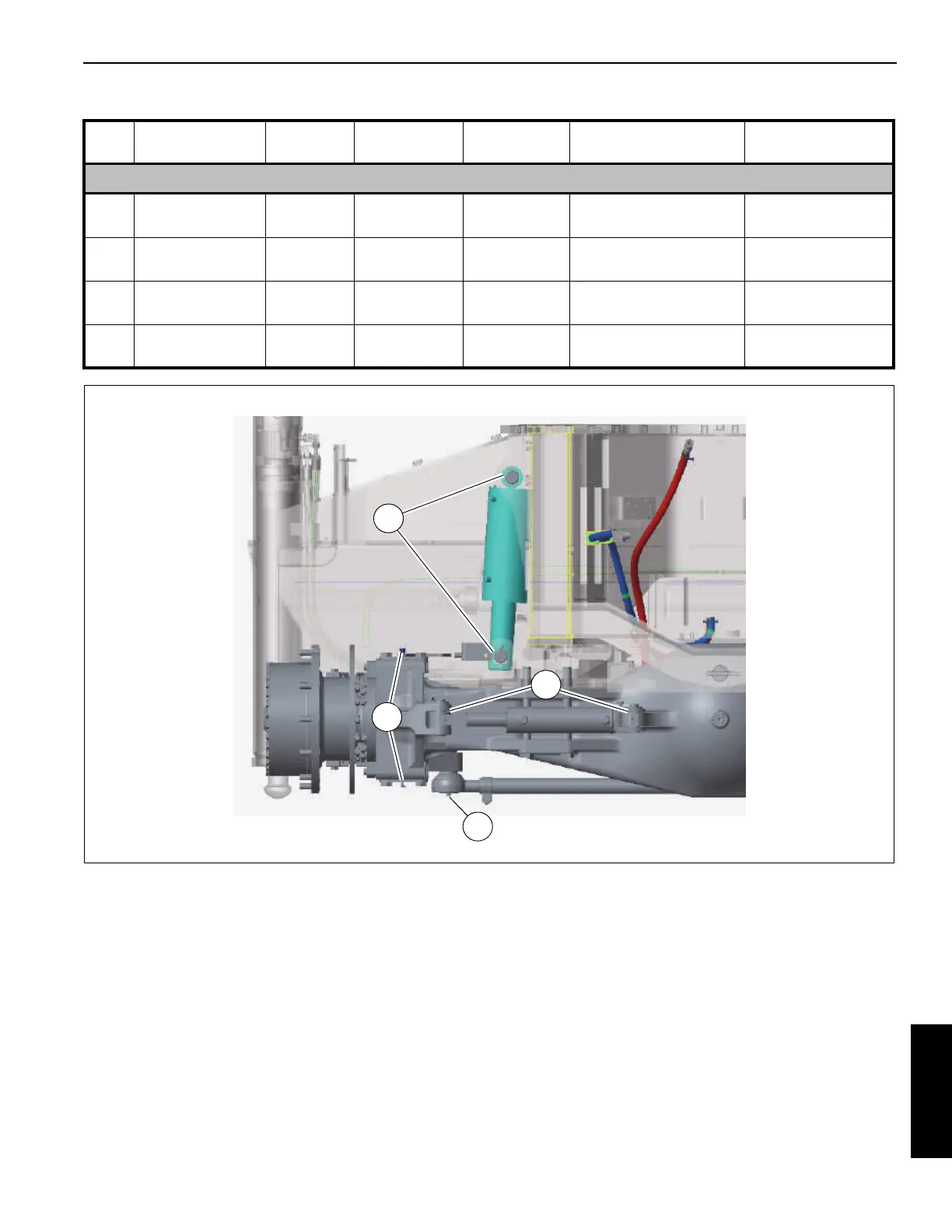

FIGURE 6-5
23
22
21
20
9030-4
