Manitowoc Grove GRT655L User Manual

Grove Published 3-23-2020, Control # 654-04 3-11
GRT655/655L OPERATOR MANUAL OPERATING CONTROLS
3

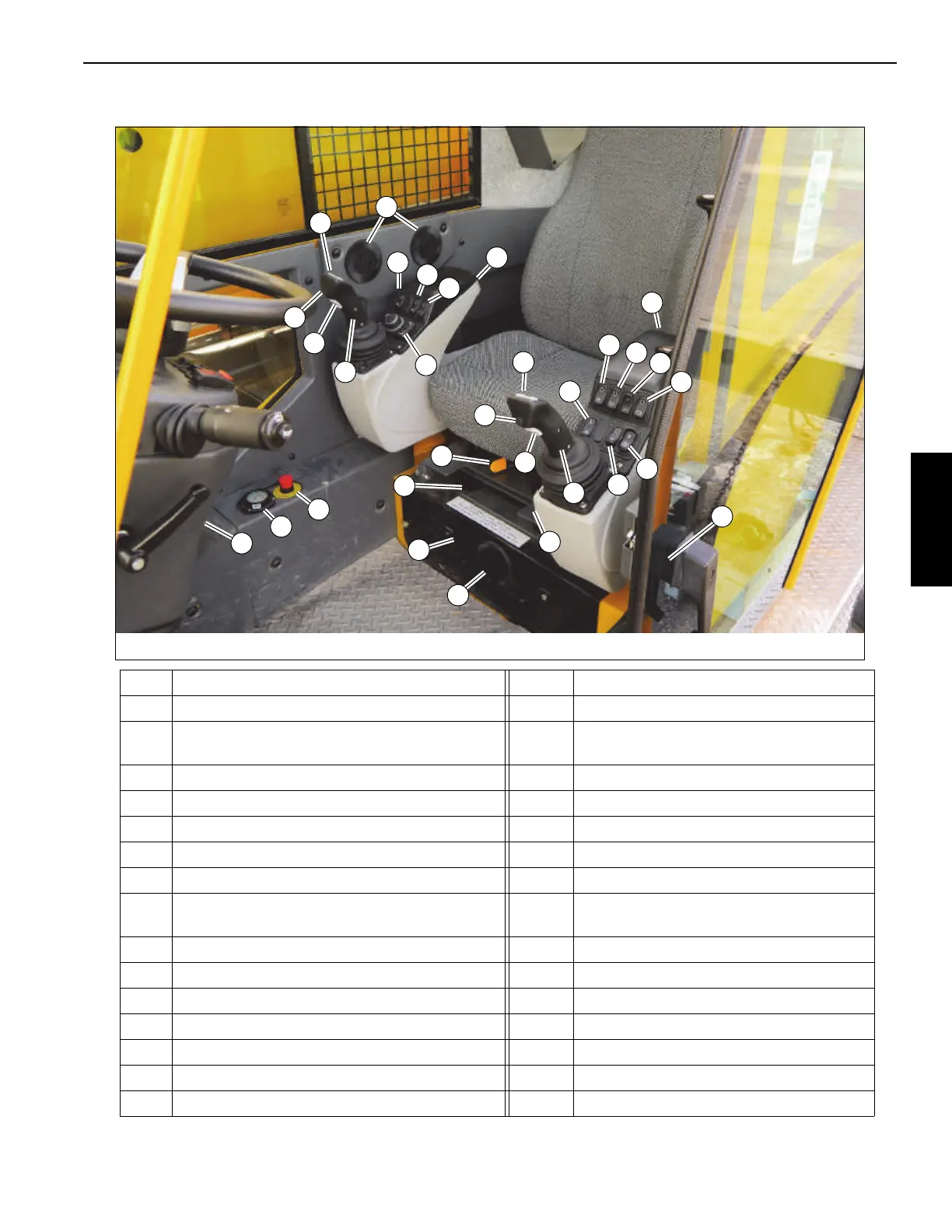

CONTROL SEAT ASSEMBLY
Item Description Item Description
1
Boom Lift/Main Hoist Controller
16 AC/Heater Vents
2
Swing/Telescope or Swing/Auxiliary Hoist
Controller
17 Seat Frame Slide Lever
3 Main Hoist Enable/Disable Switch 18 Armrest Adjustment Button (Underside)
4 Boom Up Bypass Switch 19 Seat Height Adjustment Lever
5 Boom Lift Enable/Disable Switch 20 Limit Bypass Switch - Keyed
6 Jog Dial 21 Emergency Stop Switch
7
Outrigger Extend/Retract Switch 22 Level Indicator
8
Differential Lock On/Off Switch (Optional) 23
Deadman Switches (Optional) (Dual Axis
Controllers only)
9 Rear Steer Switch 24 Hoist Speed Toggle Switches
10 Auxiliary Hoist Enable/Disable Switch (Optional) 25 Horn Button
11 Boom Telescope Enable/Disable Switch 26
Free Swing Button
12 Cab Tilt Switch 27 Cab Door Release Lever
13 Swing Enable/Disable Switch 28 Hoist Rotation Indicators (Not Shown)
14 Seat Slide Lever 29 Seat Switch (Not Shown)
15 AC/Heater Climate Unit
FIGURE 3-8
8044-2
5
3
9
6
27
17
14
19
13
16
15
17
18
20
22
21
7
1
2
8
10
23
22
25
26
24
23
4
11
12
3
9
6
27
17
14
19
13
16
15
18
18
20
22
21
7
1
2
8
10
24
23
25
26
24
23
4
11
12
5
16
FIGURE 3-8
9232
