Grove Published 3-23-2020, Control # 654-04 4-67
GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
4
Accessing a WRL Limitation Screen
The WRL Group is made up of five WRL function icons. To
enable and define a limitation, access the related WRL
function icon in the WRL Group (Figure 4-42).
• Boom Height Limit icon
(refer to Setting the Boom Height Limitation, page 4-68)
• Boom Angle Limit icon
(refer to Setting the Boom Angle Limitation, page 4-71)
• Radius Limit icon
(refer to Setting the Radius Limitation, page 4-74)
• Swing Angle Limit icon
(refer to Setting the Swing Angle Limitation, page 4-77)
• Virtual Wall Limit icon
(refer to Setting a Virtual Wall Limitation, page 4-80

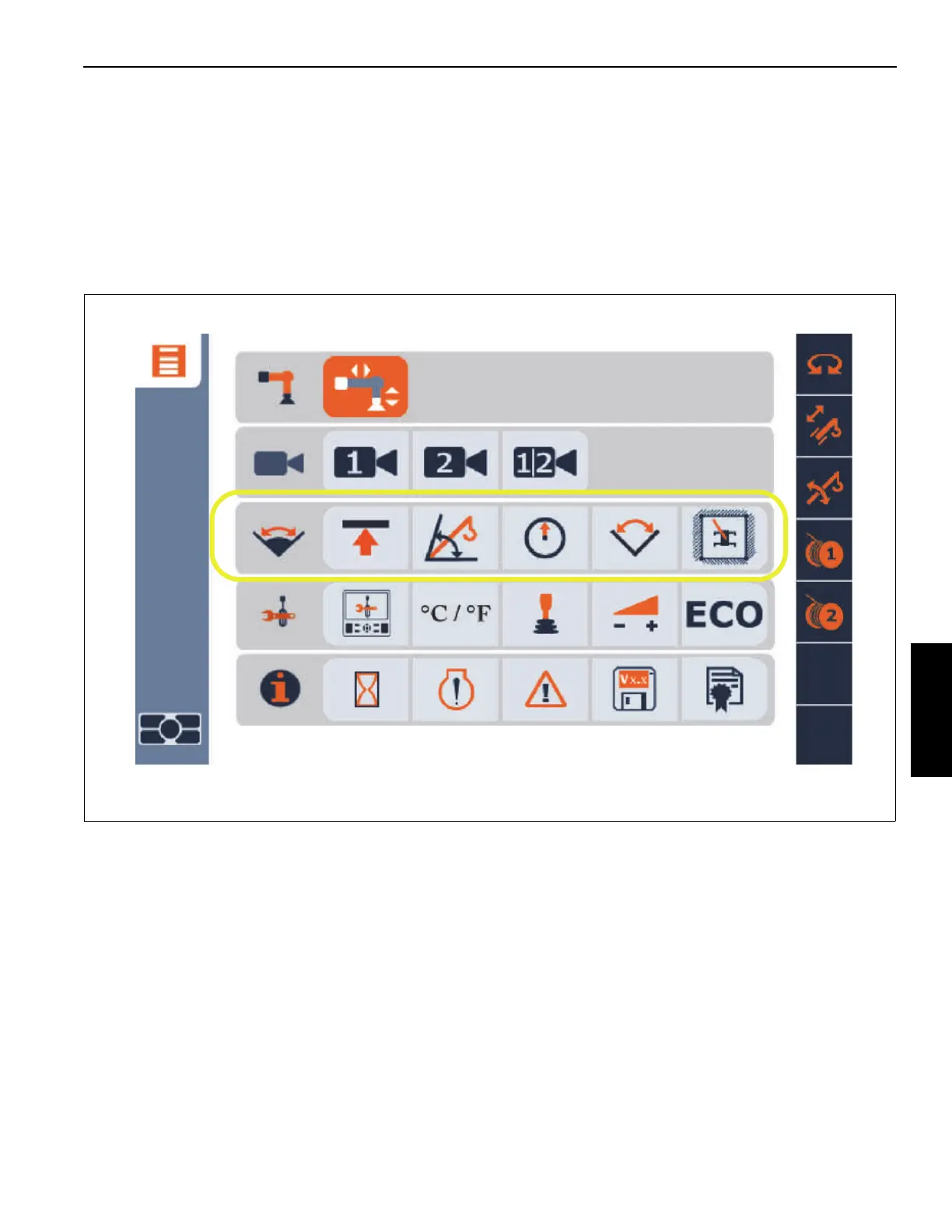

FIGURE 4-42
ODM Menu Screen with WRL sub-menu highlighted
9219
